10-103 ELECTRIC LIFT KIT PARTS LIST
REF# PART# DESCRIPTION QUANTITY
1* HCPS-12-225 Stainless Steel Clevis Pin 1 /
2
x 2 1 /
4
4
HPS-18-100 Stainless Steel Cotter Pin 1 /
8
x 1 4
2* 33-295 Pivot Bracket 2
3 10-319 Actuator Cover 2
5 11-158 Linear actuator 2
11-158-01 Seal Kit 1 per
6* 33-331 Left Actuator Bracket 1
7* 33-330 Right Actuator Bracket 1
8* 15-561 Boom Lift 2
15-014 Shift Knob 2
HB-38-16-175 Bolt 3 /
8
- 16 x 1 3 /
4
2
HN-38-16 Nut 3 /
8
- 16 2
9* HSSQ-38-16-150 Square Head Set Screw 3 /
8
- 16 x 1 1 /
2
2
HN-38-16 Nut 3 /
8
- 16 2
10* 33-329 Center Mount 1
* Part of 10-160 Boom
INSTALLATION INSTRUCTIONS
Remove Boom Lift (Ref 8) from boom and replace with the Linear Actuators (Ref 5). Use the existing hardware.
Refer to the wiring diagram below to hook up the wire harness. The switches mount in the seat panel on the right
side. Refer to the decal for correct placement. Use the 14
1 /
2
Nylon Ties to bind wire harness to main frame so
that it does not drag.
Use dielectric grease on all electrical connections.
10-103 ELECTRIC LIFT WIRING PARTS LIST
PART# DESCRIPTION QUANTITY
8853 Slide on Connectors 2
8963 1 /
4
" Heat Shrink 2
15-472 Switch Boot 2
11-158 Linear Actuator with 4" stroke 2
16-755 Switch 2
16-810 Wiring Harness 1
22-075 Nylon Tie 14 1 /
2
12
33-272 Fuse 20 amp 1

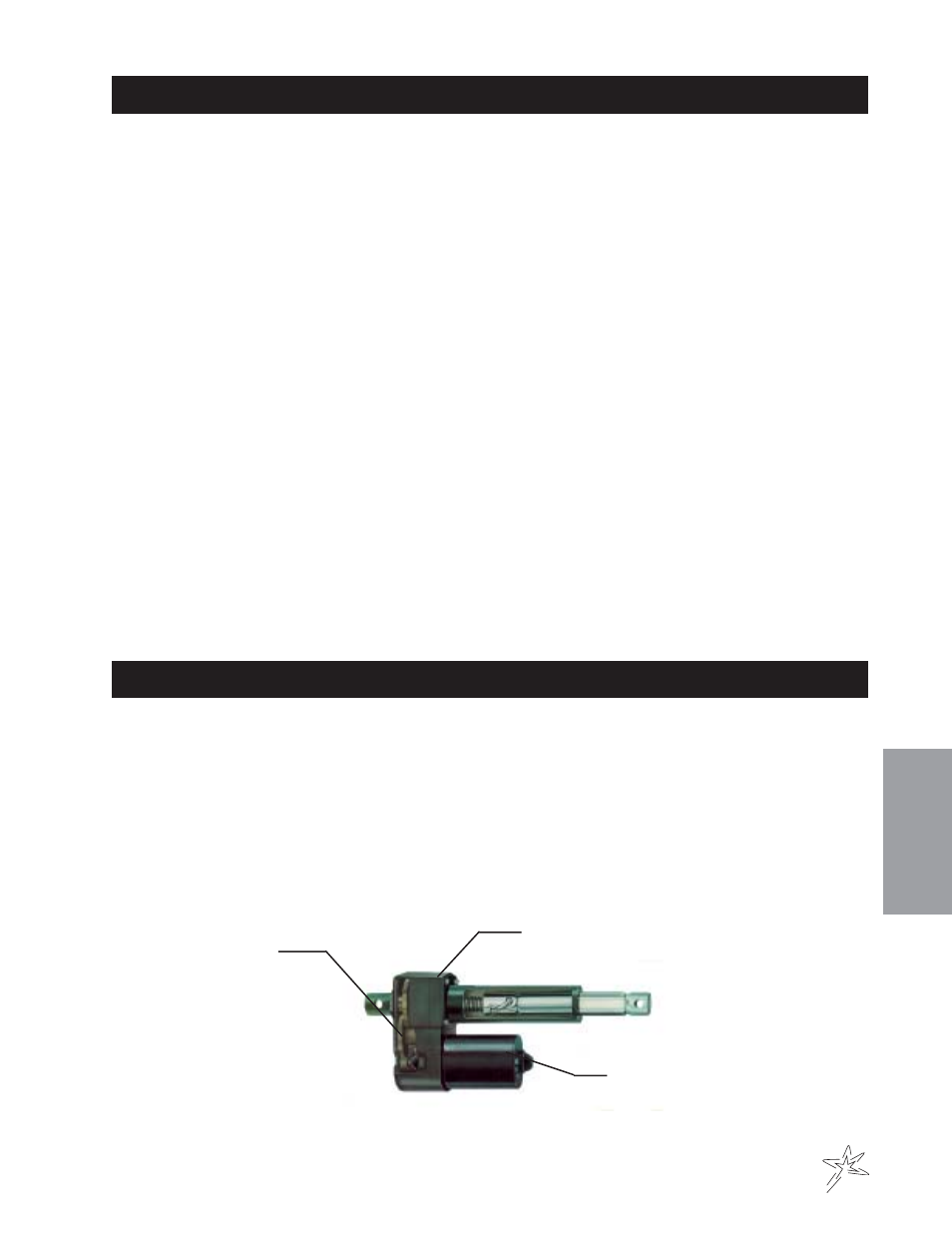

11-158 Linear Actuator
Ref# 5
11-158-04
Gear Kit 20:1
11-158-02
Rear Housing
11-158-03
Motor 12Vdc
