Getting started with SMT338-VP
This section gives basic guidelines to start with SMT338-VP.
The example shown below is for an
SMT8090_374 system , which is a SMT374 and a
SMT390-VP
on an SMT310Q carrier board.
The SMT390-VP is a combination of SMT338-VP and a SMT390.
The following diagram shows both boards. The SMT390 has got 4 holes, as well as
the SMT338-VP, the usual two TIM mounting holes to provide the module with 3.3
Volts and two extra holes, smaller.
Top Primary TIM Connector
Bottom Primary TIM Connector
SHB
B
SHB
A
RSL
B
RSL
A
Po
w
e
r
SMT390
TIM 3.3V
TIM 3.3V
Holes mounted with
Nylon screw (M2x10) and
4 Nylon nuts (M2)
SMT338-VP
Holes mounted with
Nylon screw (M2x10) and
4 Nylon nuts (M2)

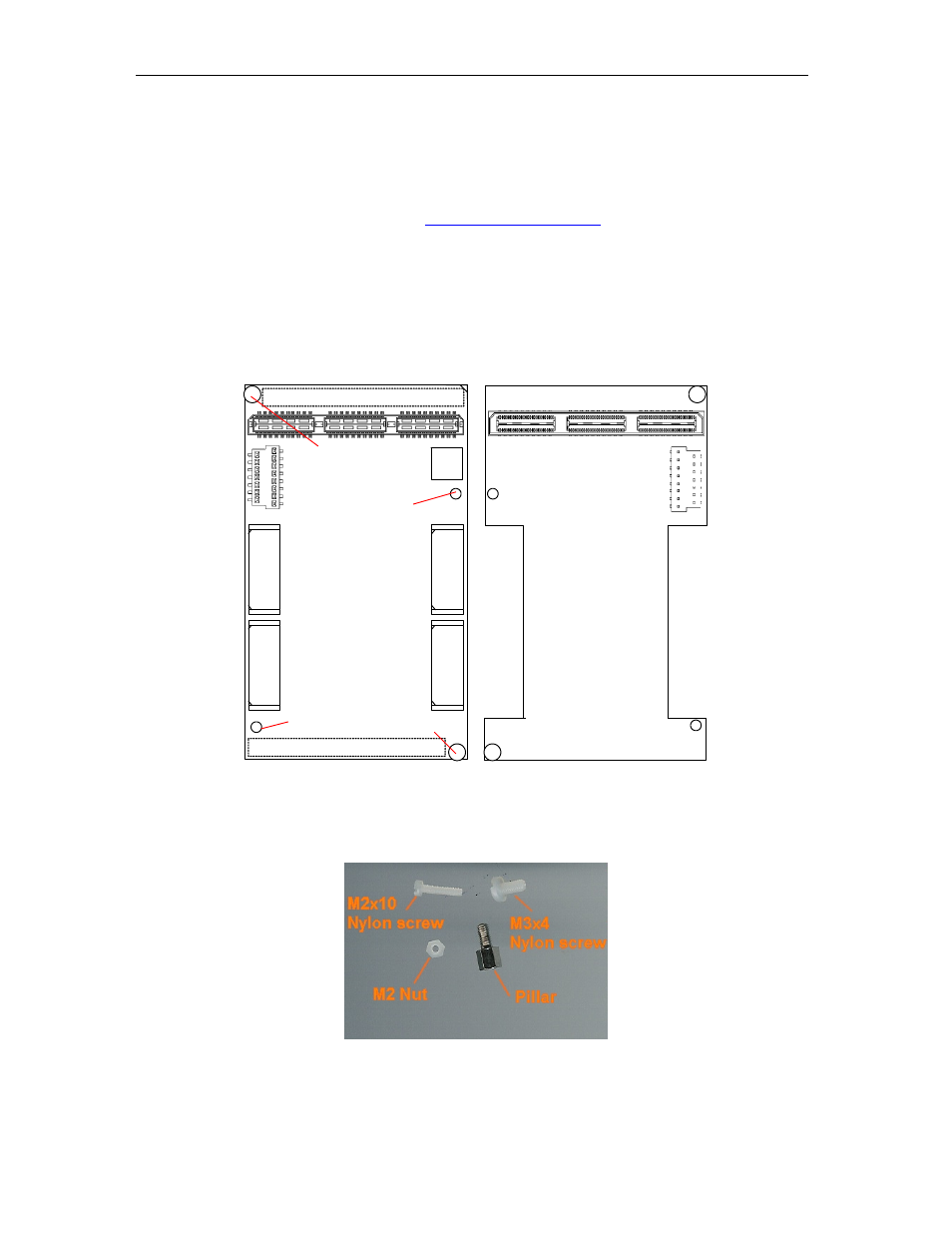

Figure 2 - SMT338-VP to SMT390 Interconnections.
Here is what is required to mount SMT338-VP+SMT390 on the SMT310Q:
