Version 1.3
Page 15 of 22
SMT338-VP User Manual
Oscillator
A 125 MHz low jitter oscillator is connected to the FPGA.
Connectors location
The following figure shows the location of connectors on SMT338-VP board.

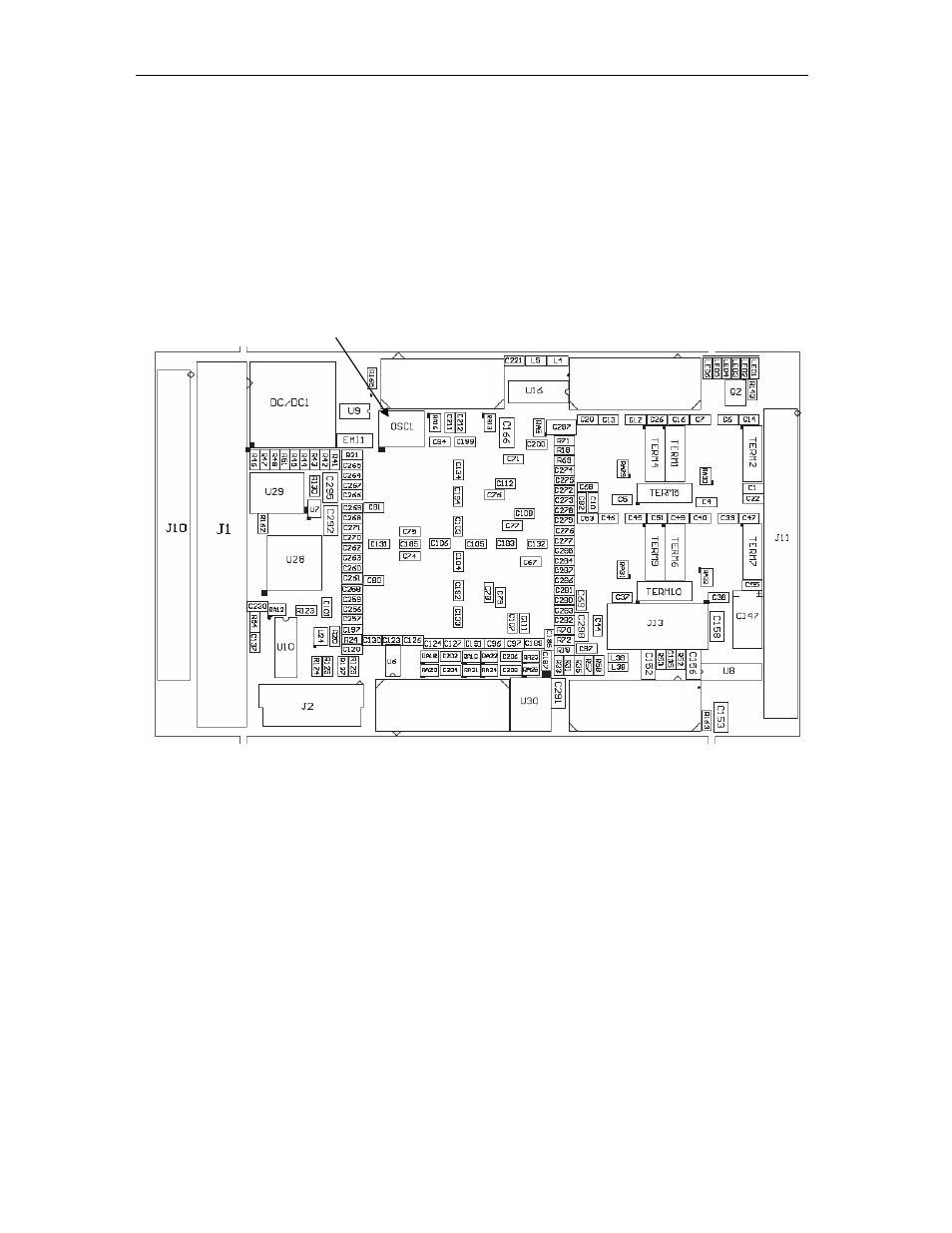

Figure 5: view of the top of SMT338-VP
SHBA
SHBB
RSL
RSL
SLB
JTAG
LEDs
Oscillator
