Velocitykvm Desktop Application Diagrams

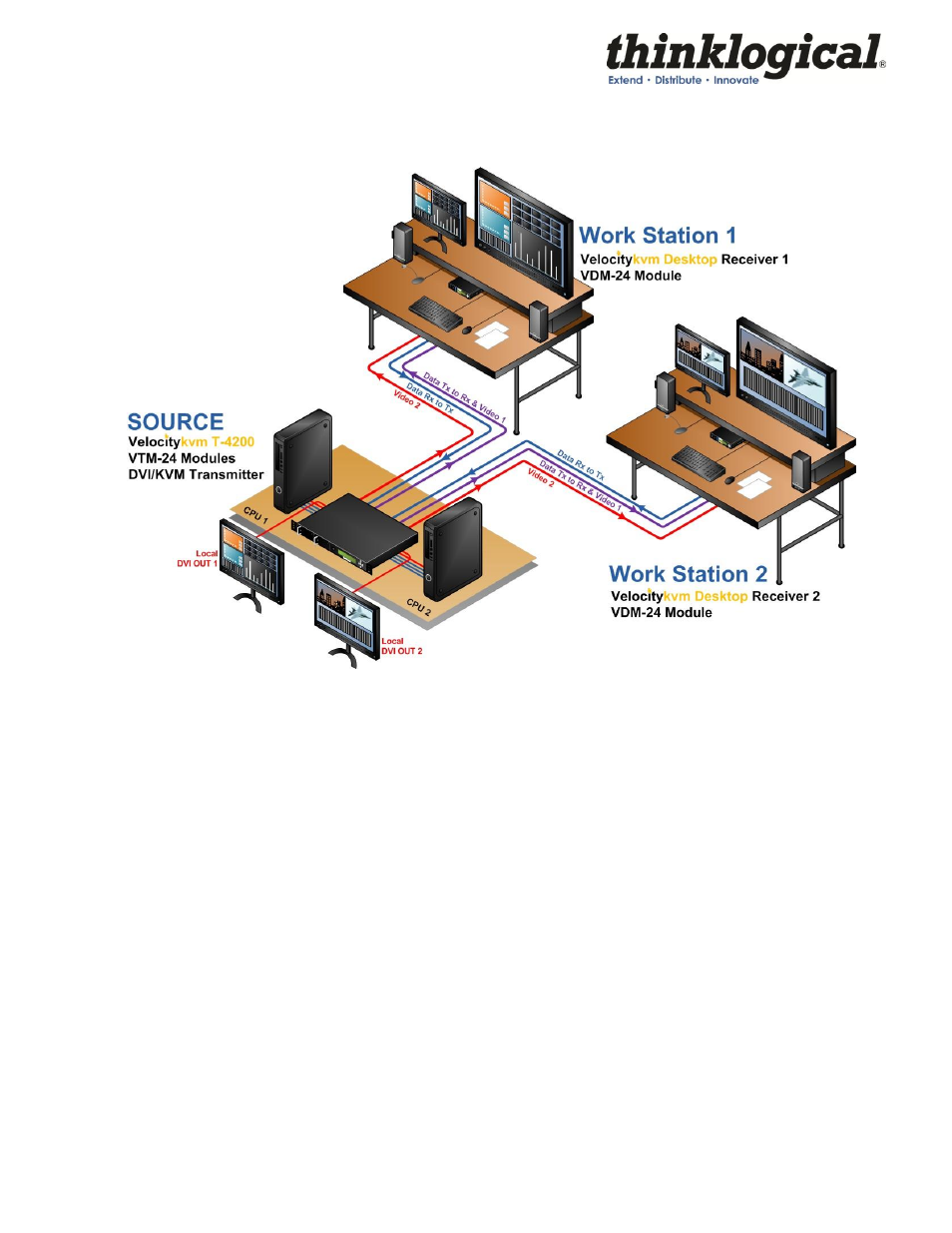

FIGURE 1: Velocitykvm Desktop Receivers located at work station destinations (using Module 24 - dual
display
– interface modules). Velocitykvm T-4200 Transmitter (using two Module 24 - dual display - interface
modules) deployed at the source.
