Site Planning
3-2 Verilink Access System 2000: The Basics
ACP-Based Nodes Use the following guidelines when installing ACP-based nodes:
• The NCM can reside in any shelf or slot, but operates most
efficiently in shelf 1, slot 1.
• Maximum of 4 MLS shelves with up to 52 modules in a node.
• TABS-based rules apply to any DIU/TAC in the node.
• No TIUs or SCCs in the node.
• The NCM cannot control some functions of a DIU 2140.
System Cabling
Considerations
Connecting cables at customer premises must be within specified
distances between the Access System 2000 and external
equipment. These distances are critical for system operation.
Figure 3-1 shows the recommended maximum distances. Cables
available from Verilink are identified in Verilink’s Cable directory.

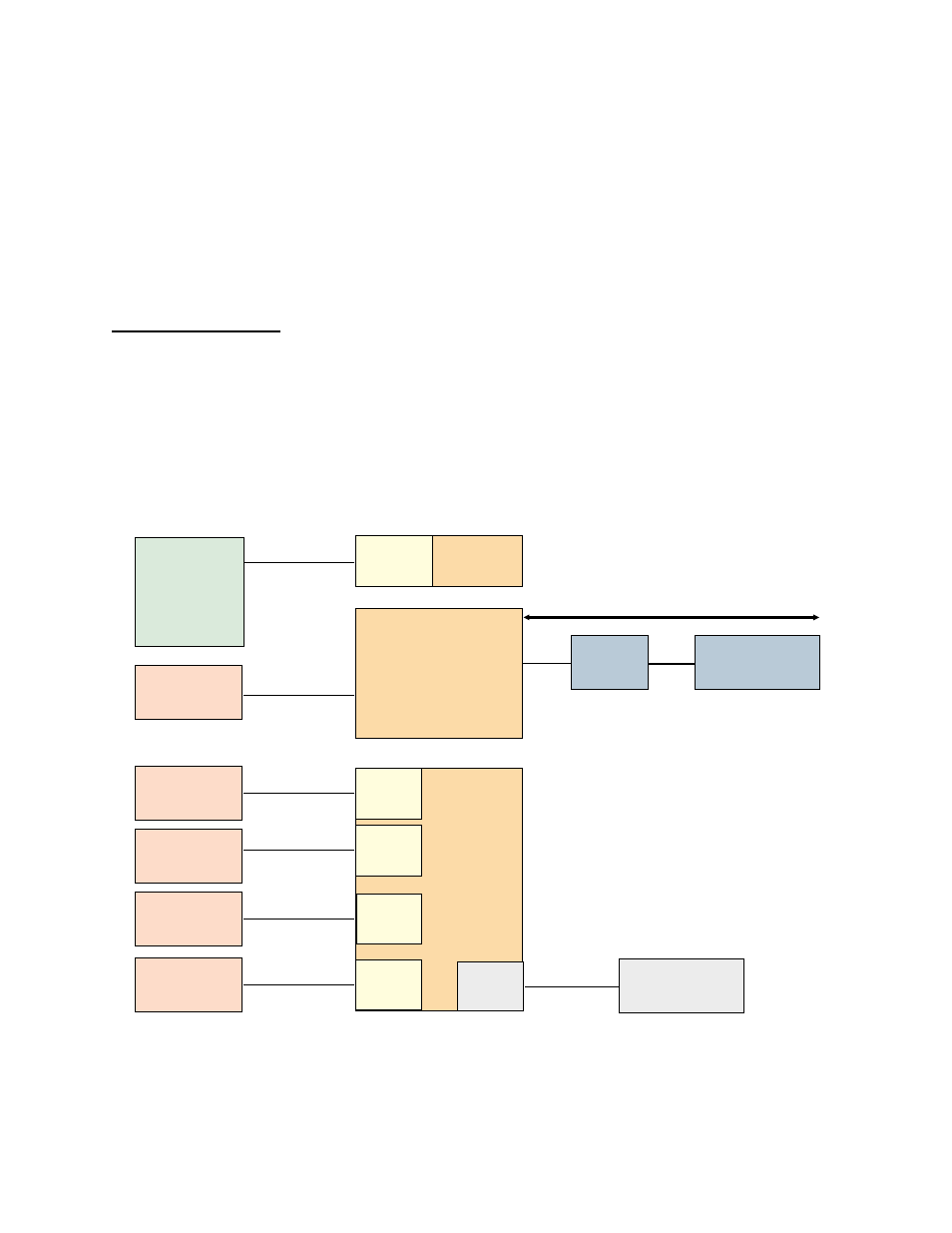

Figure 3-1 Maximum Cabling Distances for T1 Equipment
DC
Power Source
DSU
CSU
8 ft (2.4 meters)
3000 ft (914 meters)
50 ft (15 meters)
RS-232D
655 ft (199 meters)
NCM
Power
Supply
Network
Management
Interface
DSX-1
EQ
Net
INTF
First Network
Repeater
150 ft (45 meters)
RS-422
Data
Port
DTE
250 ft (76 meters)
V.35
Data
Port
DTE
50 ft (15 meters)
HSSI
Data
Port
DTE
50 ft (15 meters)
RS-232D
Data
Port
DTE
