MAINTENANCE
48

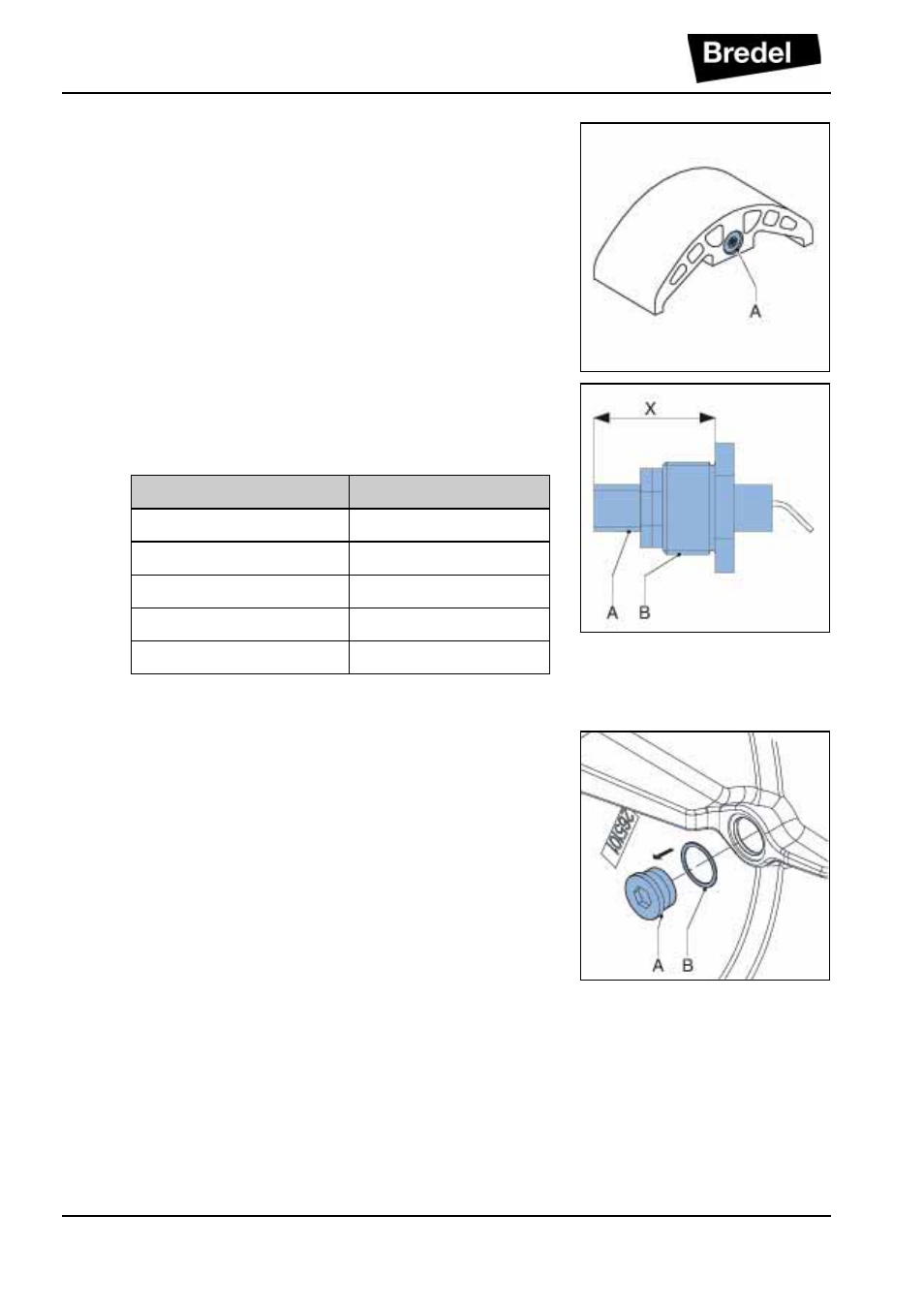

2. Replace pressing shoe by the special pressing
shoe with a magnet (A) by following the steps 6
through 8 from §
7.7.1 .
3. Fit the inductive sensor (A) in plug (B) and
adjust it to dimension "X" as indicated in the
table below.
4. Tighten the adjusting nuts.
5. Remove a plug (A) and the sealing ring (B) on
the back side of the pump housing.
Pump type Dimension “X”
Bredel 40 32 +0 /-1
Bredel 50 32 +0 /-1
Bredel 65 32 +0 /-1
Bredel 80 45 +0 /-1
Bredel 100 45 +0 /-1
