S5120-9P-HPWR-SI
Front panel

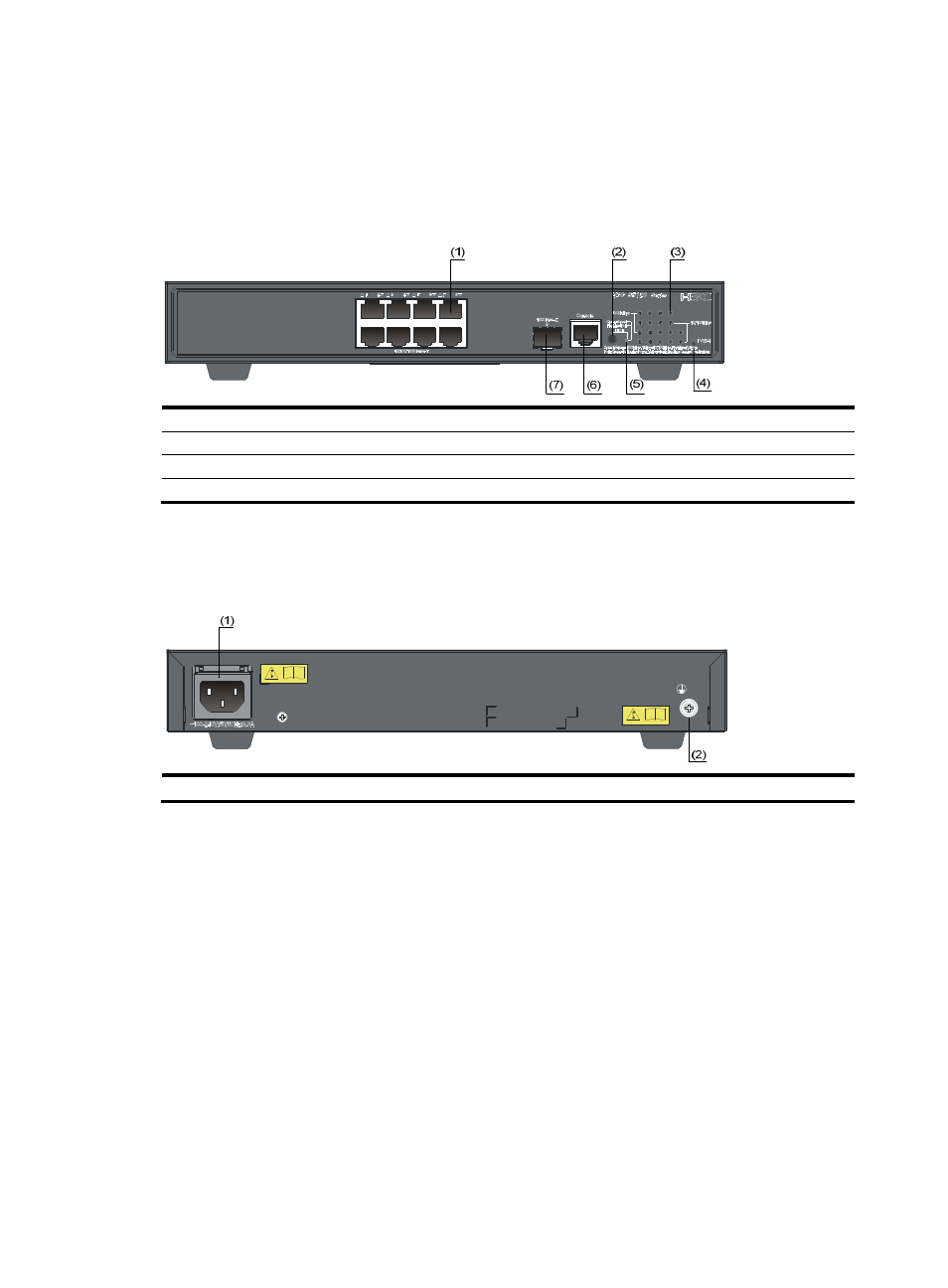

Figure 11 S5120-9P-HPWR-SI front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port (2) Port mode LED
(3) Port status LED (4) Power LED (Power)
(5) Port status LED mode switching button (6) Console port Port
(7) 1000Base-X SFP interface
Rear panel
Figure 12 S5120-9P-HPWR-SI rear panel
(1) AC receptacle (2) Grounding screw
Power supply system
AC power input:
Rated voltage range: 100 VAC to 240 VAC, 50 Hz or 60 Hz
Input voltage range: 90 VAC to 264 VAC, 47 Hz or 63 Hz
Cooling system
The H3C S5120-9P-HPWR-SI is equipped with three fans for heat dissipation.
