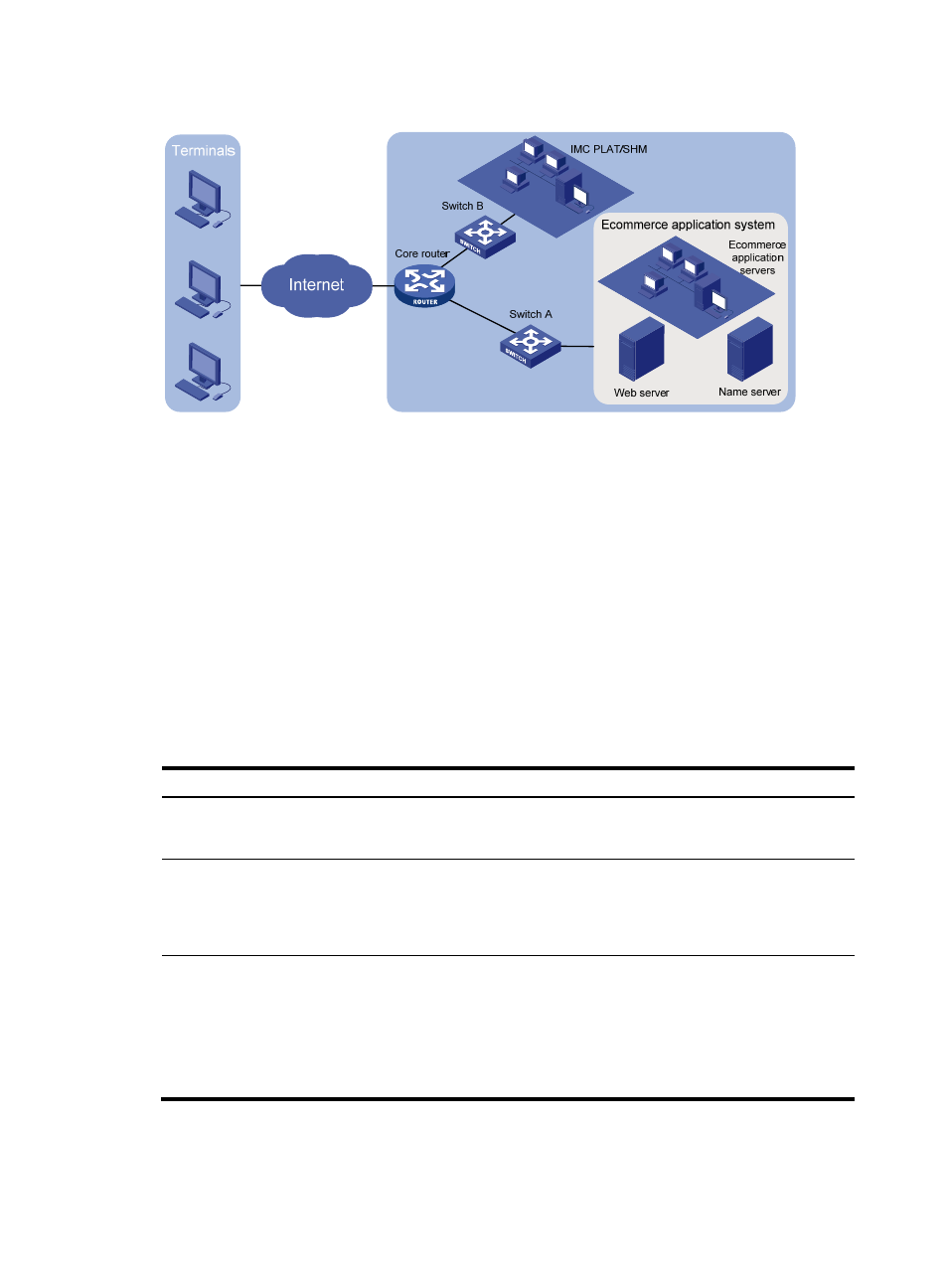

Figure 49 Network diagram
Requirement analysis
The main factors that can affect the performance of the network infrastructure include the following
items:
•
Performance of the link between the core router and Switch A, such as jitter, one-way average
delay, average RTT, packet loss rate, and unreachable rate.
•
Response time and unreachable rate of the core router and Switch A.
•
Performance of the Ecommerce application server, Web server, and name server, such as CPU
usage, unreachable rate, and response time.
To evaluate the network performance, you can configure an SLA as described in
that monitors
and measures the KQI on the target objects.
Table 21 SLA design
Monitored object
Object type
System-defined KQI
KQI data source
•
Core router
•
Switch A
Key device
•
Device unreachable
•
Device response time
Performance Management
•
Ecommerce
application server
•
Web server
•
Name server
Key device
•
Device unreachable
•
Device response time
•
CPU usage
•
Memory usage
Performance Management
Link between the core
router and Switch A
Key link
•
Jitter
•
One way average delay
•
Average RTT
•
Packet loss rate
•
Jitter
•
Unreachable rate
NQA instance module
