8943RDA/-D/-DFR — Instruction Manual 25
Power Up
Power Up
Upon power-up, the green PWR LED should light and the CONFIG,
FAULT and COMM LEDs should illuminate during the module initializa-
tion.
Note When a module is first plugged into a GeckoFlex frame, the 8900NET module
(if present) may report a momentary fault. This will clear once the module has
booted up.
Operation Indicator LEDs
The LEDs common to all modules (FAULT, COMM, CONFIG and PWR) are
highlighted in
Figure 14 and operate in the same manner for each module
version.
Refer to Table 5 on page 26 to see a complete list of possible operating con-
ditions and the resulting indicator status. A red FAULT LED indicates an
error situation and, when noted with the other indicator LEDs, can indicate
a specific problem area. The presence of some LEDs on the module
depends on which model type you are using.

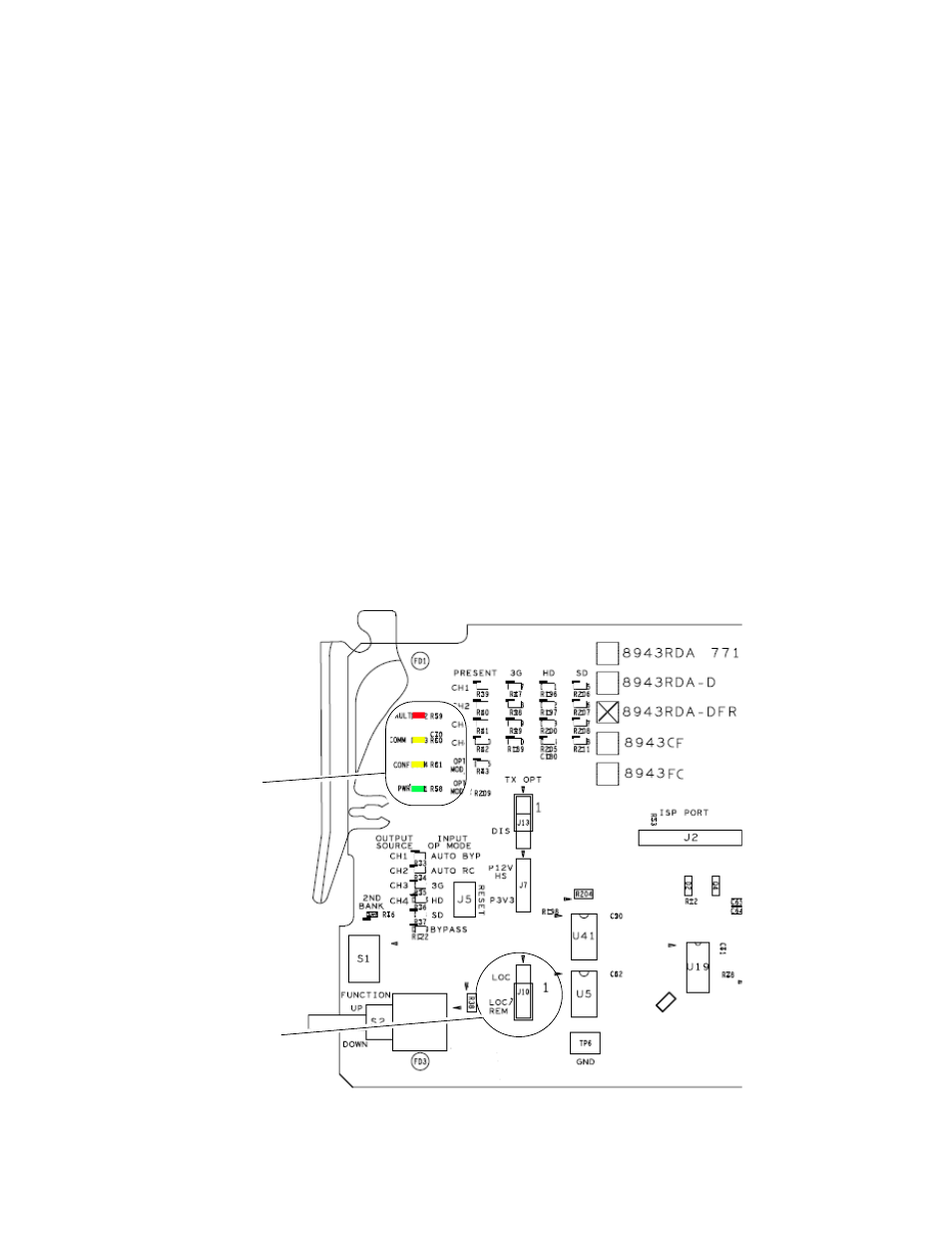

Figure 14. 8943RDA Front Module Indicator LEDs
Jumper J10 set for LOC/REM
Common LEDs
