8964DEC/-FS Instruction Manual 47
Configuration
OSD Control Web Page
The OSD Control web page ( Figure 25 ) allows enabling and disabling of
the OSD on any of the four channel outputs. It also displays the status of
the onboard OSD jumper, JP3 (see
8964DEC Module Onboard Configuration
Settings on page 23 ).
Jumper JP3 on the module enables control of the OSD by either the local
onboard controls or this OSD Control web page. Once the OSD control is
enabled, it can be turned on and off for each channel with the controls in
this display or with the local onboard controls.

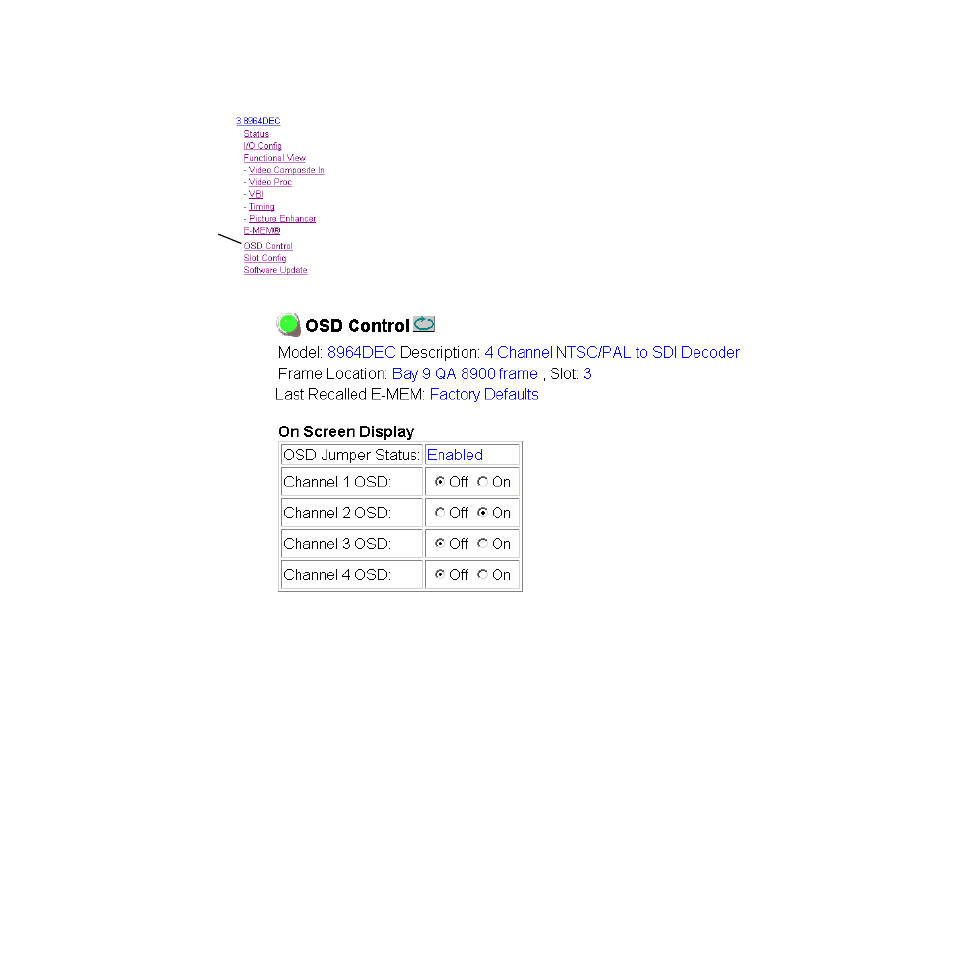

Figure 25. 8964DEC OSD Control Web Page
