JEP-100 — Installation and Operating Manual 19
Hardware Installation - Jupiter System
Serial System
This wiring arrangement assumes that the JEP-100(s) will be operated in
Serial mode, with the LAN typically connected to one panel at a time only
during software upgrades. See
Figure 3 .
Note The LAN must be capable of 100 Mb operation.
Note The Ethernet segment (IP switch to panel) has a 100 meter limit.

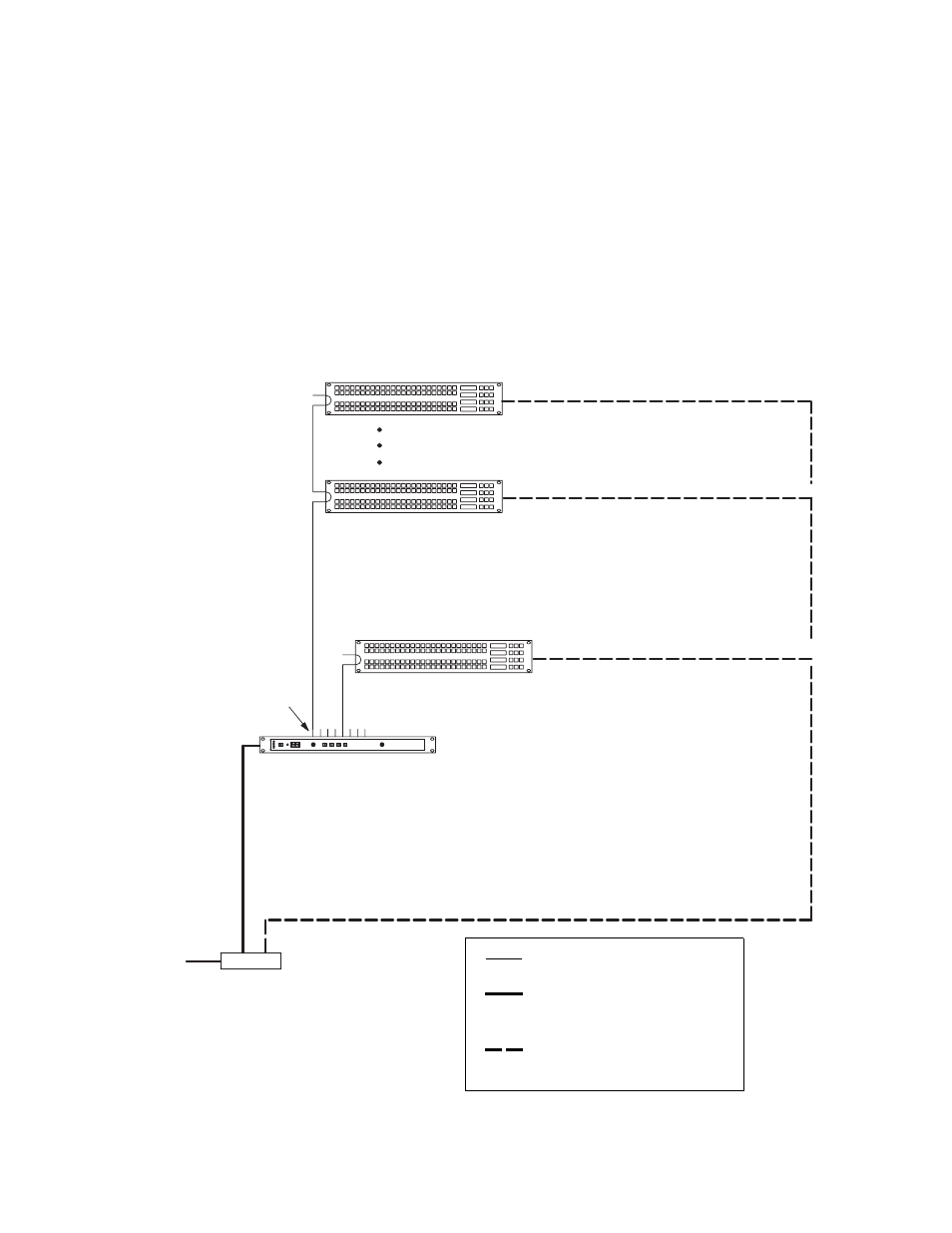

Figure 3. Serial system connections.
CM-4000 System Controller
Serial
Ports
100baseT Jupiter LAN
16 JEP-100s per
serial bus maximum
IP switch
to Jupiter
File Server
Serial bus
Serial bus
8536_09
Serial data cable (see page 22 )
LAN (Cat 5 Ethernet) cable.
Max. recommended length per
seqment = 100 meters (329 ft)
Temporary LAN connection for
software upgrade
