JEP-100 — Installation and Operating Manual 25
Internet Protocol Configuration
LAN Only System
Figure 7 shows an example of a system addressing where the JEP-100s will
be operated entirely in Ethernet mode. Up to 64 JEP-100s can be controlled
per CM-4000.

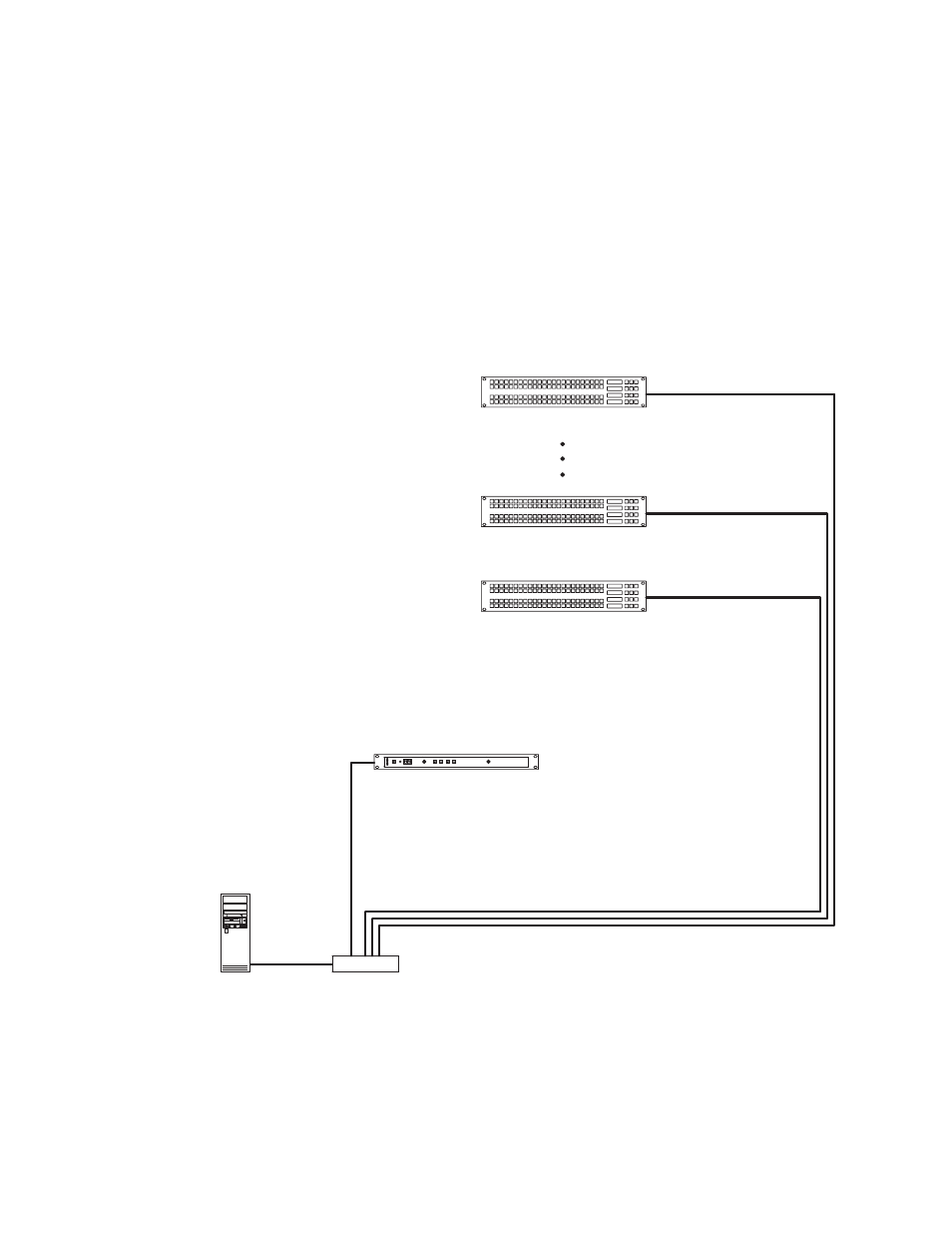

Figure 7. LAN only system addressing(example).
CM-4000 System Controller
10/100baseT
Jupiter LAN
IP switch
Panel IP
“192.168.253.102” Panel ID
“02”
Panel IP
“192.168.253.101” Panel ID
“01”
64 JEP-100s per CM maximum
Panel IP
“192.168.253.164” Panel ID
“64”
Jupiter
File Server
“192.168.253.1”
IP
“192.168.253.10”
8536_13
