7
Kaleido-IP X300/X100
Quick Start Guide
Cabling Diagram

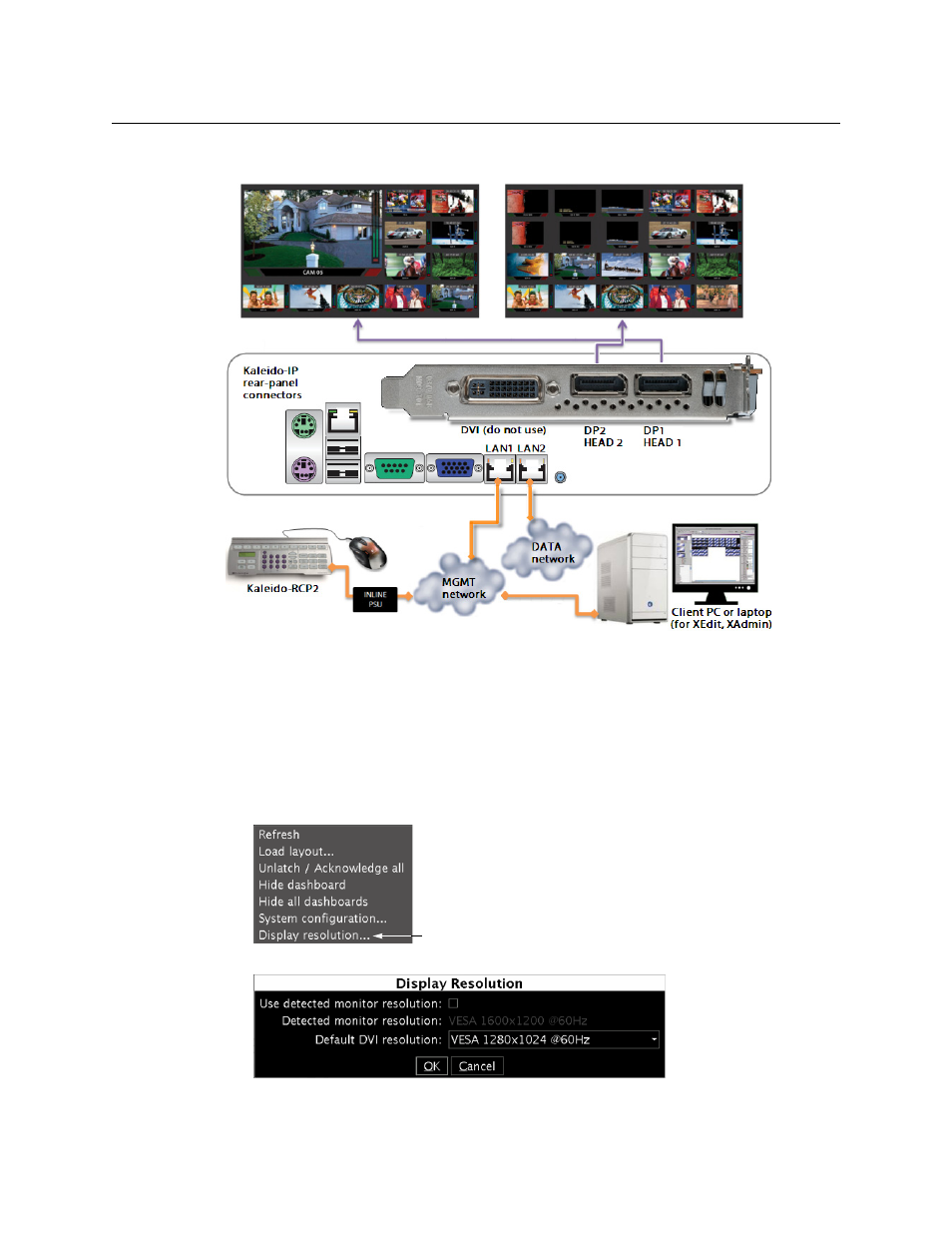

Cabling diagram for a Kaleido-IP X100 or X300 with two network adapters.
The Kaleido-IP X300 model may have two, or four additional DATA ports (LAN3 – LAN6).
Changing the Output Resolution
To change a display’s resolution from the monitor wall
1 Connect a mouse to one of the USB connectors of the Kaleido-IP.
2 Right-click anywhere on the monitor wall, point to Monitor Wall (if you clicked a
monitor), and then click Display resolution.
The Display Resolution window appears.
