13
Kaleido-X16
Hardware Description & Installation Manual
Mosaic Outputs
HDMI Outputs

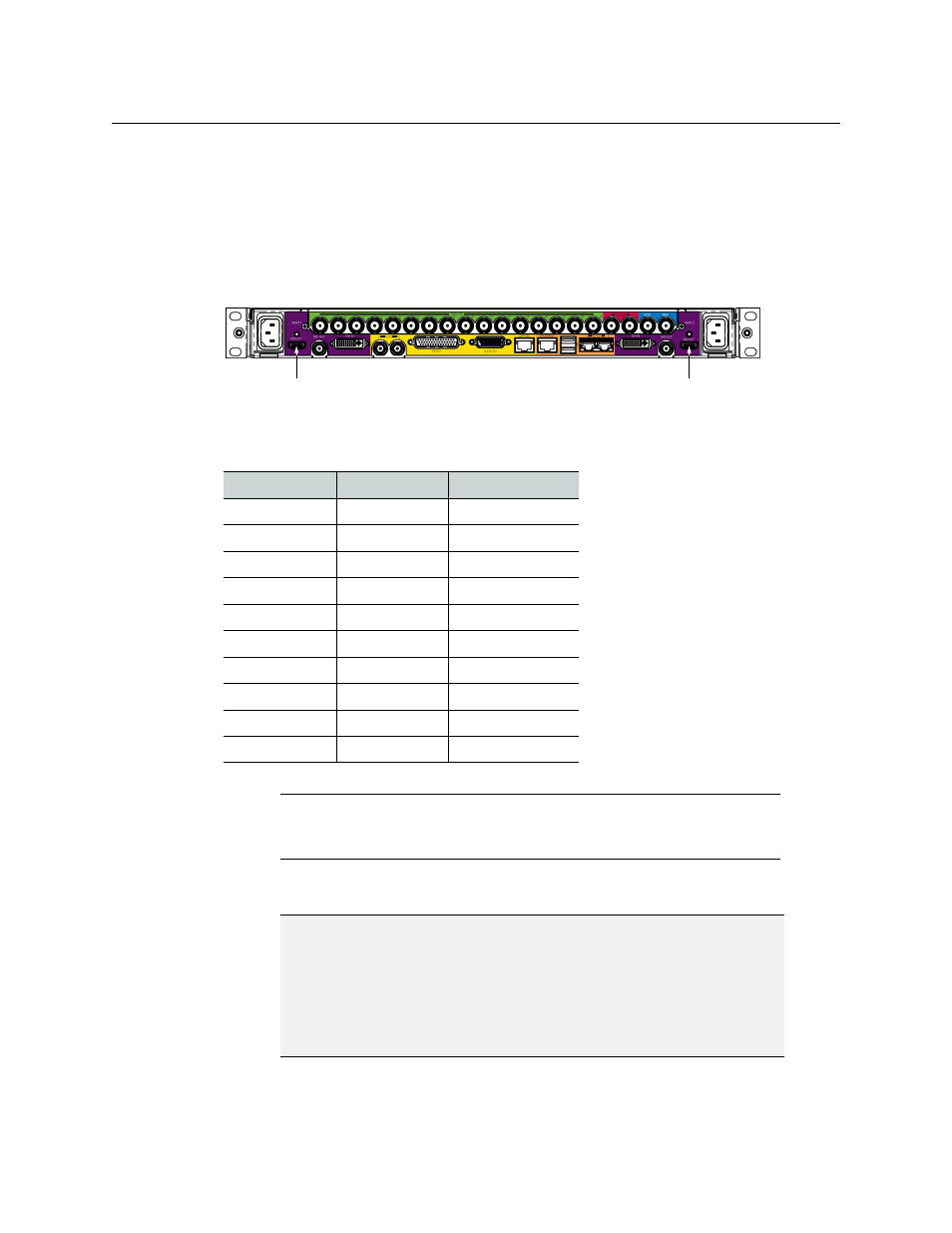

There is one progressive scan HDMI output for each output head (MV OUT 1, MV OUT 2).
See
HDMI Outputs on page 25 for specification details. The HDMI connection is a high
definition connection for the multiviewer output, which carries audio and video, and
supports resolutions up to 1920 × 1200.
The following table lists some (but not all) output formats supported on the HDMI
connection. You can customize your own timing rates for resolutions ranging from 1024 ×
768 up to 1920 × 1200 pixels (all progressive scan), by using XEdit.
HD-SDI Monitoring Outputs
There are two HD-SDI monitoring outputs: one for each head (see HD-SDI Monitoring
Outputs , on page 25 for specification details).
Resolution Format name Refresh rates (Hz)
1024 × 768 XGA 50.00, 59.94
1280 × 720 Margay 50.00, 59.94
1280 × 768 WXGA 50.00, 59.94
1280 × 1024 SXGA 50.00, 59.94
1280 × 1024 Barco 59.94
1360 × 768 NEC 50.00, 59.94
1480 × 1200 Christie 50.00, 59.94
1600 × 1200 UXGA 50.00, 59.94
1920 × 1080 Baycat 50.00, 59.94
1920 × 1200 WUXGA 50.00, 59.94
Note: To use an HDMI output connection as a DVI output, use an HDMI
cable with an HDMI-to-DVI adapter at one end. Alternatively, use an HDMI-
to-DVI cable.
IMPORTANT
Audio monitoring at the HD-SDI outputs is supported on recent
hardware only.
Support for audio monitoring at the HD-SDI outputs requires version 5.30
(or later) of the Kaleido-X Software, and recent hardware. In the XAdmin
Status and Options page, under SYSTEM, the value indicated for the Card
revision attribute must be 0x4 or more.
MV OUT 1/DVI OUT 1 MV OUT 2/DVI OUT 2
