2 Press the setup button. The panel now allows you to enter the panel ID using buttons at the
left that function as a numeric keypad. The numbers of the keypad a printed on the panel.
They range from 0 (at the left) to 9:
Enter the panel ID using the keypad. The panel requires a non-zero ID.
The display tells you to press button 23 to cancel, press button 24 to save the panel ID, or
press button 116 to exit (and move to the next part of the setup sequence). These buttons
are the ones that are illuminated. They are identified in the illustration. (Button 116 is the
setup button.)
When you finish, press the setup button.
3 Continue to press the setup button until the panel displays ‘ACQUIRE IP ADDRESS’ once
again as in step 1.
4 After you enter the panel ID, reconnect the Ethernet cable. The system controller will detect
your panel in a few seconds. (All panel IDs must be unique.)
You can now prepare an NV9607 configuration in NV9000-SE Utilities and upload the configura-
tion to the NV9607. You need the panel ID to create a NV9607 configuration. When you upload
the configuration, the panel ID you entered in NV9000-SE Utilities designates the actual panel to
which the upload will occur. If no actual panel has that ID, the upload cannot occur.
Testing
A panel test function is available when the NV9607 is disconnected from the system controller.
Run the test to determine the health of your NV9607. See
Setup Mode on page 52 for detail. You
can also view the software version numbers under setup mode.
These are points to consider after you install your NV9607 control panel(s):
1 Do the buttons illuminate? When an NV9607 powers up, one or more of its buttons are sup-
posed to turn green or amber. Did it pass the panel test mentioned above?
2 When the NV9607 powers up and it is connected to the system controller, it should initialize
completely. (That takes a few seconds.) The NV9000 system should load whatever configura-
tion exists for that panel and the buttons appropriate for its configuration should light.
If you continue to see “No Server,” “ACQUIRE IP ADDRESS,” or “Locating Network,” you have a
problem. Reboot everything and try again.

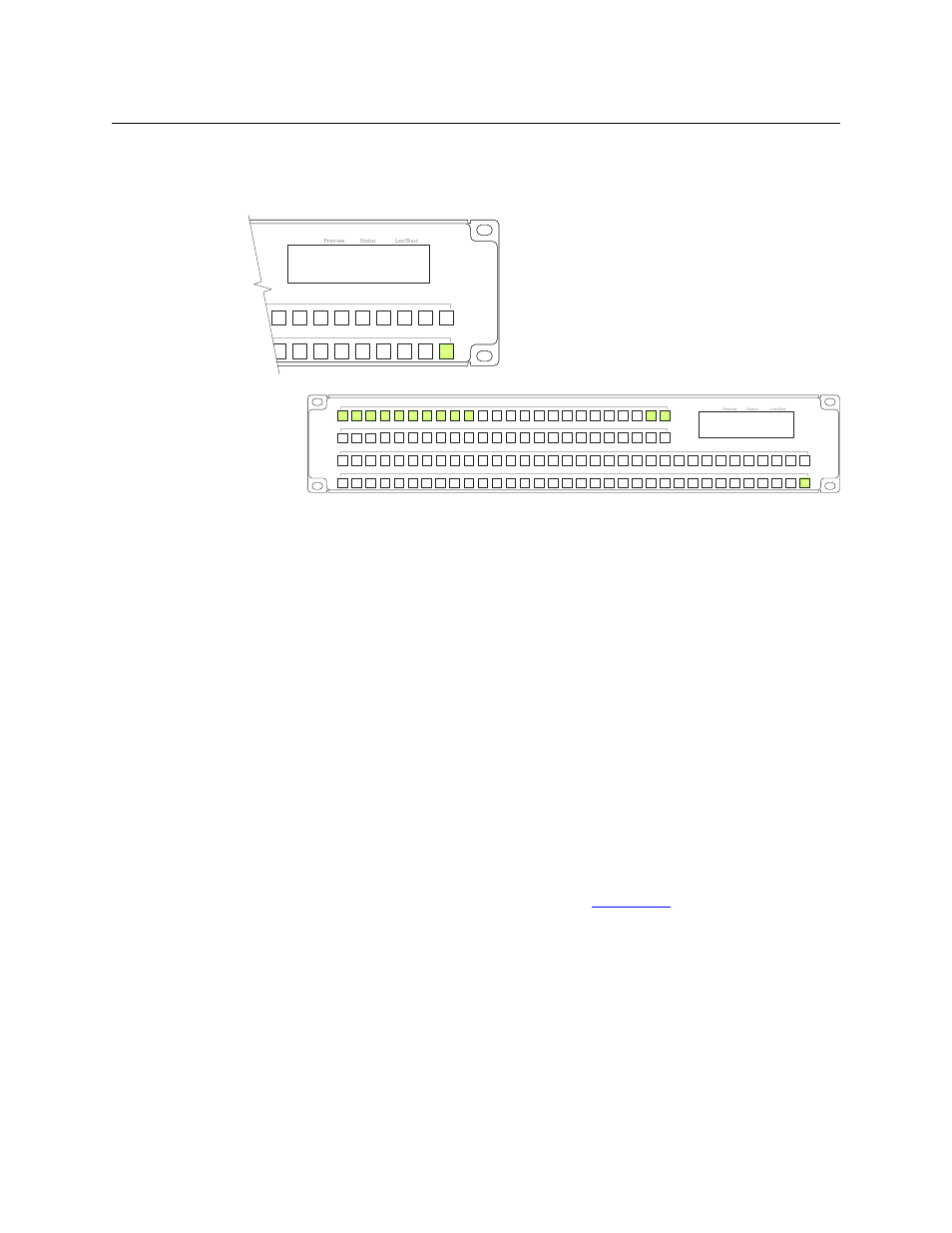

NV9607 Panel ID
6071
23: Cancel 24: Save 116: Exit
0 1 2 3 4 5 6 7 8 9 23 24
116
NV9607 Panel ID
6071
23: Cancel 24: save 116: Exit
