Testing the Fibre Channel Video network
23 July 2004 Profile XP Service Manual 71

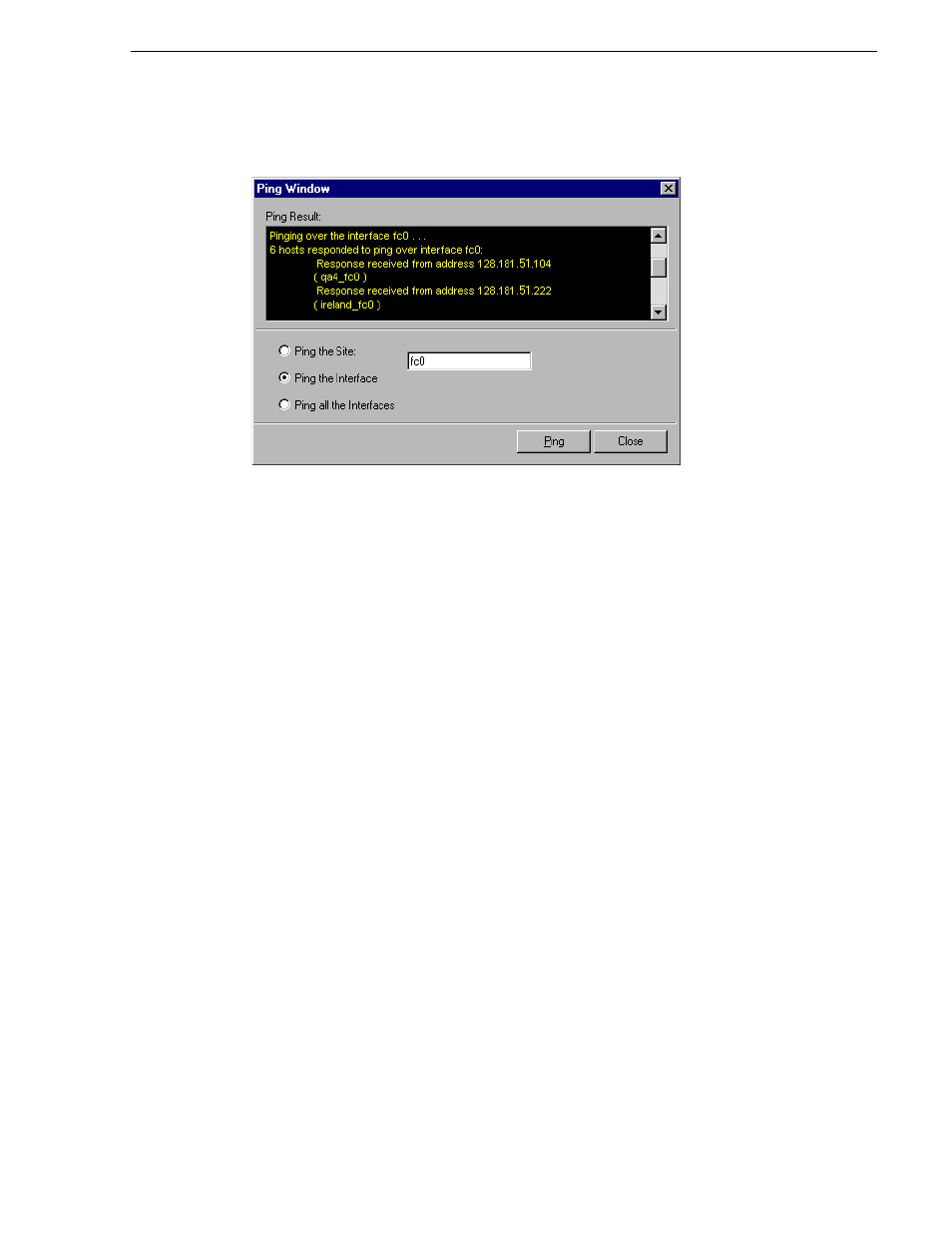

3. In the Ping Window, select the Ping the Interface option.
4. Type fc0 in the text box, then click Ping . Make sure to enter a zero not an O. All
Profile systems connected to Fibre Channel are asked to respond.
5. Wait for ping results.
6. Check the Ping Results window, then do one of the following:
a. If only the local system responded, there is a problem with the Fibre Channel
network connectivity. Verify the Fibre Channel connections for all systems,
then review all configuration steps under Setting up a simple video network:
Fibre Channel in the Profile XP System Guide.
b. If all systems responded, but a Profile system name is missing or incorrect, there
is an error in the HOSTS file. Refer to Manually Edit the hosts file on each
Profile XP in the Profile XP System Guide.
NOTE: You can use the “Ping the Site” option to ping a specific Profile system
using it’s IP address or name, for example Profile1_fc0. Pinging by name requires
the HOSTS file to be correct. Pinging by IP address does not require the HOSTS
file.
