STORM 3G ― Setup Guide 3
Setting the Main Board

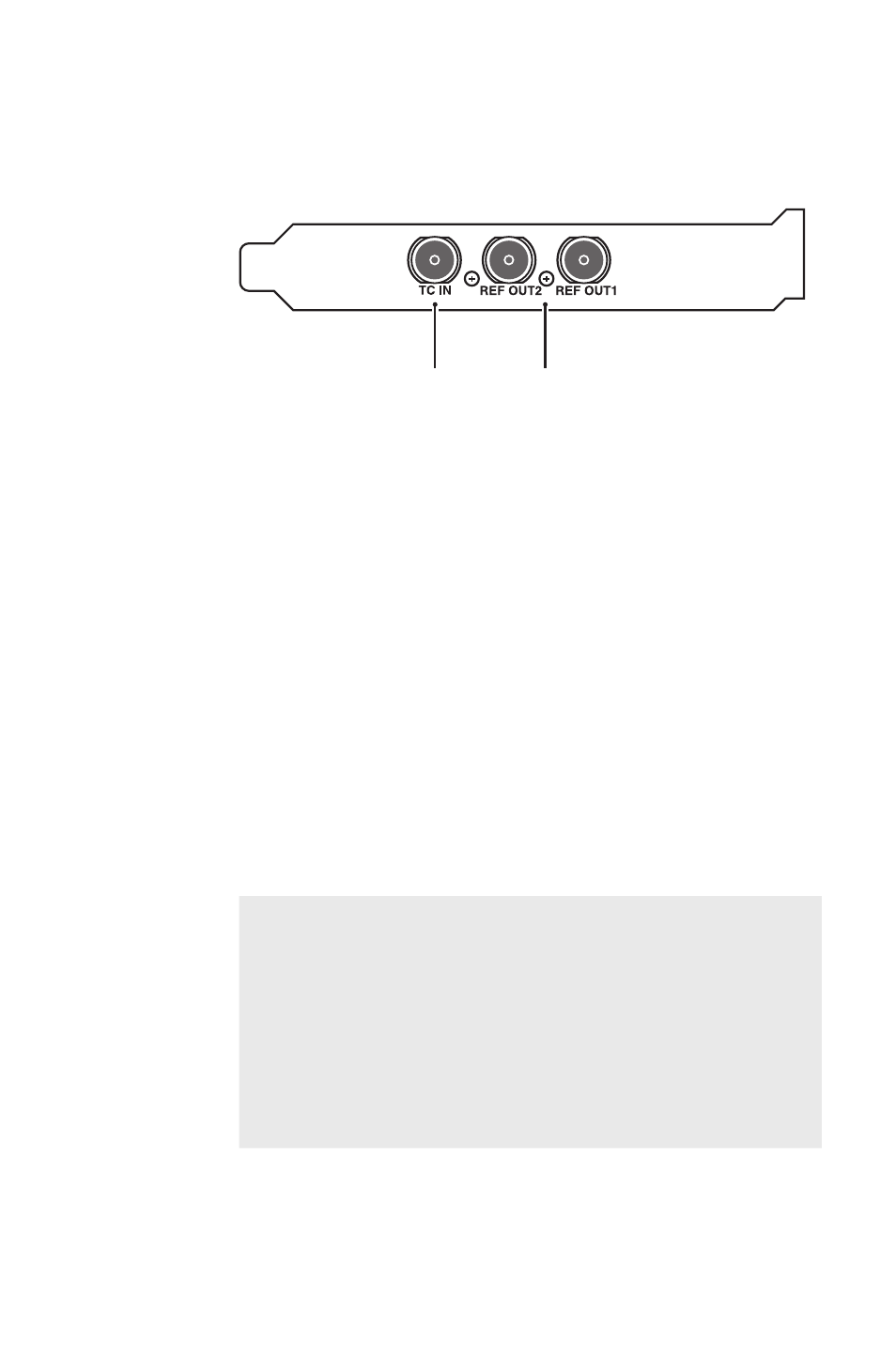

STORM 3G Expansion board (HTX-OP1)
rear panel (Optional)
[2] [1]
[1] TIME CODE input connector (TC IN)
[2] Reference output connector (REF OUT1/REF OUT2)
Connect this terminal to the REF IN terminal of the
main board with the attached BNC cable.
Setting the Main Board
Before board setting, be sure that your work area is
dust-free and dry. Prepare a Philips screwdriver and
an empty box for removed screws in advance.
Also, be sure that your PC is turned off and that the
cables (including power) are removed from the PC.
The product components vary depending on the
product of your purchase.
POINT
See the instruction manual for your PC
(motherboard) for the PCI (PCI Express)
slot type.
Set the main board (STORM 3G) in the
PCI Express slot (PCI Express x4).
* When PCI Express x4 is not available,
either PCI Express x8 or x16 can be
used.
•
*
