STORM 3G ― Setup Guide
Setting the HTX-OP1 (Optional)
POINT
HTX-OP1 can be inserted into both the
PCI slot and the PCI Express slot. When
you cannot insert the HTX-OP1 into the
slot because of its protruding edge, cut
the edge before inserting the HTX-OP1.
•
2

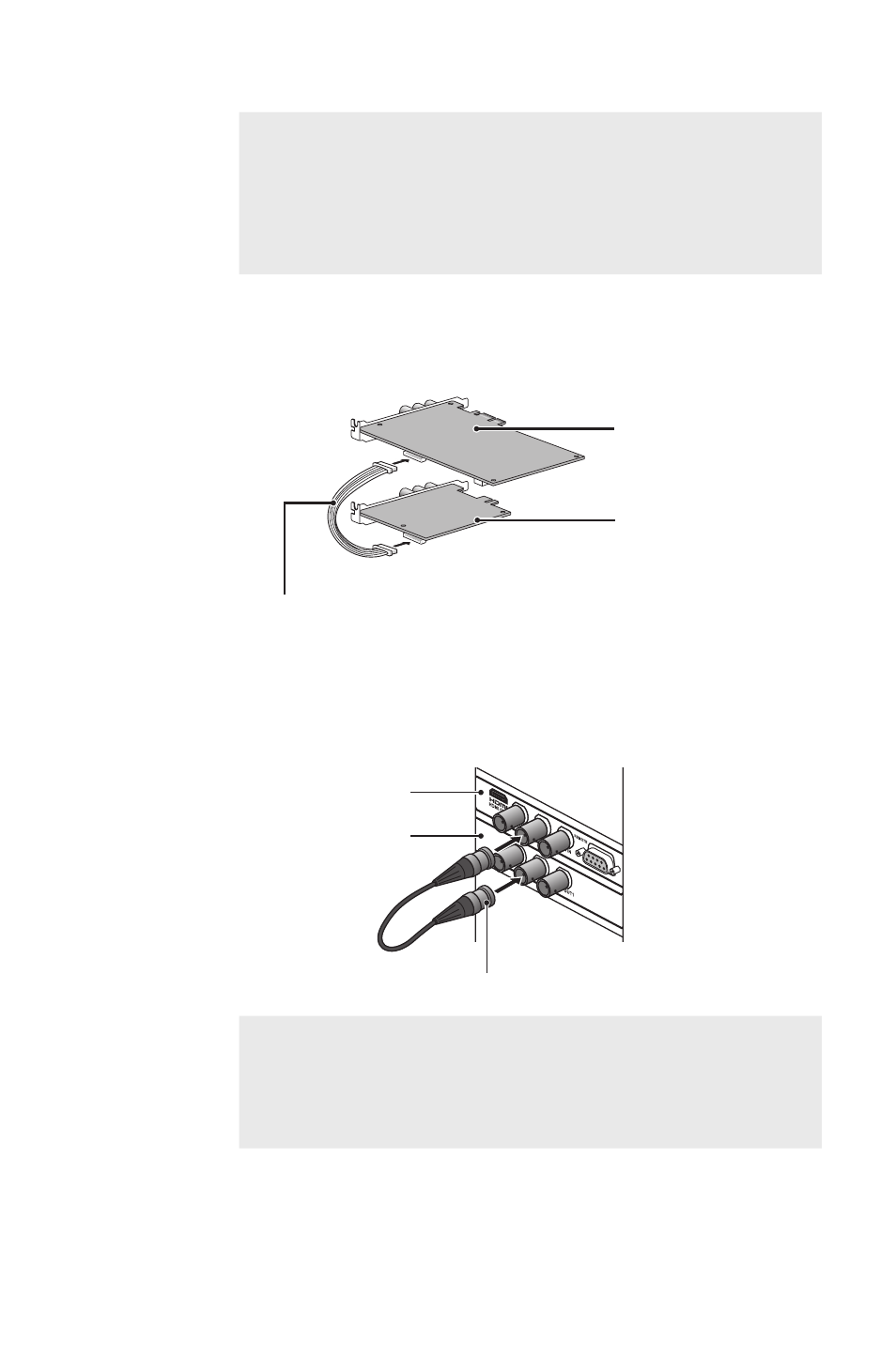

Connect the main board and HTX-OP1 with the
attached board connection cable.
Main board
HTX-OP1
Board connection cable
3
Connect the REF OUT terminal of HTX-OP1 and
the REF IN terminal of the main board with the
attached BNC cable.
Main board
HTX-OP1
BNC cable
POINT In "System Setting" of EDIUS 6, you can
select a format to output REF signals
from HTX-OP1.
Setting Editing Environments ►P36
•
