TelePort 3G Models and Part Numbers
Part Numbers
Part Numbers
The TelePort 3G part number consists of three sections as described below:

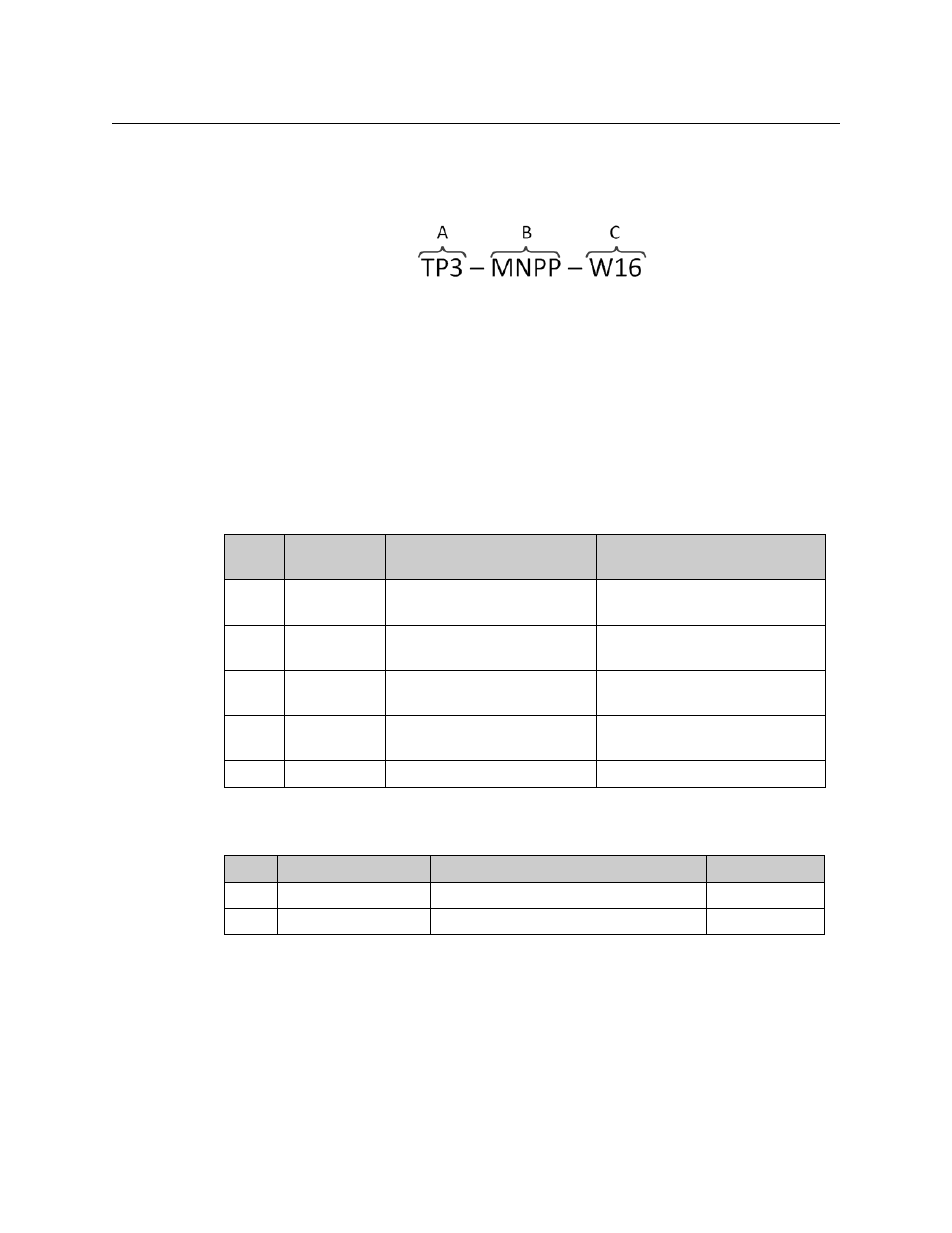

Fig. 5-1: TelePort 3G part number
• A - The product designation – in this case TP3 stands for TelePort 3G
• B - Channel Card Options – the four letters correspond to the four available slots. If a
position has “0” than the slot is empty. The available card options are listed below.
• C - Fiber I/O Options – the number indicates the number of fiber optic channels. The
I/O options are listed below.
Part Number Card Options
All cards have four channels.
Fiber I/O Cards
Code
Letter Usage Type Wavelength
M Transmit CWDM 1310 Low Range:
1271, 1291, 1311, 1331 nm
N Transmit CWDM 1310 High Range:
1351, 1371, 1411, 1431 nm
Q Transmit CWDM 1550 Low Range:
1471, 1491, 1511, 1531 nm
U Transmit CWDM 1550 High Range:
1551, 1571, 1591, 1611 nm
P Receive Demux Leads Only Straight Through Connectors
Desig. Usage Type Wavelength
W8 Receive or Transmit 1 – Fiber I/0 – 8 channels CWDM
W18 Receive or Transmit 1 – Fiber I/0 – 16 channels CWDM
