HEIDENHAIN CNC PILOT 4290 37

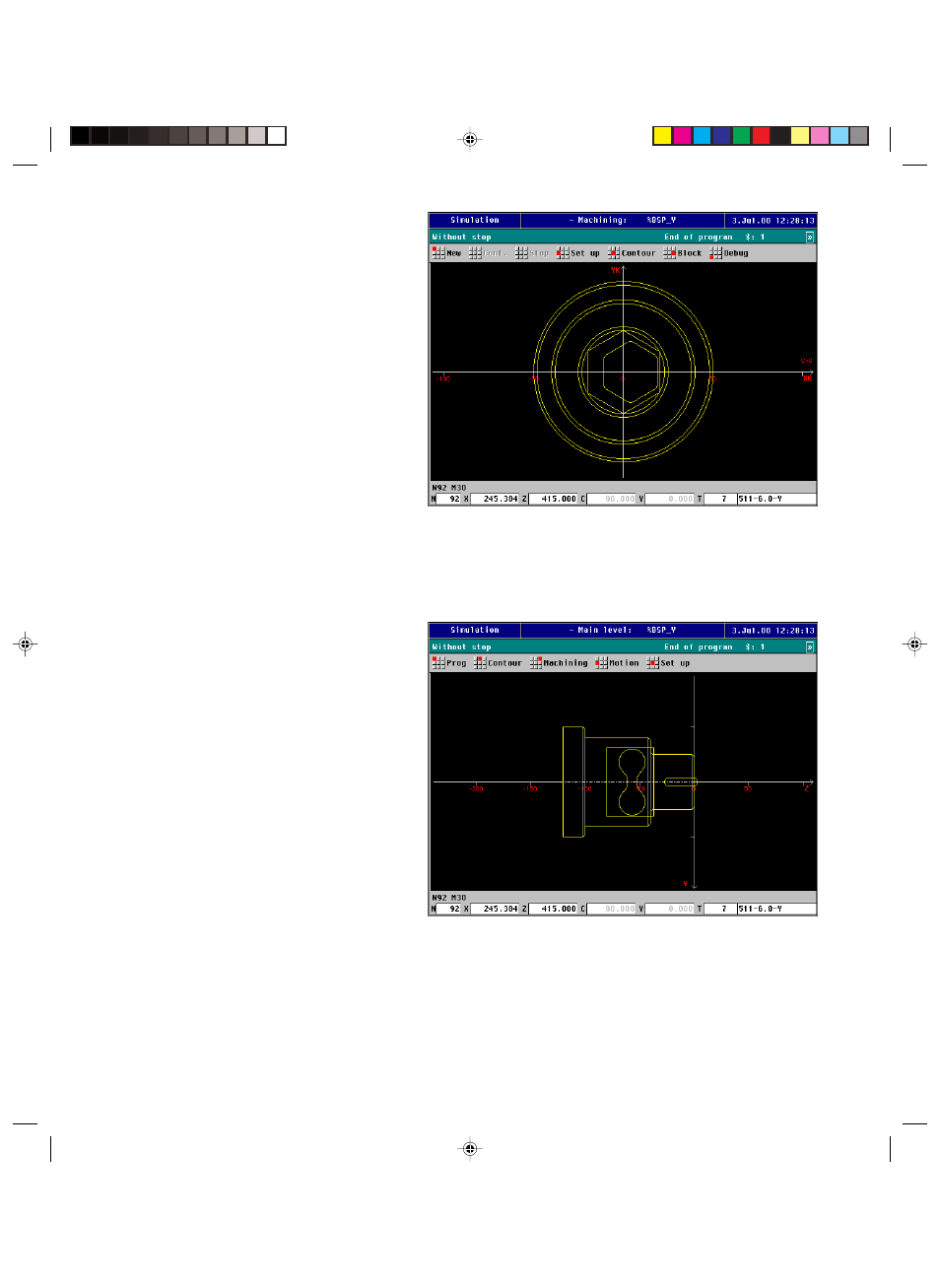

The simulation displays the example workpiece as
it will appear after it has been completely
machined. In the ”front window” the CNC PILOT
shows the centric polygon (6 edges) and the
eccentric polygon machined as a ”pocket.”
The ”surface window” shows you the linear slot
and the ”free contour” milled in the single surface
in the form of an ”eight.”
2.4.1
Milling
with
the
Y
Axis
