Task: Program(s):
HEIDENHAIN Basic Course ISO G 426

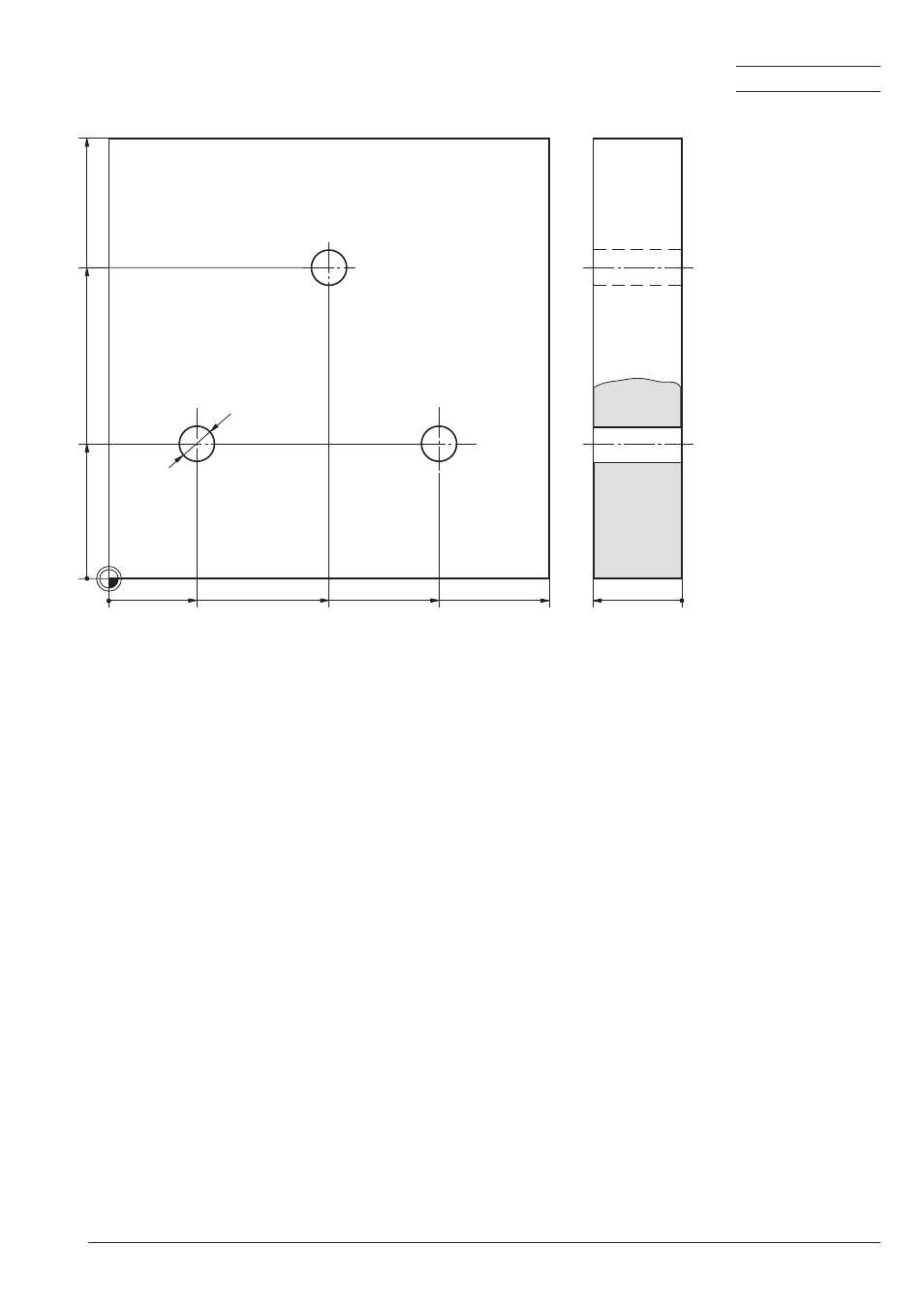

Drilling cycle
F06 62170/1
Begin program
Define workpiece blank
Activate tool
Define cycle
Move to clearance height
Starting point 1st hole / cycle call
2nd hole / cycle call
3rd hole / cycle call
Retract tool, PGM end
100
20
0
100
0
50
0
70
30
20 75
8
