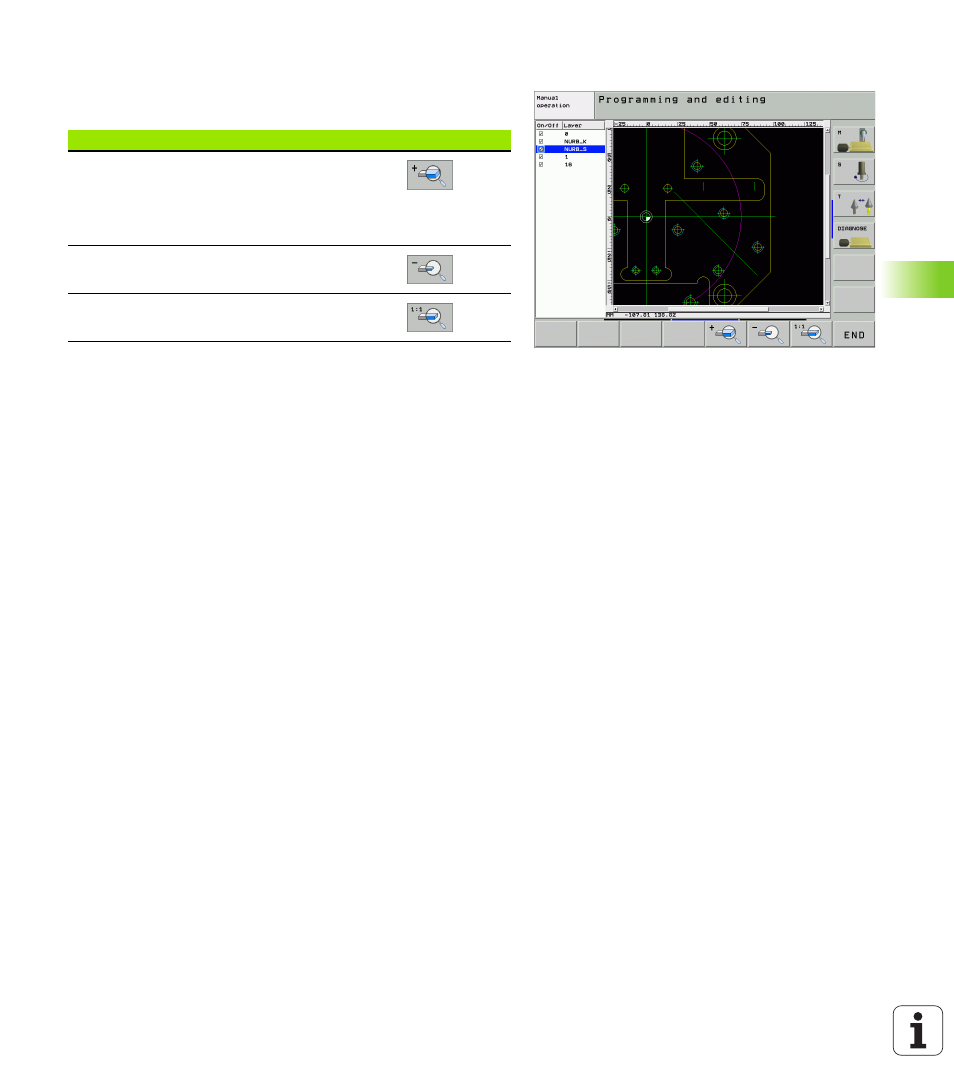

Zoom function
The TNC features a powerful zoom function for easy recognition of
small details during contour selection.
Function Soft key
Magnify workpiece. The TNC always magnifies
the center of the view currently being displayed.
Use the scroll bars to position the drawing in the
window so that the desired section appears after
the soft key has been pressed.
Reduce workpiece.
Show workpiece at original size.
