424 8 Programming: Cycles
8.9
Coor
di
na
te
T
ra
n
s
for
m
a
ti
on Cy
cle
s

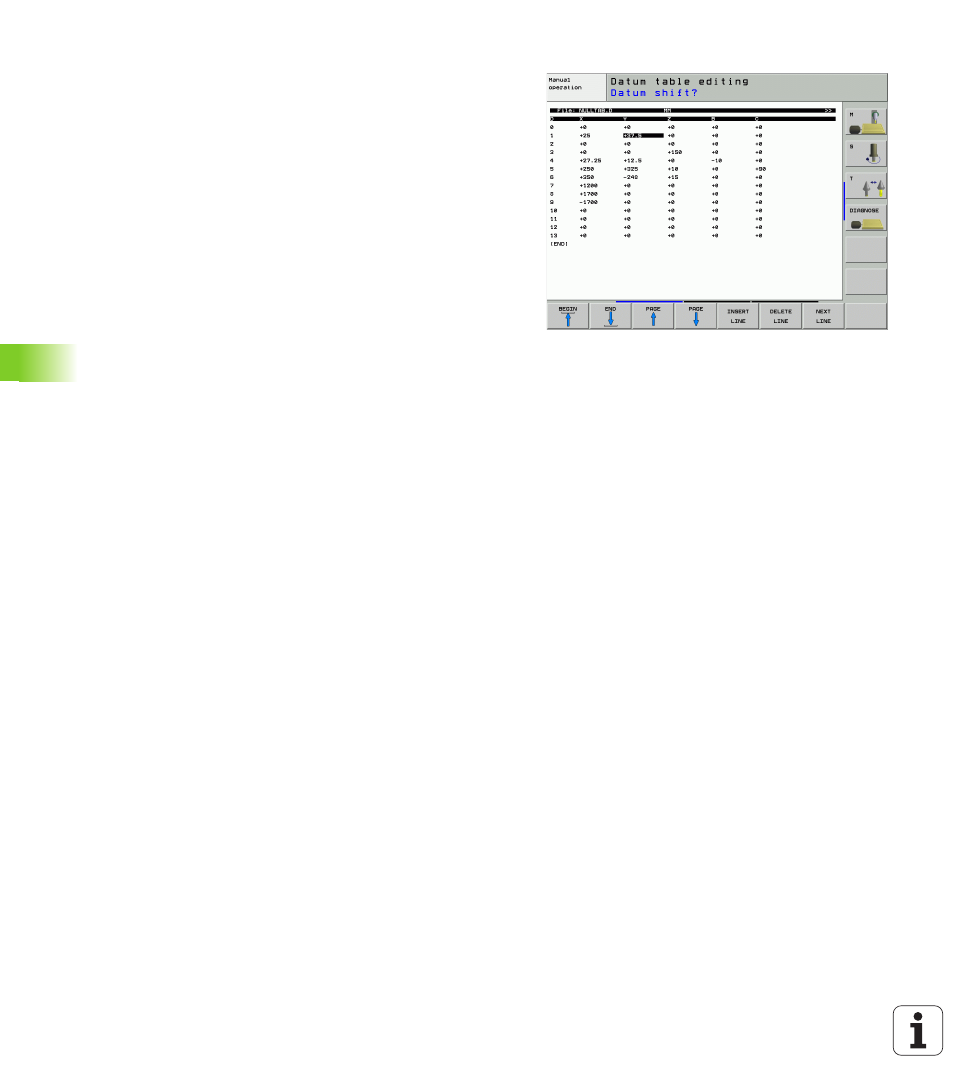

Configuring the datum table
In the second and third soft-key rows you can define for each datum
table the axes for which you wish to set the datums. In the standard
setting all of the axes are active. If you wish to exclude an axis, set the
corresponding soft key to OFF. The TNC then deletes that column
from the datum table.
If you do not wish to define a datum table for an active axis, press the
NO ENT key. The TNC then enters a dash in that column.
To leave a datum table
Select a different type of file in file management and choose the
desired file.
Status displays
In the additional status display, the following data from the datum
table are shown (see “Coordinate transformations” on page 48):
„ Name and path of the active datum table
„ Active datum number
„ Comment from the DOC column of the active datum number
