8.4 Cycles for Milling Pockets,
Studs and Slots
Overview

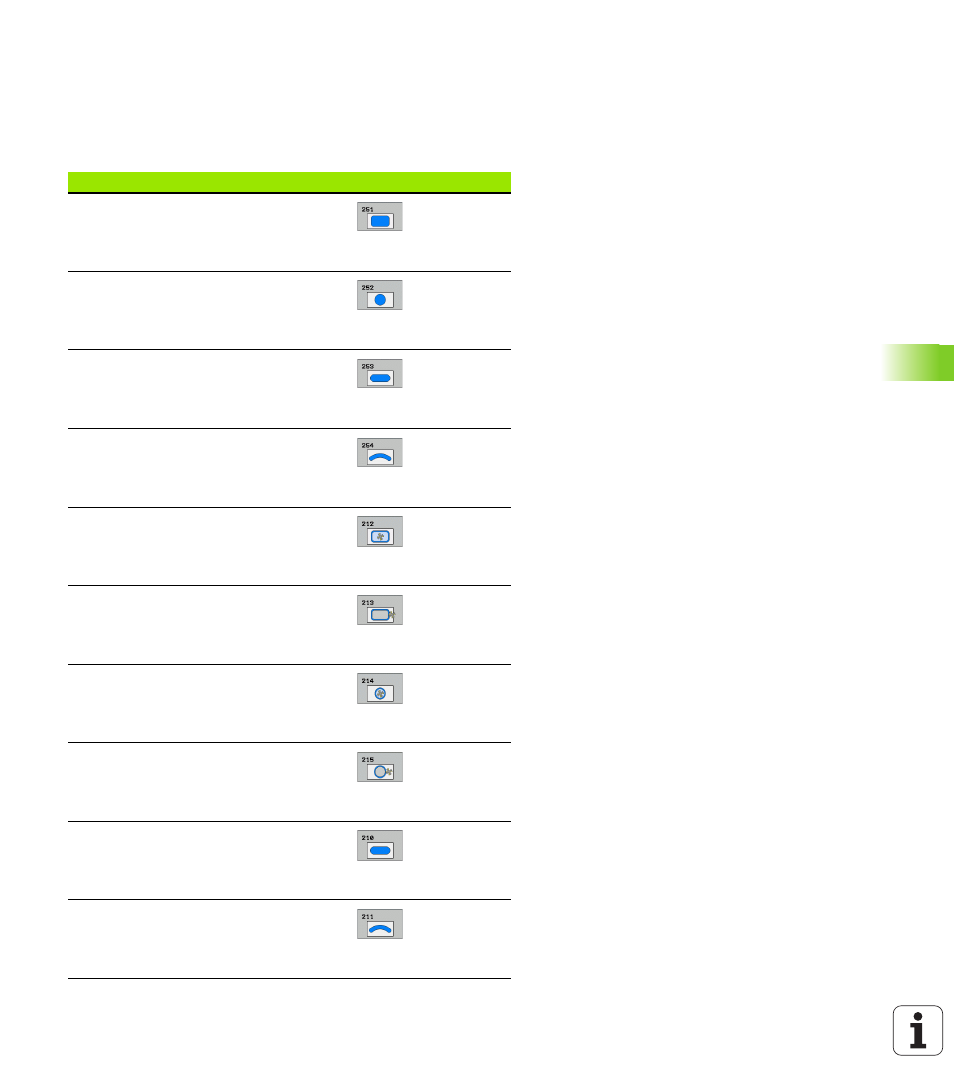

Cycle Soft key Page
G251 RECTANGULAR POCKET
Roughing/finishing cycle with selection
of machining operation and helical
plunging Page 324
G252 CIRCULAR POCKET
Roughing/finishing cycle with selection
of machining operation and helical
plunging Page 329
G253 SLOT MILLING
Roughing/finishing cycle with selection
of machining operation and reciprocal/
helical plunging Page 333
G254 CIRCULAR SLOT
Roughing/finishing cycle with selection
of machining operation and reciprocal/
helical plunging Page 338
G212 POCKET FINISHING (rectangular)
Finishing cycle with automatic pre-
positioning,
2nd set-up clearance Page 343
G213 STUD FINISHING (rectangular)
Finishing cycle with automatic pre-
positioning,
2nd set-up clearance Page 345
G214 CIRCULAR POCKET FINISHING
Finishing cycle with automatic pre-
positioning,
2nd set-up clearance Page 347
G215 CIRCULAR STUD FINISHING
Finishing cycle with automatic pre-
positioning,
2nd set-up clearance Page 349
G210 SLOT RECIP. PLNG
Roughing/finishing cycle with automatic
pre-positioning, with reciprocating
plunge infeed Page 351
G211 CIRCULAR SLOT
Roughing/finishing cycle with automatic
pre-positioning, with reciprocating
plunge infeed Page 353
