HEIDENHAIN iTNC 530 543
13.1 MOD F
unctions

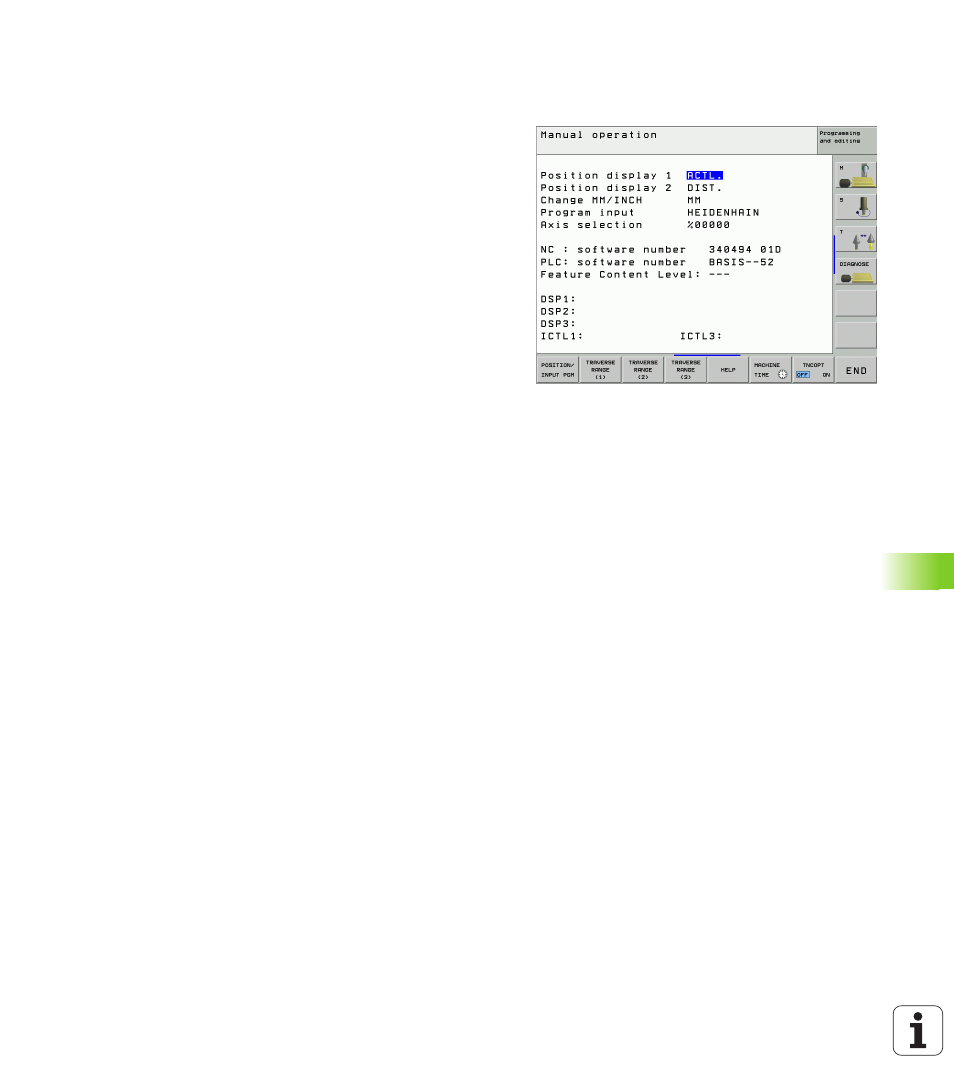

Overview of MOD functions
Depending on the selected mode of operation, you can make the
following changes:
Programming and Editing:
„ Display software numbers
„ Enter code number
„ Set data interface
„ Machine-specific user parameters (if provided)
„ HELP files (if provided)
„ Load service packs
Test Run:
„ Display software numbers
„ Enter code number
„ Set the data interface
„ Show the workpiece in the working space
„ Machine-specific user parameters (if provided)
„ Display HELP files (if provided)
In all other modes:
„ Display software numbers
„ Display code digits for installed options
„ Select position display
„ Unit of measurement (mm/inches)
„ Programming language for MDI
„ Select the axes for actual position capture
„ Axis traverse limits
„ Display reference points
„ Display operating time
„ HELP files (if provided)
