19
IK 5000 QUADRA-CHEK
Installation Instructions
Operating Instructions available at www.heidenhain.de
PC card and flyout installation
Warning! Risk of electrical shock
A risk of electrical shock exists if the OEM system or PC power is on.
To avoid the hazard, verify that the OEM system and PC power is off before
opening the PC enclosure..
Warning! Risk of electrical shock
A risk of electrical shock exists if the OEM system and PC are not properly
grounded.
To avoid the hazard, always use a 3-conductor (grounded) power cord and
ensure the ground is properly wired to the building installation.
Notice
This product and the PC contain components that can be damaged by
electrostatic discharge (ESD) . Observe precautions for handling ESD
sensitive devices and never touch connector pins unless properly grounded.
The installation of the IK 5000 PC card and associated flyouts requires only a screwdriver
and personal antistatic protection.
Prepare the PC
X X Shut down the PC
X X Disconnect the power cord from the PC
X X Open the PC enclosure. Refer to the PC manufacturer’s Operating Instructions for
enclosure access instructions.
X X Remove any covers or panels to gain access to the motherboard PCI expansion slots
Remove flyout blanks
X X Remove flyout blanks from the PC to accommodate the flyouts required for the specific
IK 5000 QUADRA-CHEK system

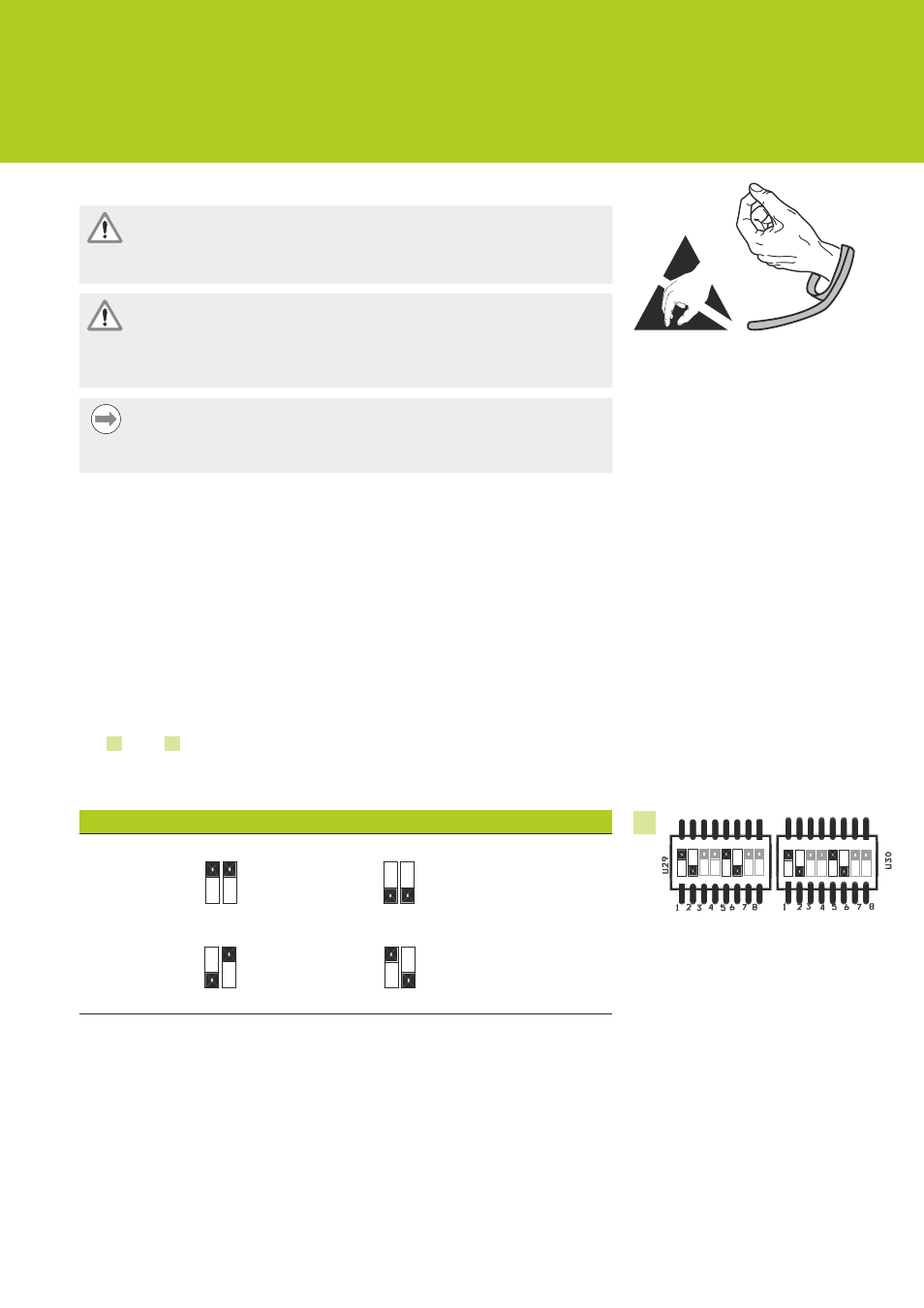

Set interpolation
XYZ A and Q H « 1 V
PP
encoder signals are interpolated. Interpolation can be
changed by the DIP switch settings on the IK 5000 QUADRA-CHEK card.
X X Using the point of a small screwdriver, change dip switch settings to the desired
interpolation. Refer to the Interpolation settings table below.
Interpolation settings
Possible settings for each switch pair (1-2, 5-6) using switch pair 1-2 as an example pair:
X20 Interpolation
X25 Interpolation
1 2
1 2 1 2
1 2
X100 Interpolation
X50 Interpolation
(Factory default)
Observe ESD handling precautions
I
Q Z Y X
DIP switches
