Motherboard Information
Chapter 2
Network Application Platforms

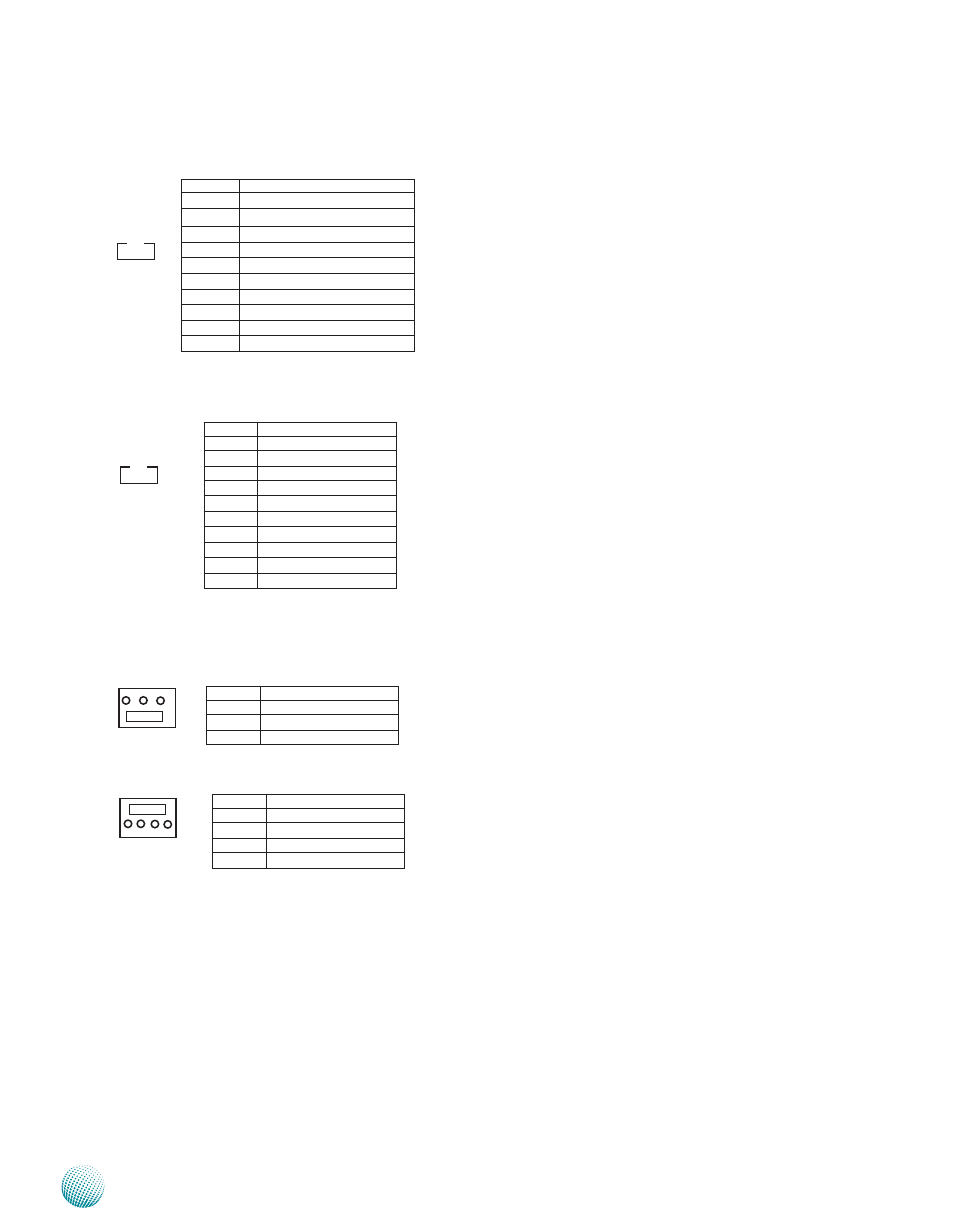

Serial Port #1 Connector (COMB2)
Generation 3 bypass firmware programming connector
(COMB3)
Case Open Signal Connector (CONN1): Connecting this
for detecting case open event
SATA Power Connector (PS4P1)
9 1
10 2
9 1
10 2
Pin No. Function
1 Data Carrier Detect (DCDB#)
2 Data Set Ready (DSRB#)
3 Receive Data (RXDB)
4 Request To Send (RTSB#)
5 Transmit Data (TXDB)
6 Clear To Send (CTSB#)
7 Data Terminal Ready (DTRB#)
8 Ring Indicator (RIB #)
9 Ground
10 KEY
Pin No. Function
1 NC
2 NC
3 Receive Data (RXDB)
4 Request To Send (RTSB#)
5 Transmit Data (TXDB)
6 Clear To Send (CTSB#)
7 NC
8 NC
9 Ground
10 P3V3_SB
Pin No. Function
1 GND
2 CASE OPEN
3 GND
1 2 3
4 3 2 1
Pin No. Function
1 P12V
2 GND
3 GND
4 P5V
