- 10 -

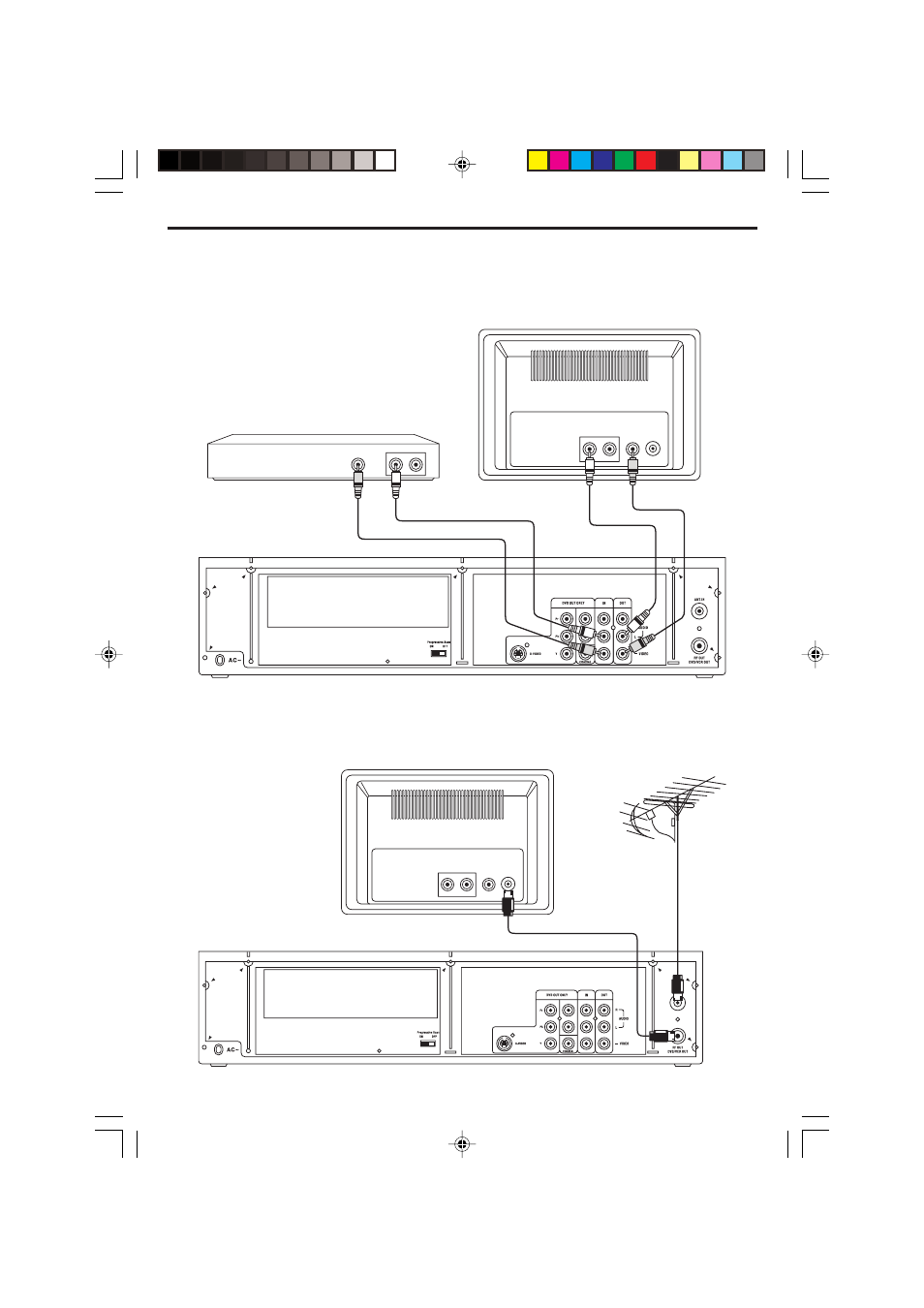

Connect the player to AUX Equipment from AV Jacks (Input)
If your auxiliary equipment has AV output jacks, connect the left audio (white) cable and
Video cable to the input jacks of the player and output the auxiliary signals to the TV set as
illustrated below diagram.
Connect the TV Antenna and RF Out to TV set if you do not have AV Jacks
If your TV set is old style and do not have AV jacks, use the below connections to record and display
your desired TV program on your old TV set.
AUX Equipment
AUDIO OUT
R L
VIDEO OUT
T V
AUDIO IN
VIDEO IN
R L
AV Input Cable
AV Ouput Cable
ANTENNA IN
Aerial or Cable TV
T V
AUDIO IN
VIDEO IN
R L
ANTENNA IN
