Assembly
SWW 1500 A1
GB
Slide the upper wall brackets ♦ B into the holding fi xtures C on the device's
rear panel and fi rmly screw these, together with the angle bracket D and
the lower wall brackets B , to the rear panel of the device. For this purpose
use the 7 screws M4 x 13 mm (see diagram Wall bracket assembly).

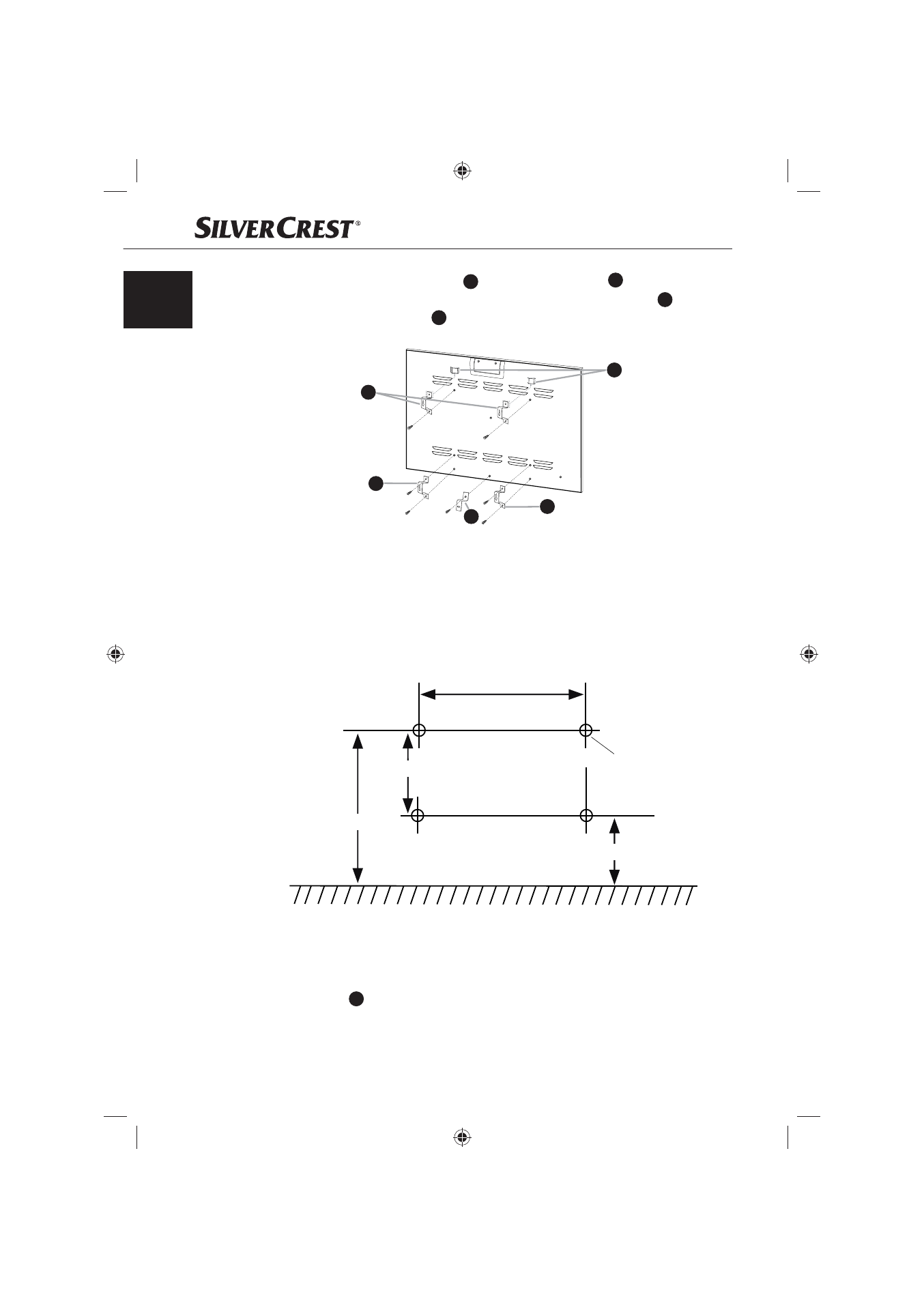

Diagram Wall bracket assembly
Mark two drill holes at a height of 600-650 mm and at a distance of 330 mm. ♦
Mark two more drill holes at a height of 250-300 mm and at a distance of ♦
330 mm. Make sure that the distance between the upper and lower drill
holes is 350 mm (see diagram Drill scheme).
Now with an electric drill and an 8 mm drill bit drill four holes to a depth of,
♦
at least, 40 mm.
330 mm
ø 8 mm, 40 mm
600 mm - 650 mm
350 mm
250 mm - 300 mm
Diagram Drilling scheme
Insert the rawlplugs into the holes and screw in the M4 x 42 screws. ♦
Allow the screw heads to stick out slightly.
Now hang the device on the screws and mark the drill hole for the angle
♦
bracket D .
B
C
D
B
B
