HOLD TABLE
CABINET DO NOT
HOLD THE
LEGS
DO NOT LEAN THE
TABLE ON ITS LEGS! CAUTION: Four strong adults are required to turn the table over as shown.
1. Lift the table off the ground.
2. Turn the table over.
3. Place it on all four feet at the same time on the ground.
36
6
8
9
4 5
4 5

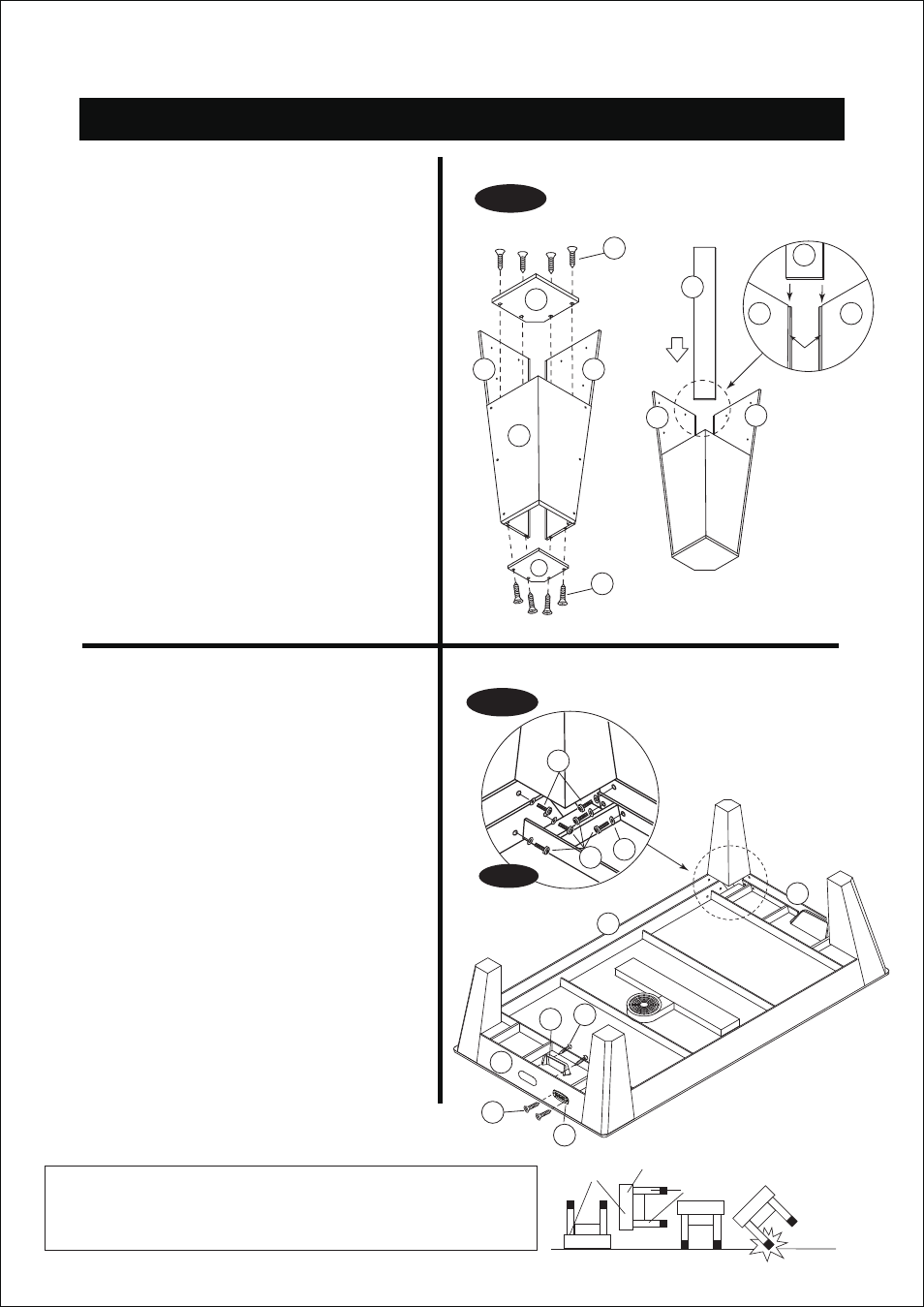

Assembly Instructions
Step 3:
Step 4:
7. Attach one Leg Base (#8) to the Leg Side
Boards (#4 & #5) using four Screws (#36).
8. Attach one Leg Top Board (#9) to the Leg Side
Boards (#4 & #5) using four Screws (#36).
9. Slide one Leg Side Board - D (#7) into the
grooves of the Leg Side Boards (#4 & #5).
10. Repeat the steps above for the other Legs.
11. Attach the Legs (assembled) to the Aprons
using four Bolts (#27), two Bolts (#29) and six
Washers (#28) per Leg. See FIG.4B.
12. Attach the Control Box (#15) to the End Apron
(#10) using two Screws (#35).
13. Attach the Goal Boxes (#22) to the End
Aprons (#3 & #10) using two Screws (#34) per
Goal Box.
14. Lift the table assembly from the floor with
four strong adults. Turn the table over and set
it down on the legs. Go back and make
sure that all connections are tight.
9
FIG.3
FIG.4
36
29
27
28
35
34
10
2
3
15
22
FIG.4B
4
5
7
7
4 5
Gooves
