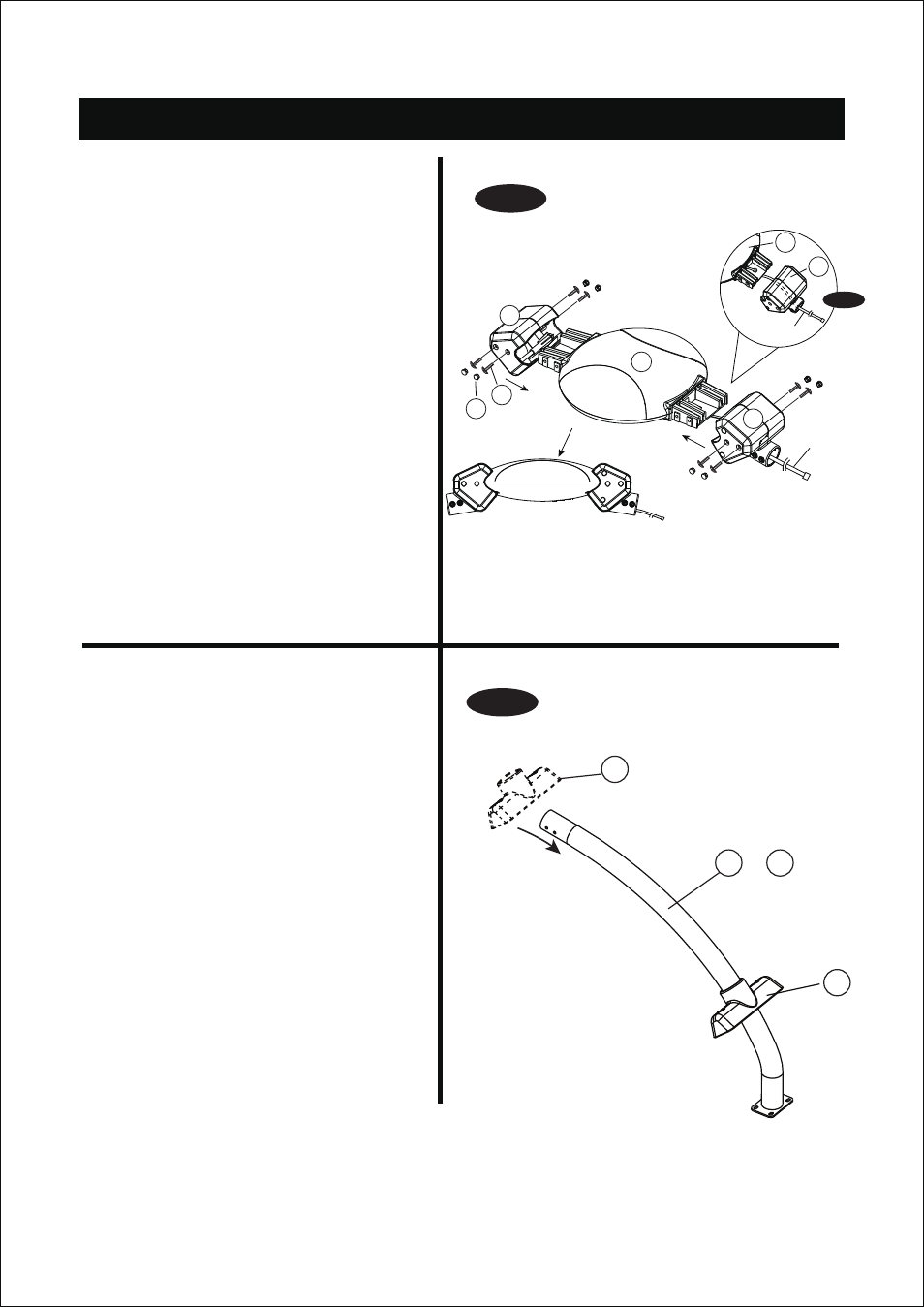

Assembly Instructions
Step 5:
Step 6:
15. Insert the Scorer Wire from the Scorer (#11)
through the opening on the Scorer Connector
(#13), and then attach the Scorer Connectors
(#13) to the Scorer Unit (#11) using four Bolts
(#31) per Connector. See FIG.5 and 5A.
16. Cover the Bolts (#31) with the Screw Caps
(#14).
17. Slide the Scorer Arm Holders (#12) onto the
Scorer Arms (#16 and #17) as shown in
FIG.6.
10
FIG.5
FIG.6
Scorer Wire
Scorer Wire
FIG.5A
13
14
31
13
13
12
12
16 17 or
