Page 10

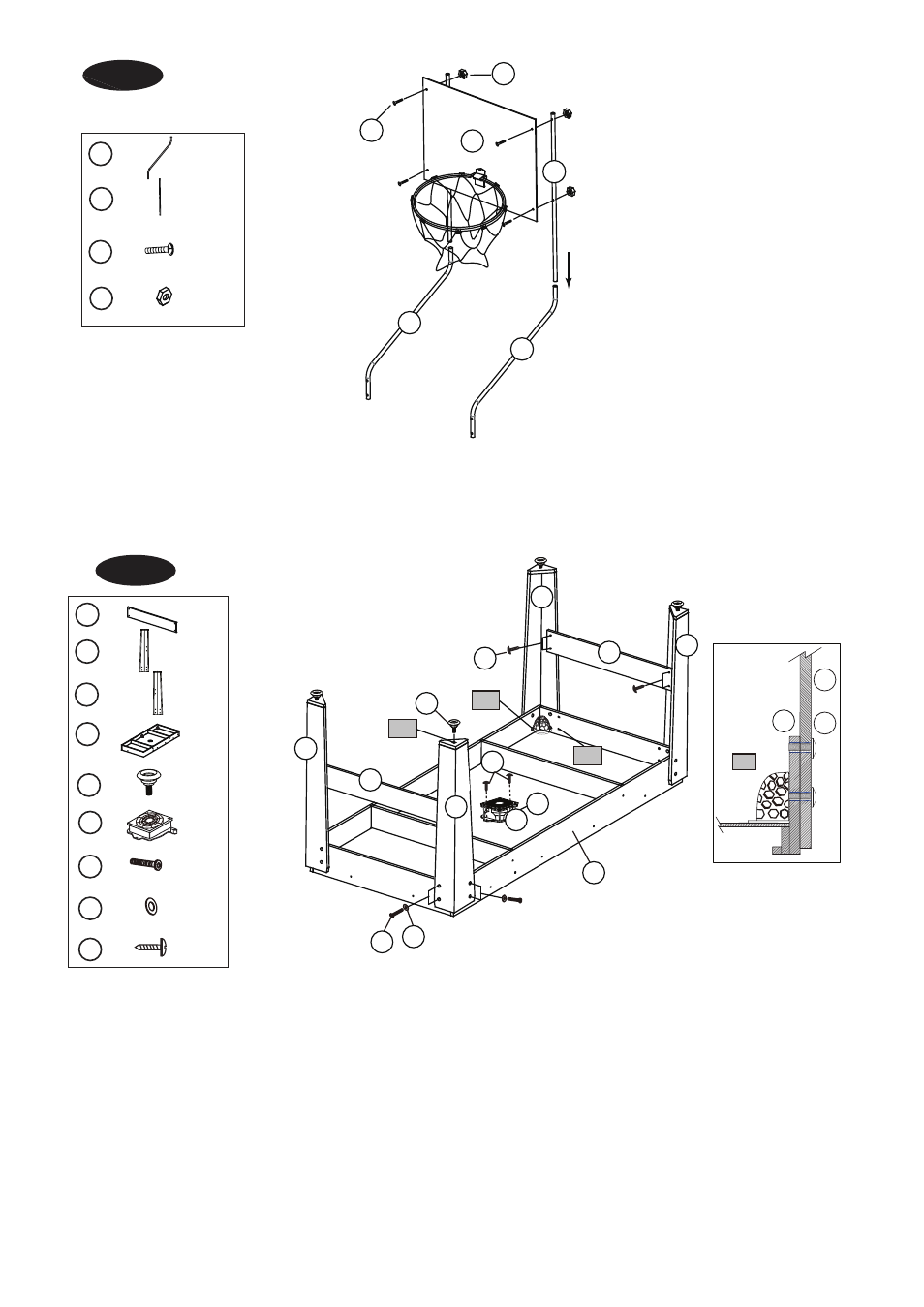

FIG.6
FIG.7
9
13
12
12
A7
10
A6
FIG. 6
X 2
X 4
A6
X 4
A7
X 2
12
13
FIG. 7
A5
A4
9
8
6
6
11
A9
A9
8
7
36
P3
P4
P3
9
7
X 2
8
X 2
6
X 2
7
X 16
A4
X 16
A5
X 10
A9
X 4
11
X 1
36
X 1
9
14. Attach the Backboard (#10) to the support Tubes-B (#13) using four Bolts (#A6) and four Nuts (#A7).
15. Insert the Support Tubes-B (#13) into the Support Tubes-A (#12).
16. Attach the Legs (#7 & #8) to the Hockey Cabinet (#9) using four Bolts (#A4) and four Washers (#A5) per leg.
17. Attach the End Leg Braces (#6) to the Legs using four Screws (#A9) per End Leg Brace.
18. Screw the Leg Levelers (#11) into the bottom of each leg.
19. Attach the Motor (#36) to the Hockey Frame (#9) using two Screws (#A9).
20. Lift the table assembly from the floor with two strong adults, turn it over, and set table on its legs in the
location where you play.
Go back and make sure that all connections are tight.
P8
9
7
8
&
