Medal Sports FH55410GR - Manual (Page 9)

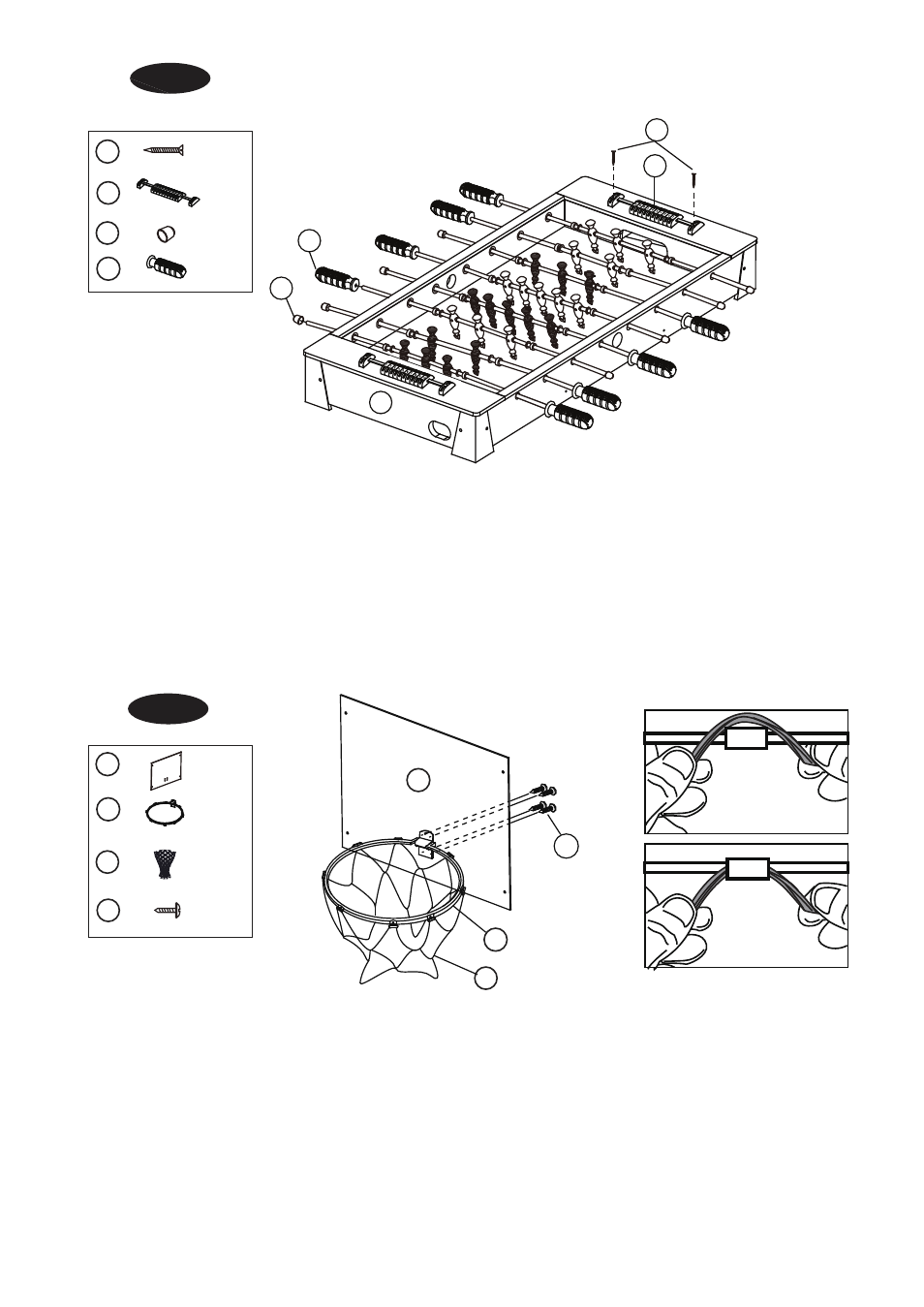

FIG.4
FIG.5
8
FIG. 4
X 8
X 8 26
X 2 18
X 4 A11
27
27
26
18
A11
2
FIG. 5
A
B
X 1
X 1 15
X 4
A10
X 1 10
14
A10
15
10
14
11. Attach the Scorers (#18) to the End Aprons (#2) using two Screws (#A11) per Scorer.
12. Place the Handles (#27) onto the Rods which has a hole. And then place the Rod End Caps (#26)
onto the other side of the Rods.
13. Attach the Basketball Rim (#14) to the Backboard (#10) using four Screws (#A10). And install the
Basketball Net (#15) to the Rim (#14).
