YOU ARE NOW READY TO PLAY!
BASKETBALL GAME
X 1 28
BILLIARD GAME
X 1 16
X 4
A13
X 2 17
16
17
13
12
#41
#42
12
A13
Correa de Velcro
16
17

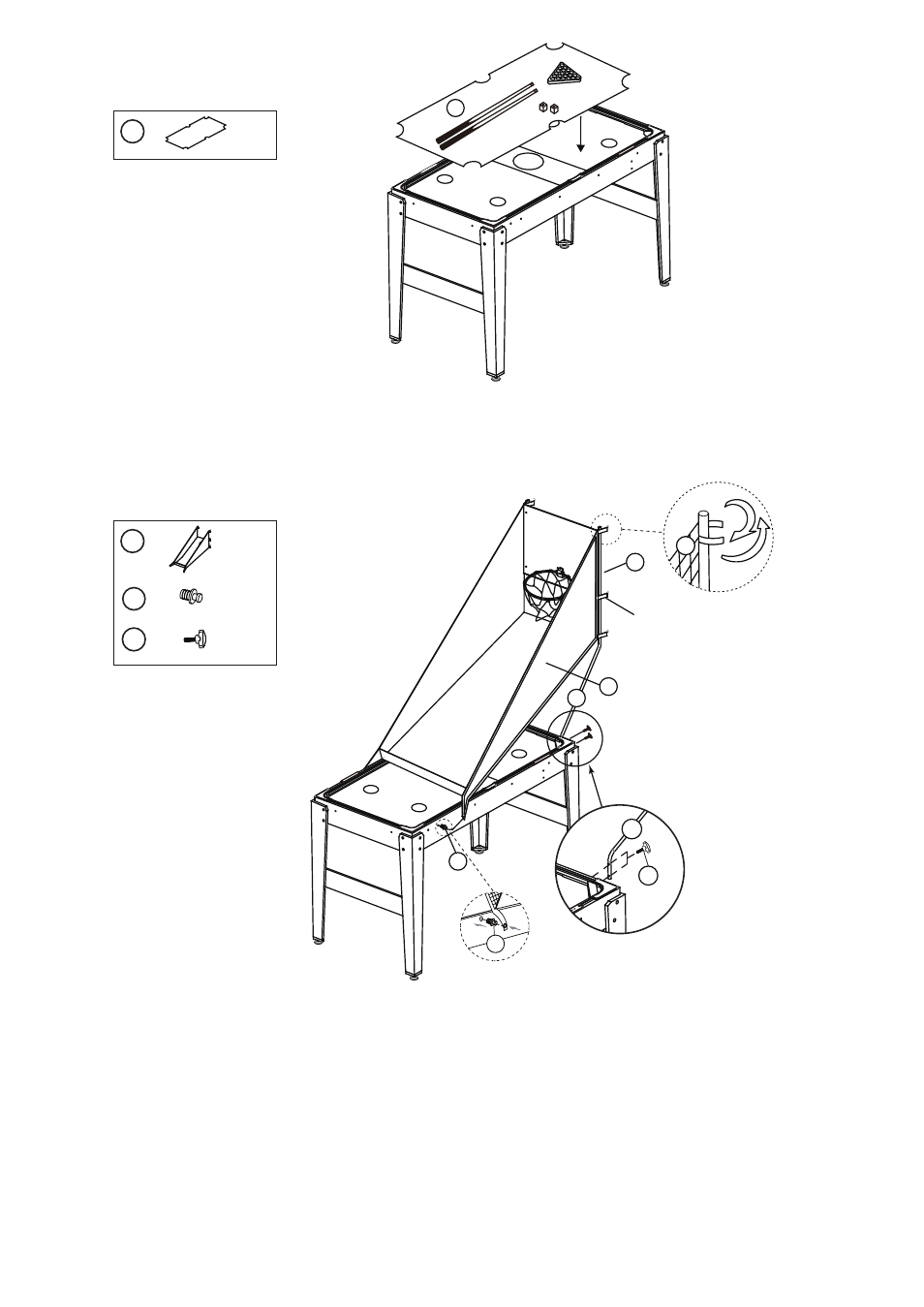

Place the Billiard Playfield (#28) on the surface of the Hockey Table.
1. Attach the Support Tubes-A (#12) to the Hockey Cabinet using two Butterfly Bolts (#A13) per Support
Tube.
2. Then attach the Basketball Return Net (#16) to the Support Tubes-B (#13) using the Velcro Straps, and
attach to the Hockey Cabinet using two Rivet Plugs (#17).
