6
ASSEMBLY INSTRUCTIONS:

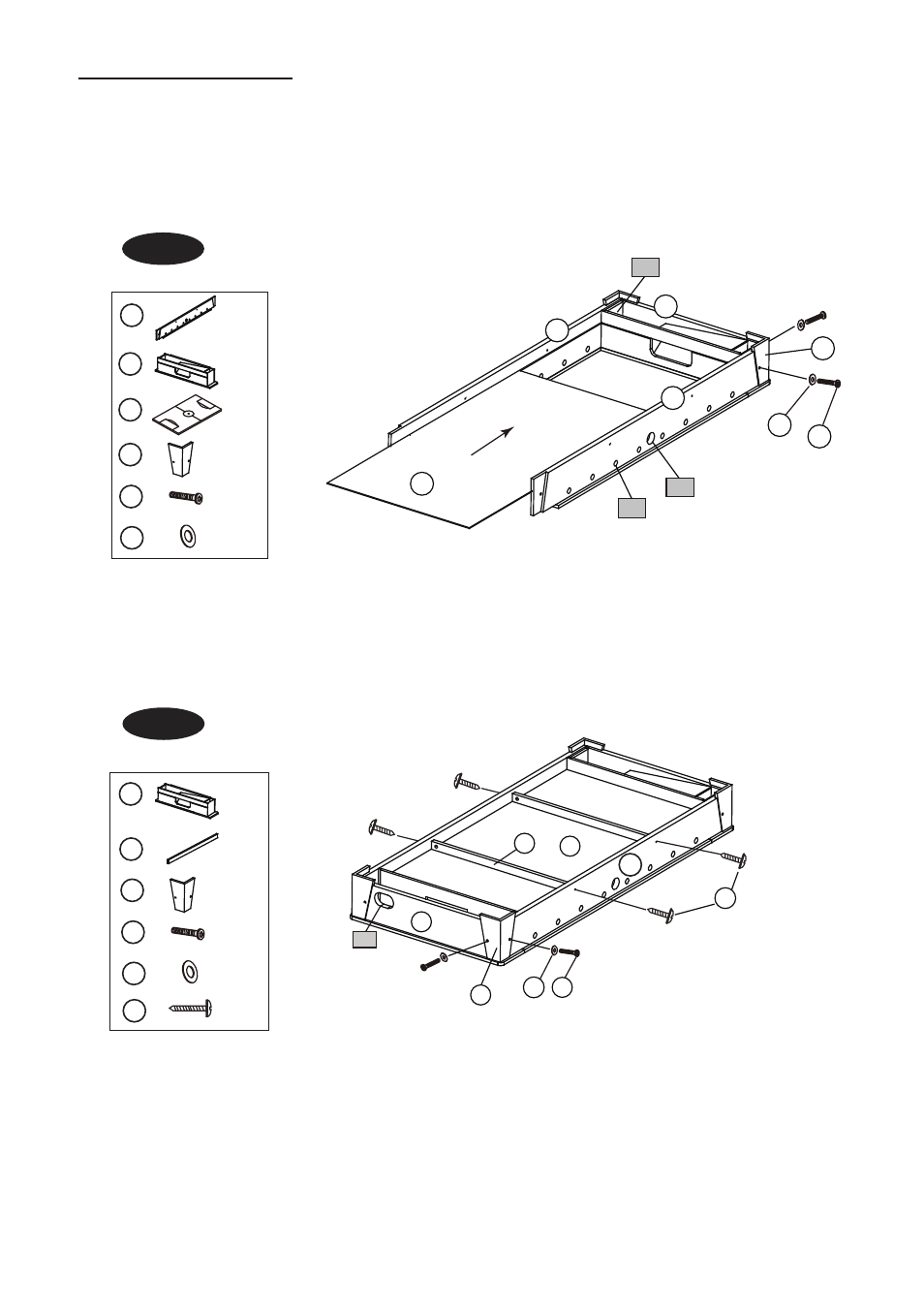

FIG.1
FIG. 1
X 1
X 1
X 2
X 2
1
2
3
5
X 4
A2
X 4
A3
1
1
2
5
A2
A3
3
P1
P2
P4
FIG.2
FIG. 2
X 2
5
X 4
A2
X 4
A3
A8
X 4
X 1
2
X 2
4
1. Find a clean, level place to begin the assembly of your Combo Table. The table will be assembled upside
down and then turned over on its legs once and then turned over on its legs once the assembly
completed.This game table is heavy, and turning it over will require at least two strong adults.
2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the parts
list page. Carefully cut or tear the four corners of the box so that the bottom of the box can be used as your
work surface.
3. Attach two Apron Corners (#5) to the Side Aprons (#1) and End Aprons (#2) using two Bolts (#A2) and two
Washers (#A3) per Apron Comer.
Note: Do not tighten the Bolts at this time.
4. Slide the Playfield (#3) (drawing upside-down) into the grooves of the Side and End Aprons (#1 & #2).
5. Attach the Apron Corners (#5) to the other side of the End Aprons (#2) and Side Aprons (#1) using four
Bolts (#A2) and four Washers (#A3).
6. Place the Support Braces (#4) on the Playfield (#3), and then attach them to the Side Aprons (#1) using two
Screws (#A8) per Support Brace.
Go back and make sure that all connections are tight.
A8
4
3
2
5
A3 A2
1
P5
