10

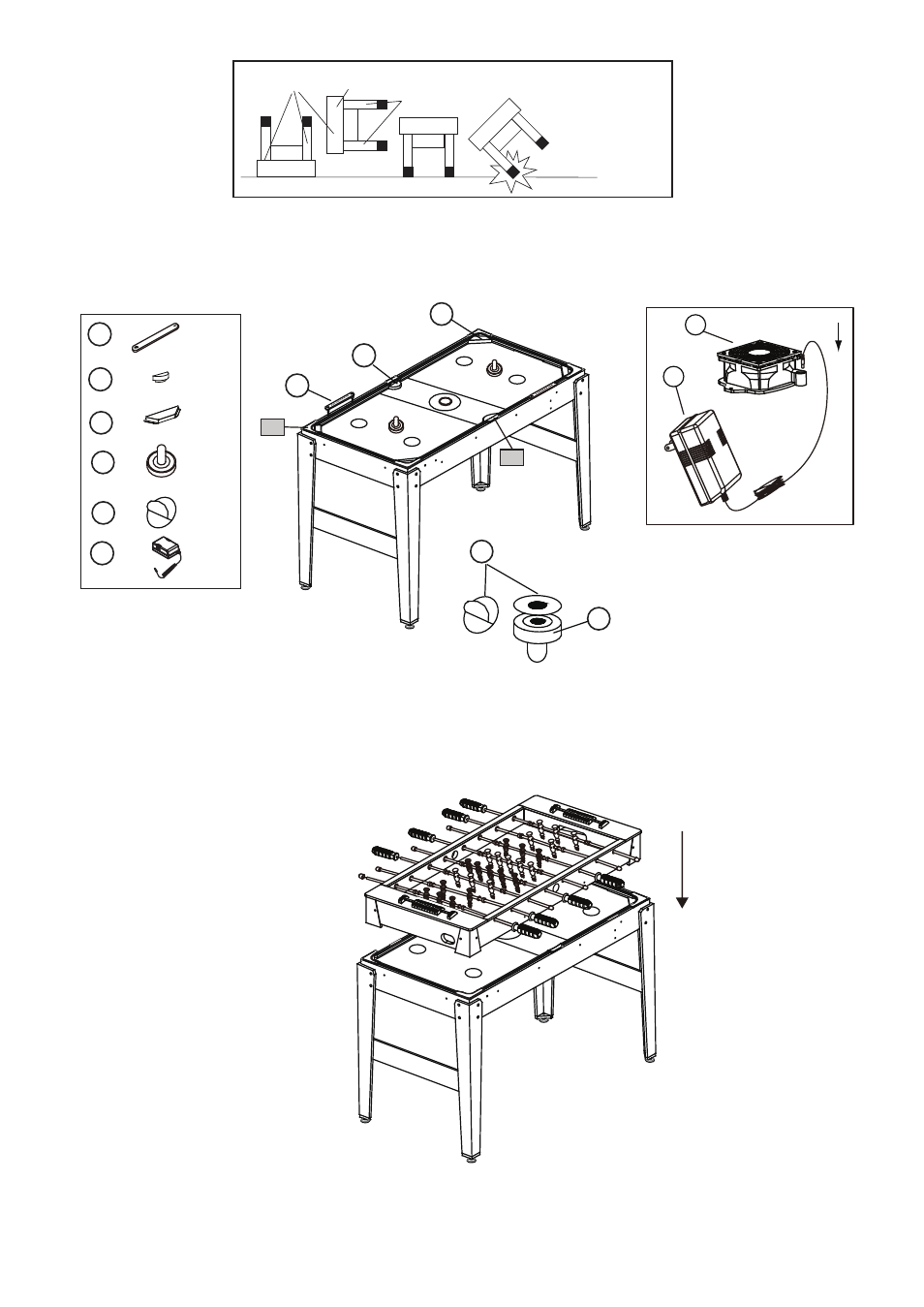

HOLD TABLE
CABINET
DO NOT HOLD THE LEGS DO NOT LEAN THE TABLE ON ITS LEGS!
CAUTION: Two strong adults are recommended to turn the
table over as shown.
1. Lift the table off the ground.
2. Turn the table over.
3. Place it on all four feet at the same time on the ground.
HOCKEY GAME
SOCCER GAME
Place the Soccer Table on the Hockey Table.
33
34
X 2
X 4 31
X 2
33
X 2 34
X 2 29
30
X 1 35
35
36
1. Place the Side Stop Boards (#30) and the End Stop Boards (#31) in the place. Then insert the Scorers (#29).
2. Tear off the backside paper of the Felt Pad (#34) and stick them at the bottom of the Pushers (#33). And insert
the Adaptor (#35) into the DC Jack on the Motor.
This power unit is intended to be
correctly orientated in a vertical or
vertical or floor mount position.
31
29
30
P7
P6
