FIG. 11A
FIG. 11
BL55412-14 (Continued on the next page.) 10 www.themdsports.com
X 1
X 2 35
24
9
A11
X 2
X 1
24
9
A11
35
X 2
X 2
A7
A14
36 X 2
FIG.11

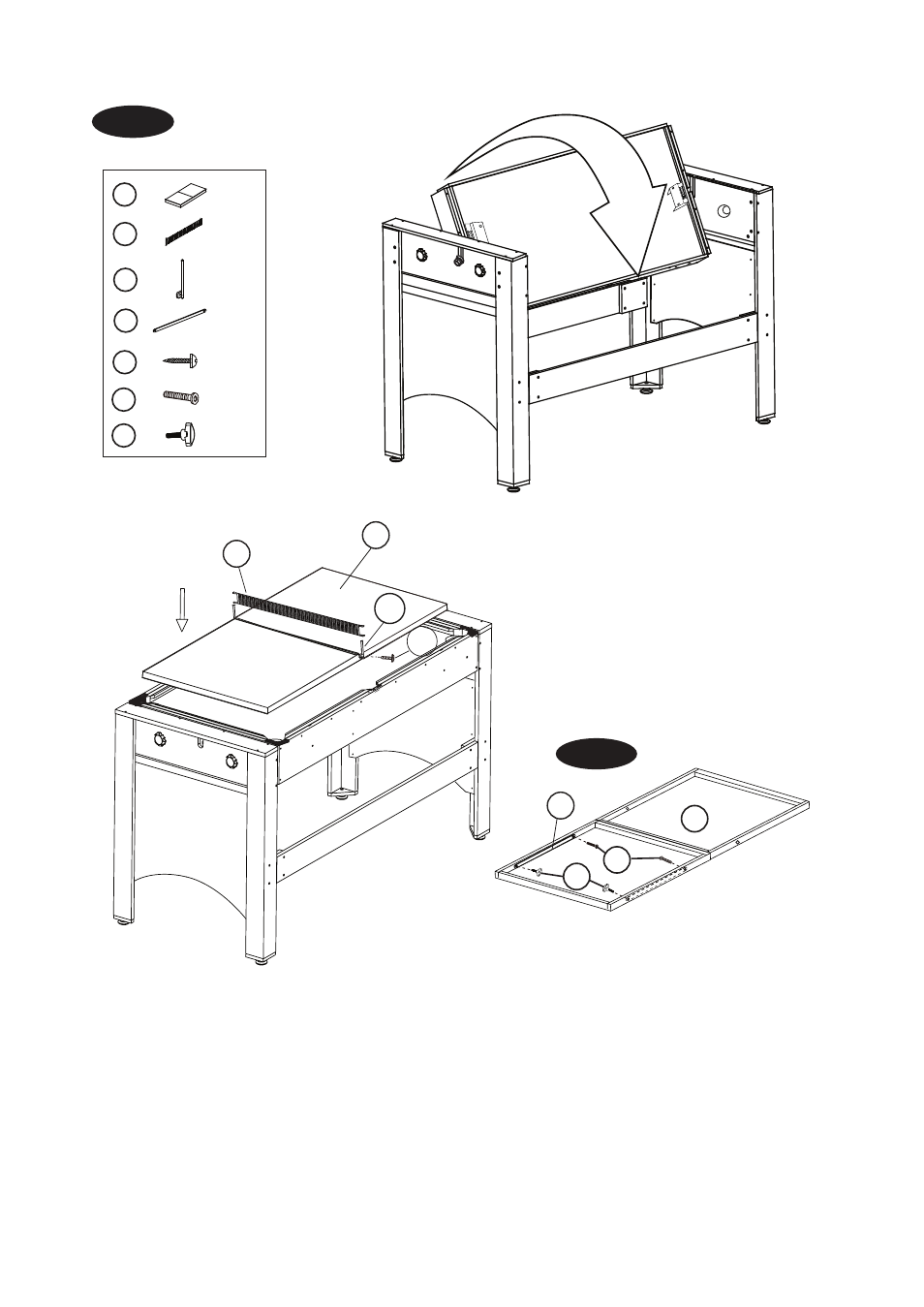

21. Turn over the Table Tennis Top (#9) and place it on the Billiard surface. And then Insert the Net Posts (#35)
and Net (#24) on the Table Tennis Top using two Screws (#A11). See FIG. 11.
20. Attach two Bracket (#36) to the back side of Table Tennis Top (#9) using two Butterfly Bolts (#A14) and
two Bolts (#A7). See FIG. 11A
A14
A7
9
36
