Page 9

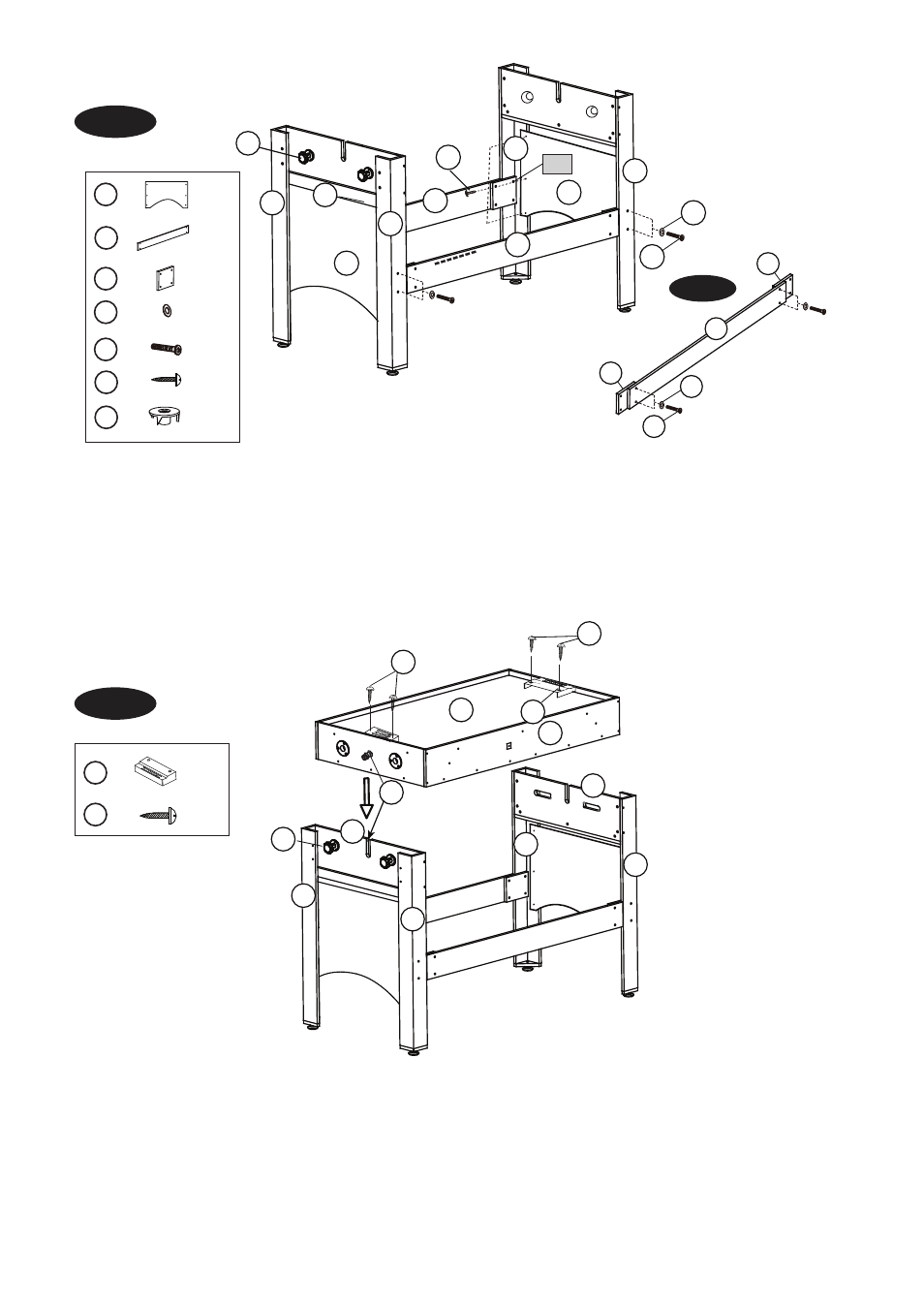

FIG.7
13.
Attach the Side Leg Brace Helper Board (#12) to Side Leg Brace (#11) using two Bolts (#A4) and two
Washers (#A3) per Side Leg Brace Helper Board.
See FIG. 7A.
14. Attach the Pre-assembled FIG.7A to Legs (#6 & #7) using four Bolts (#A4) and four Washer (#A3) per
Pre-assembled FIG.7A.
See FIG. 7.
15. Attach the End Leg Brace (#10) to Legs (#6 & #7) using six Screws (#A10) per End Leg Brace.
See FIG. 7.
FIG.8
16.
Attach the Goal Box (#16) to
Hockey Frame (#1)
using two Screws (#A10) per Goal Box.
See FIG. 8.
17. You are now ready to place the assembly (#1 and #2) onto the base frame. Firmly tighten each of the Lock
Pin (#17) on each side of the leg panel towards each other. This will lock the table top to the base frame and
still allow the table top to spin freely.
See FIG. 8.
FIG. 7
FIG. 8
BL55412-14 (Continued on the next page.) 8 www.themdsports.com
X 4
X 2
10
X 2
11
12
X 16
A4
A3
X 16
A10
X 12
P2
X 16
2
3
4
5
6
7
8
9
0
1
16
X 2
A10
X 4
2
1
4
17
33
4
6
7
7
6
0
1
2
3
4
5
6
7
8
9
A10
A10
16
FIG. 7A
A3
A4
11
12
12
A3
A4
10
10
A10
11
11
6
7
6
7
P2
17
17
