FIG.3

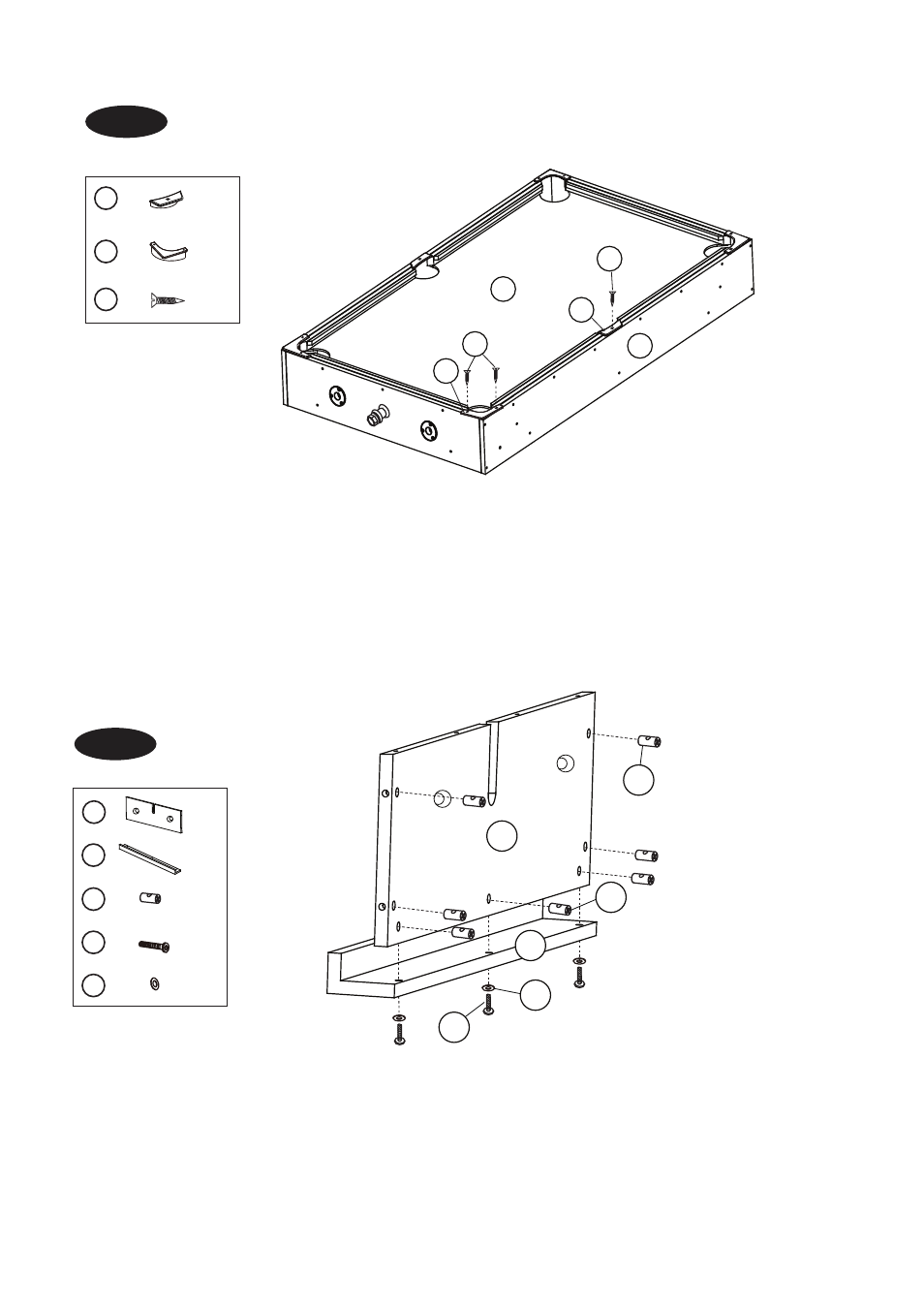

6. Attach the Corner Pocket Cap (#19) to the Hockey Frame (#1) using two Screws (#A5) per Corner Pocket
Cap. See FIG. 3
7. Attach the Side Pocket Cap (#18) to the Hockey Frame (#1) using one Screw (#A5) per Side Pocket Cap.
See FIG. 3
FIG. 3
FIG. 4
FIG.4
8. Stopper the Seven Barrel Nut (#A12) to Leg Pedestal (#4) per Leg Pedestal . See FIG. 4.
9. Attach Leg Pedestal (#4) to the Leg Pedestal-Bottoml (#5) using three Bolts (#A2) and three Washer (#A3)
per Leg Pedestal. See FIG. 4.
