2-1
ASUS VA27D Series LCD Monitor
2.1
Assembling the monitor arm/base

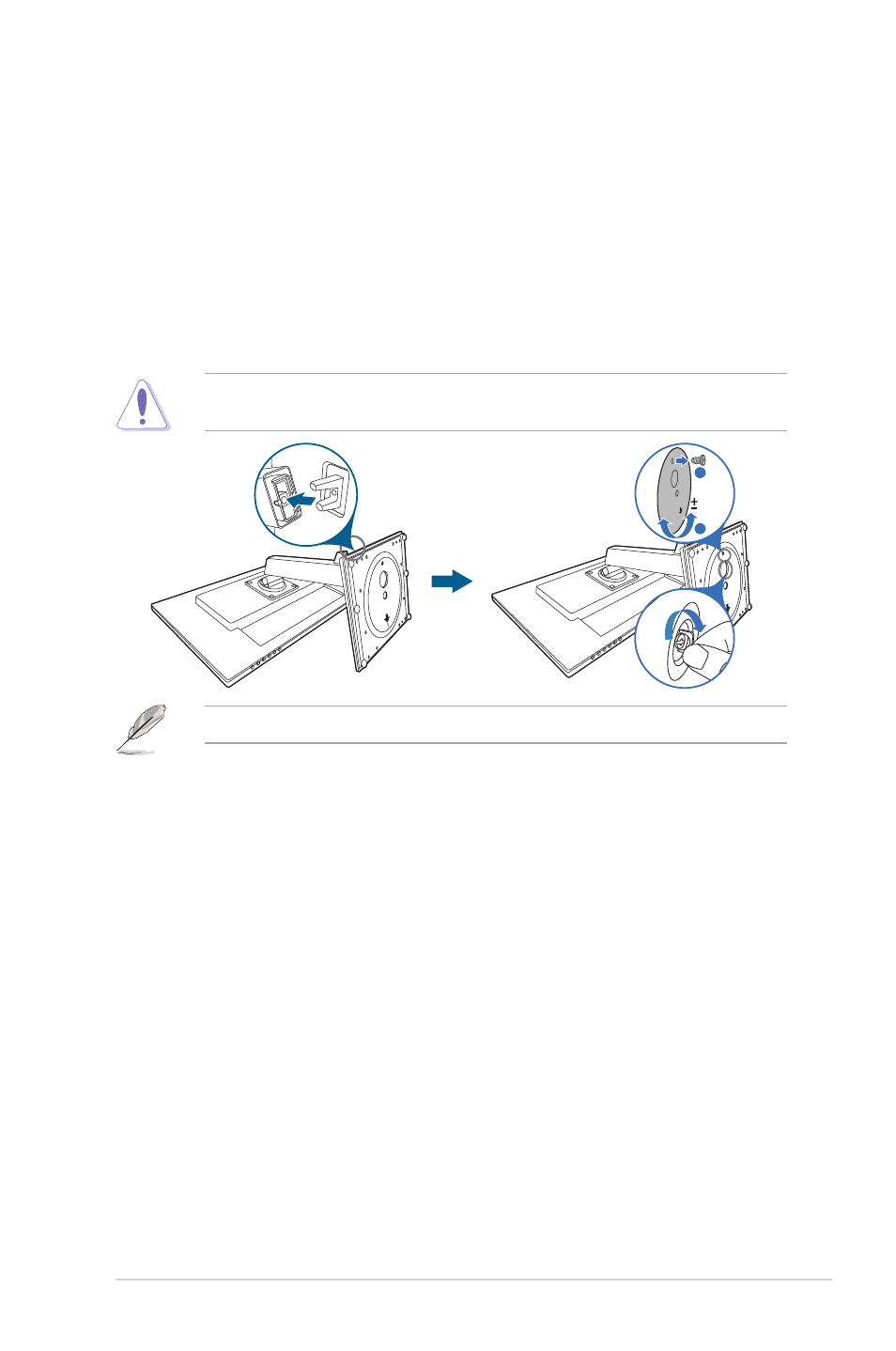

To assemble the monitor base:
1. Have the front of the monitor face down on a table.
2.
Attach the base into the arm, making sure the tab on the arm fits into the
groove on the base.
3. Fix the base to the arm by fastening the bundled screw.
4. Remove the stop screw at the bottom of the base to allow 180
˚
swiwel
adjustment from either left or right.
We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
180°
1
2
Base screw size: M6 x 16.5 mm.
