Interconnections
25
Apollo x16 Hardware Manual
Apollo Expanded: Multi-Unit Thunderbolt 3 Wiring

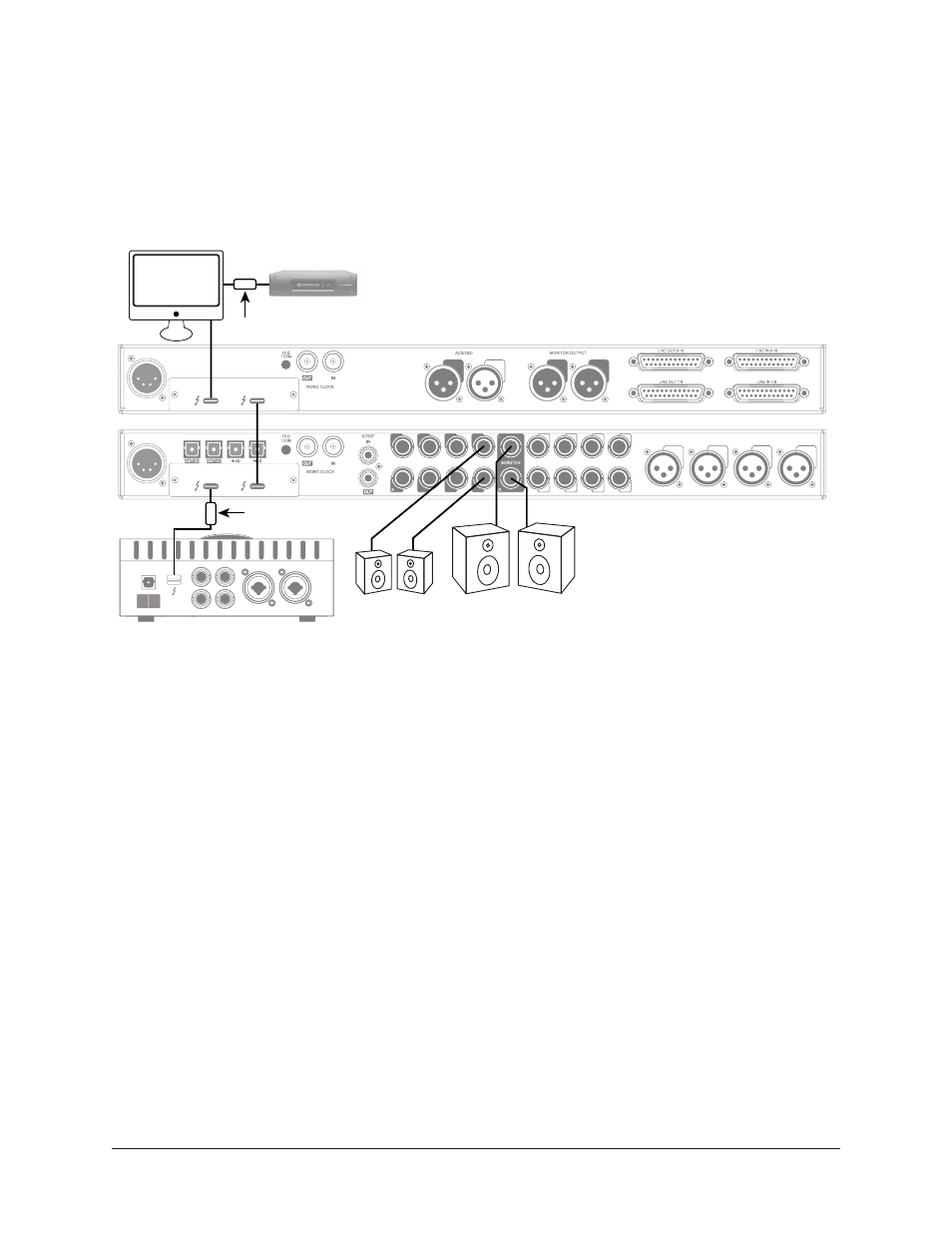

The diagram below illustrates an example of how to interconnect multiple Apollo units
and the host computer via Thunderbolt 3.
Important:
For complete details about system operation when multi-unit
.
Connecting multiple Apollo X units via Thunderbolt 3
Apollo Expanded Wiring Notes
• Apollo device ordering and Thunderbolt ports used (second port on Apollo vs.
second port on computer, placement within daisy chain, etc) is not important.
• In this example diagram, an Apollo x8 is the monitor (master) unit designated in
the Console Settings window. Connect speakers (including ALT speakers) and any
cue outputs to the monitor unit only.
• Do not interconnect any Word Clock, FireWire, ADAT, or MADI ports between any
Apollo units. All Apollo clocking is automatically managed via Thunderbolt.
• Up to four Apollo units and six UAD devices total can be combined within the
same system.
• The computer and all Apollo/UAD units must be connected to the same
Thunderbolt bus.
• Apollo X-series units with Thunderbolt 3 can be mixed with older Apollo units with
Thunderbolt 2 by using compatible Thunderbolt 3 to Thunderbolt 2 adapters.
Note: On Mac systems only, Apollo X can be connected to Thunderbolt 1 and
Thunderbolt 2 computers via the Apple Thunderbolt 3 to Thunderbolt 2 adapter.
Visit
for details.
S/PDIF
ADAT S/MUX
POWER IN
+12VDC 9.0A
WORD CLOCK
3
5
6
4
2
1
MONITOR
R
L
4
6
2
1
3
5
1
2
75 Ω
TERM
OUTPUT (ALT/SURROUND)
7
LINE INPUT
8
7
4
3
MIC INPUT
UNIVERSAL AUDIO, INC.
MIC/LINE 1
MIC/LINE 2
3
L
4
R
LINE OUT
MONITOR
OPTICAL IN
OFF ON
POWER
LINE OUT 9-16
LINE OUT 1-8
LINE IN 1-8
LINE IN 9-16
1
2
AES/EBU
MONITOR OUTPUT
+12VDC 9.0A
WORD CLOCK
75 Ω
TERM
IN
OUT
POWER IN
UNIVERSAL AUDIO, INC.
Expander Unit
UAD-2 Satellite Thunderbolt
Monitor Unit
Thunderbolt 3
Computer
IMPORTANT:
Connect speakers
and cue outputs to
Monitor Unit ONLY
Expander Unit
Monitor Speakers
ALT Speakers
TB3 to TB2 Adapter
TB3 to TB2 Adapter
