1-14 Chapter 1: Product Introduction
Chapter 1

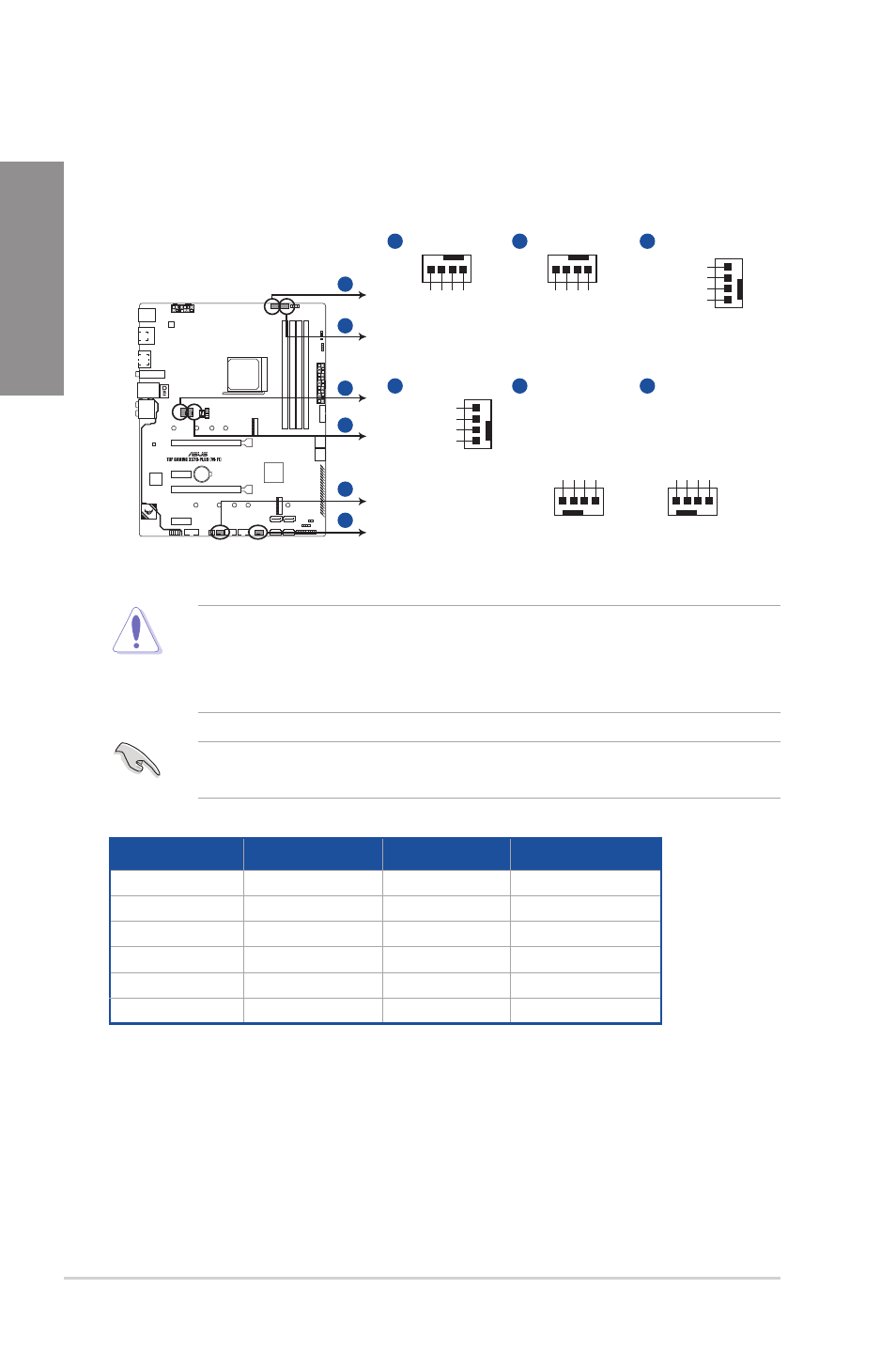

7. CPU, CPU optional, and chassis fan connectors; AIO pump connectors (4-pin
CPU_FAN, 4-pin CPU_OPT, CHA_FAN1-3; 4-pin AIO_PUMP)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
• DO NOT forget to connect the fan cables to the fan connectors. Insufficient air flow
inside the system may damage the motherboard components. These are not jumpers!
Do not place jumper caps on the fan connectors!
• Ensure to fully insert the 4-pin CPU fan cable to the CPU fan connector.
Connect the pump cable from the all-in-one cooler (AIO cooler) to the AIO_PUMP header,
and connect the fan cable to the CPU fan connector.
Header Max. Current Max. Power Default Speed
CPU_FAN 1A 12W Q-Fan Controlled
CPU_OPT 1A 12W Q-Fan Controlled
CHA_FAN1 1A 12W Q-Fan Controlled
CHA_FAN2 1A 12W Q-Fan Controlled
CHA_FAN3 1A 12W Q-Fan Controlled
AIO_PUMP 1A 12W Full Speed
A
B
C
D
E
F
E
CPU_FAN A
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
CHA_FAN3 D CHA_FAN2
GND CHA FAN PWR CHA FAN IN CHA FAN PWM GND CHA FAN PWR CHA FAN IN CHA FAN PWM
CPU_OPT C
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
F
B CHA_FAN1
CHA FAN PWM
CHA FAN IN
CHA FAN PWR
GND
AIO_PUMP
AIO PUMP PWM
AIO PUMP IN
AIO PUMP PWR
GND
TUF GAMING X570-PLUS (WI-FI) Fan connectors
