ASUS TUF GAMING X570-PLUS (WI-FI)
2-3
Chapter 2
2.1.2
CPU installation

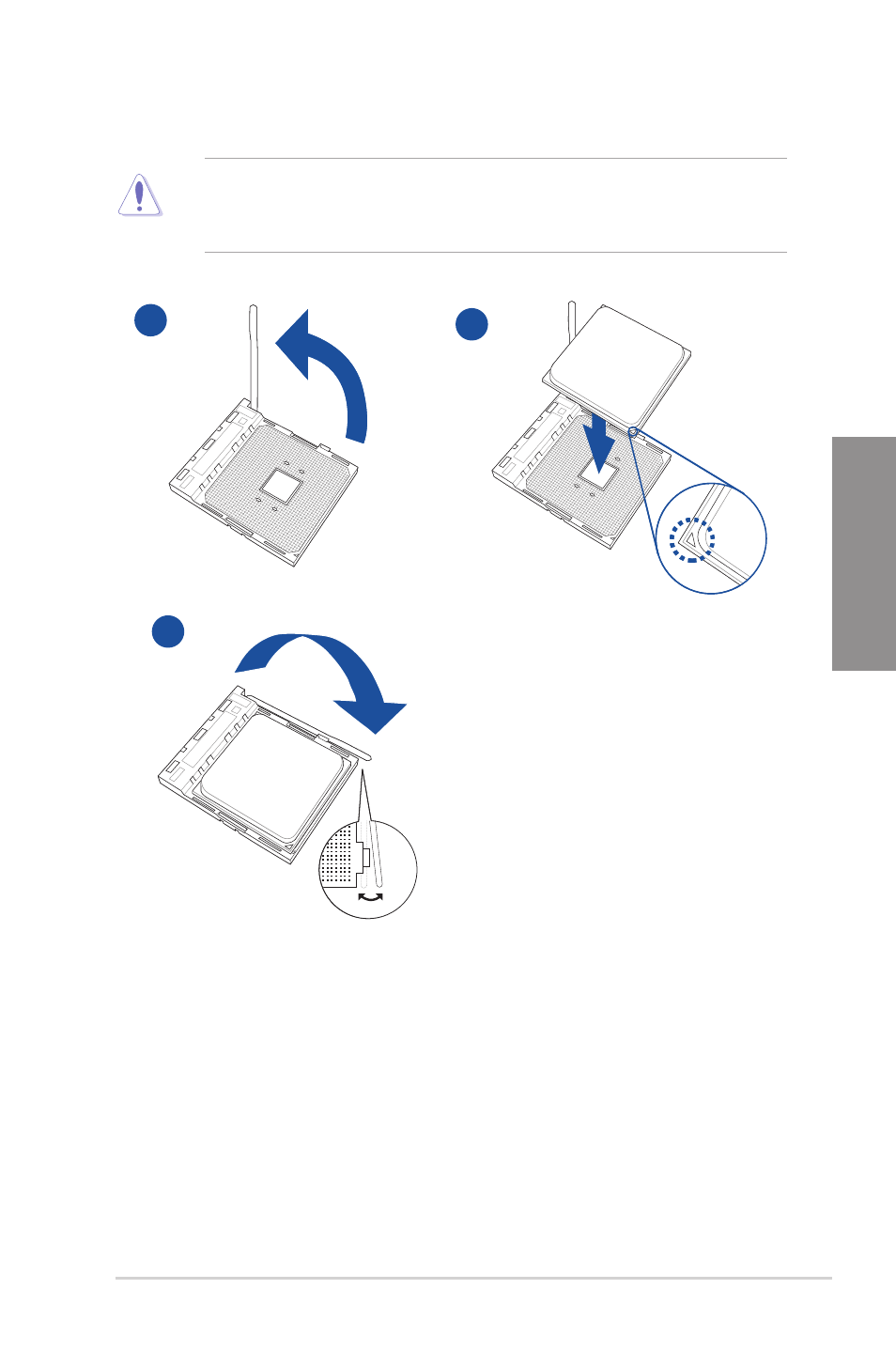

The AMD AM4 socket is compatible with AMD AM4 processors. Ensure you use a CPU
designed for the AM4 socket. The CPU fits in only one correct orientation. DO NOT force
the CPU into the socket to prevent bending the connectors on the socket and damaging
the CPU!
1
2
3
