ASUS TUF GAMING X570-PLUS (WI-FI) 1-17
Chapter 1

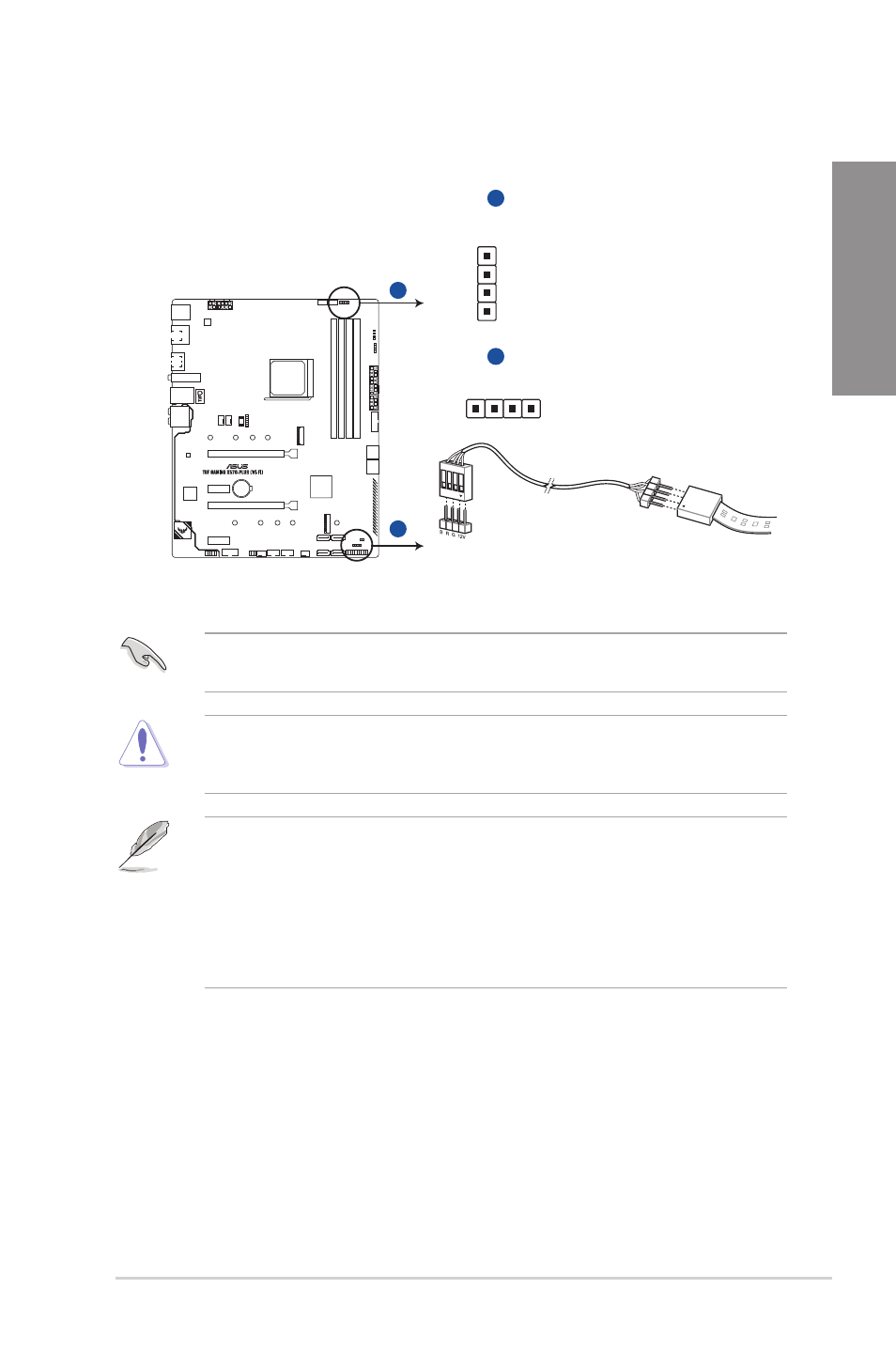

11. AURA RGB headers (4-pin RGB_HEADER1/2)
These connectors are for RGB LED strips.
The RGB header supports 5050 RGB multi-color LED strips (12V/G/R/B), with a maximum
power rating of 3A (12V), and no longer than 3 m.
Before you install or remove any component, ensure that the ATX power supply is switched
off or the power cord is detached from the power supply. Failure to do so may cause severe
damage to the motherboard, peripherals, or components.
• Actual lighting and color will vary with LED strip.
• If your LED strip does not light up, check if the RGB LED extension cable and the
RGB LED strip is connected in the correct orientation, and the 12V connector is
aligned with the 12V header on the motherboard.
• The LED strip will only light up when the system is operating.
• The LED strip is purchased separately.
PIN 1
PIN 1
+12V
G
R
B
TUF GAMING X570-PLUS (WI-FI) RGB Header
RGB_HEADER1
+12V G R B
RGB_HEADER2
A
B
A
B
