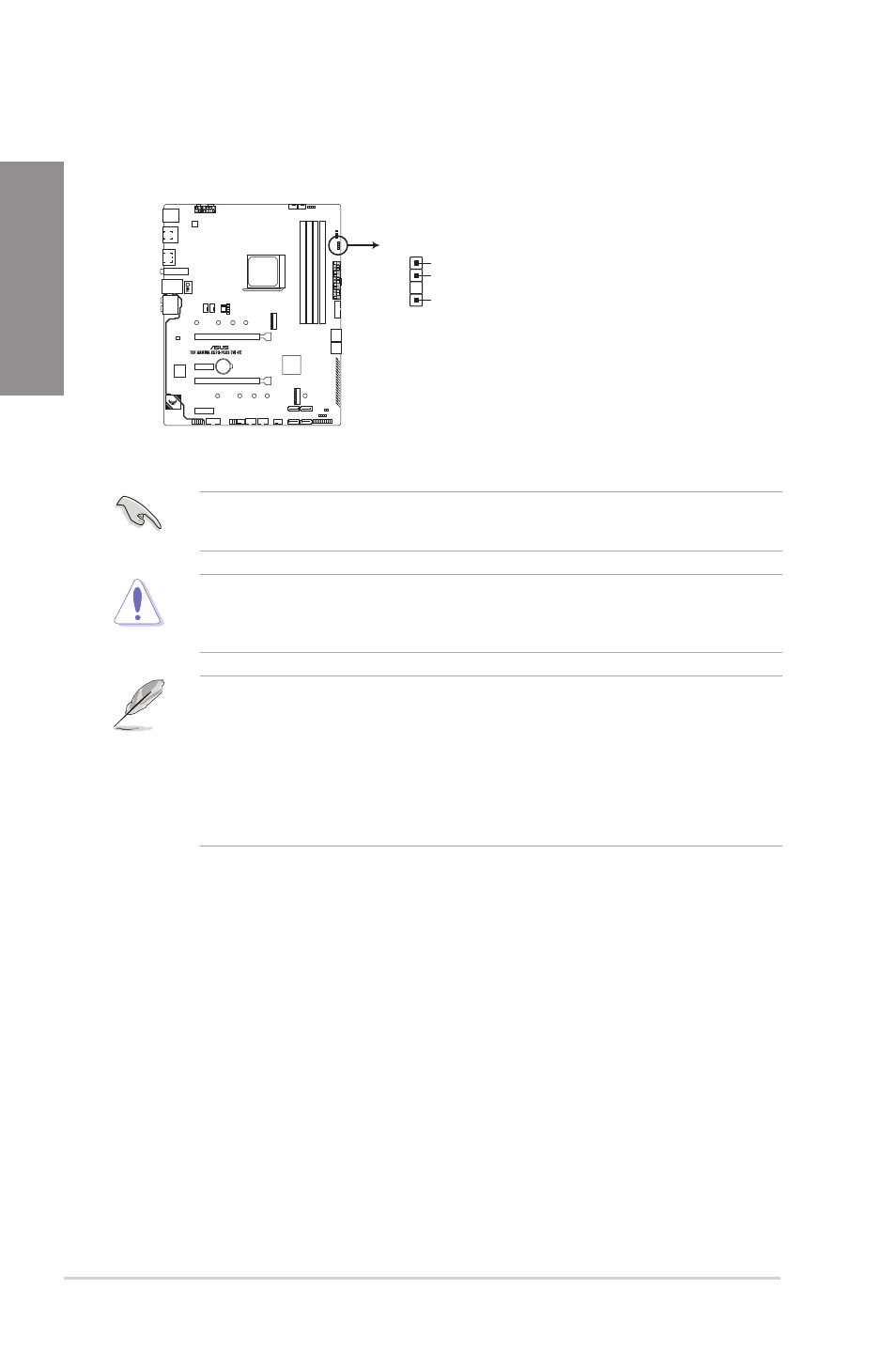

12. Addressable RGB Gen 2 header (3-pin ADD_GEN2)
This connector is for individually addressable RGB WS2812B LED strips or WS2812B
based LED strips.
TUF GAMING X570-PLUS (WI-FI) ADD header
+5V
Data
Ground
PIN 1
ADD_GEN2
The addressable gen 2 RGB header supports WS2812B addressable RGB LED strips (5V/
Data/Ground), with a maximum power rating of 3A (5V) and a maximum of 120 LEDs
Before you install or remove any component, ensure that the ATX power supply is switched
off or the power cord is detached from the power supply. Failure to do so may cause severe
damage to the motherboard, peripherals, or components
• Actual lighting and color will vary with LED strip.
• If your LED strip does not light up, check if the RGB LED extension cable and the
RGB LED strip are connected in the correct orientation, and the 12V connector is
aligned with the 12V header on the motherboard.
• The LED strip will only light up while the system is operational.
• The LED strip is purchased separately.
