5
1 . Headphone Level Pot
Controls the volume level sent to the stereo headphone jack.
2 . Line out Level Pot
Controls the volume level sent to the Line Output XLRs.
3 . Power Indicator
Bi-colour LED indicates the power source being used:
• Green: Power over Ethernet (PoE)
• Red:
External DC supply
4 . Rednet network status Indicator
Tri-colour LED indicates the network status:
• Red (flashing) – Device is attempting to identify a network
• Red/Green (flashing) – Device is trying to lock to an identified network
• Green – Device is locked to the network and is capable of passing audio
InstALLAtIon GUIDe

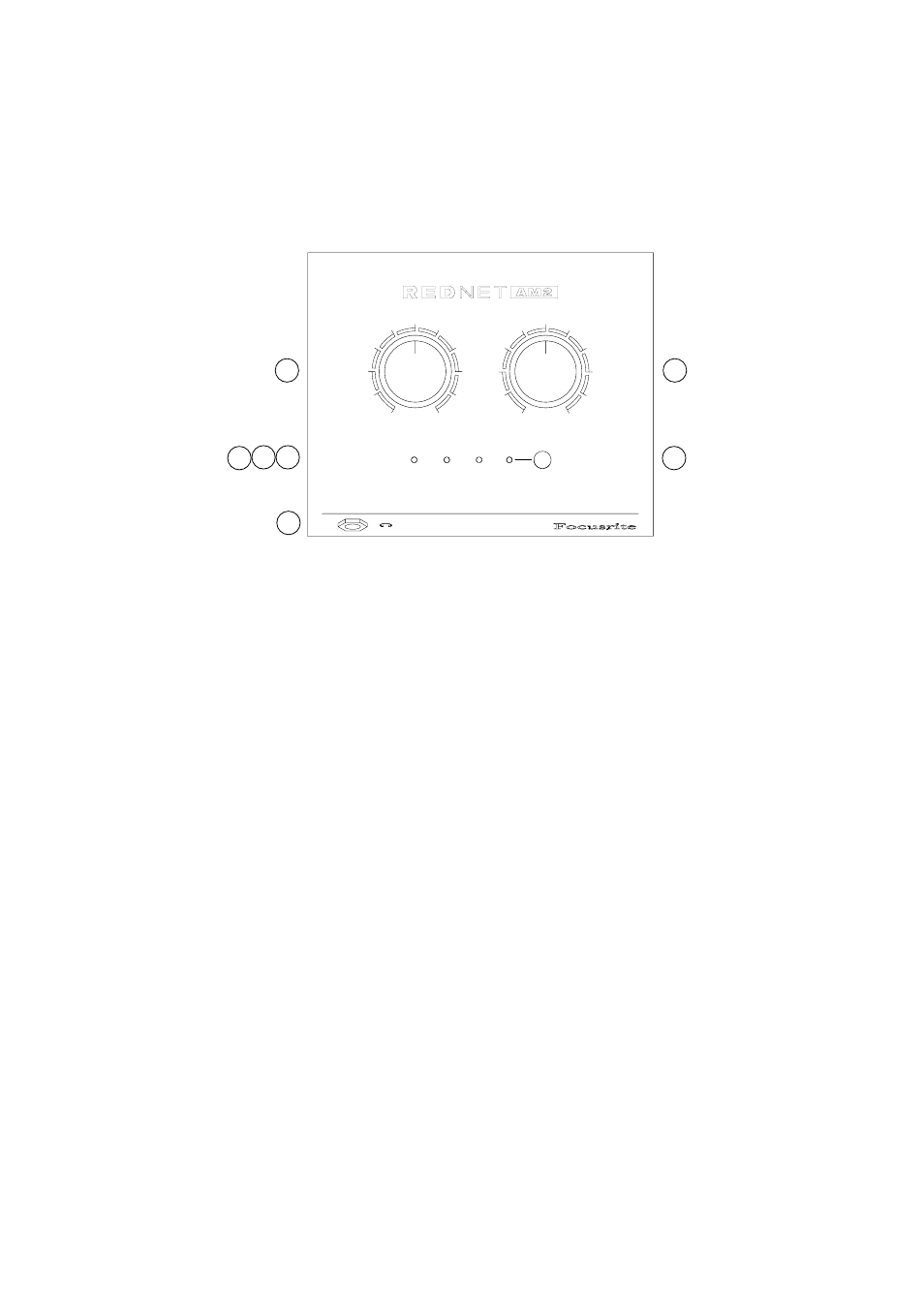

Rednet AM2 Connections and features
top Panel
HEADPHONE LINE OUT
MUTE SIGNAL NETWORK POWER
0 10 0 10
1
6 5
7
4 3
2
