6
5 . signal Level Indicator
Tri-colour LED indicates the highest signal level of the network receivers:
• Green: Signal present (illuminates at -42 dBFS)
• Orange: -6 dBFS
• Red:
0 dBFS
ID Indication – When the RedNet Control or Dante Controller applications send an ID command to the RedNet
AM2 unit, the
Network (4) and Signal (5) LEDs will cycle through green–orange–red states for 10 seconds.
6 . Line out Mute / Reverse ID switch
Press to mute the line output XLRs – the LED illuminates red when mute is active.
Press-and-hold the Mute button for 3 seconds to ‘push’ Reverse ID to the RedNet Control
application.
7 . Headphone Input
Standard 1/4” stereo Jack for headphones.
HEADPHONE LINE OUT
MUTE SIGNAL NETWORK POWER
0 10 0 10
6
7

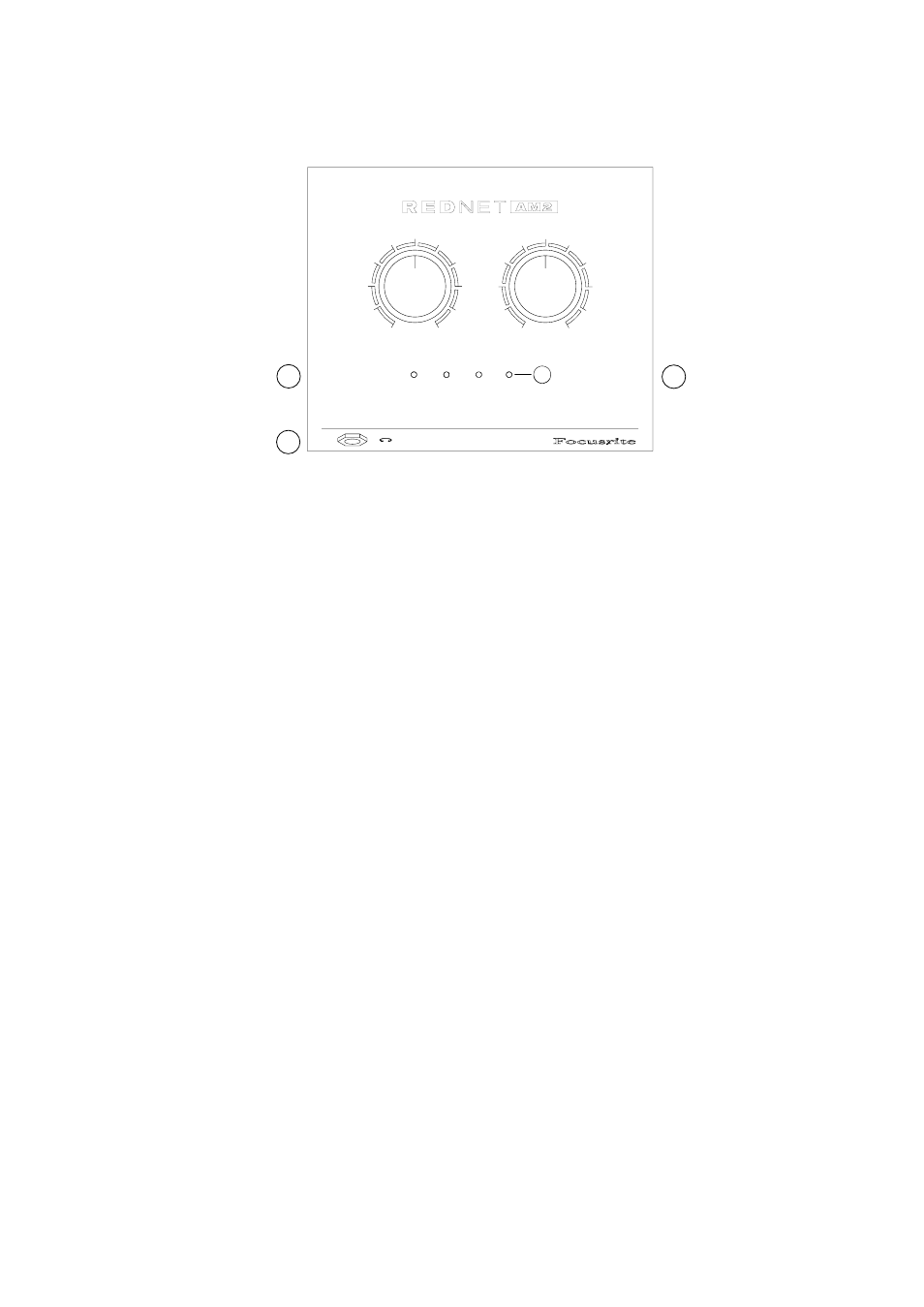

top Panel . . . Continued
5
