Focusrite RedNet AM2 Stereo Dante Headphone Amplifier and Line-Out Interface - Manual (Page 7)

7

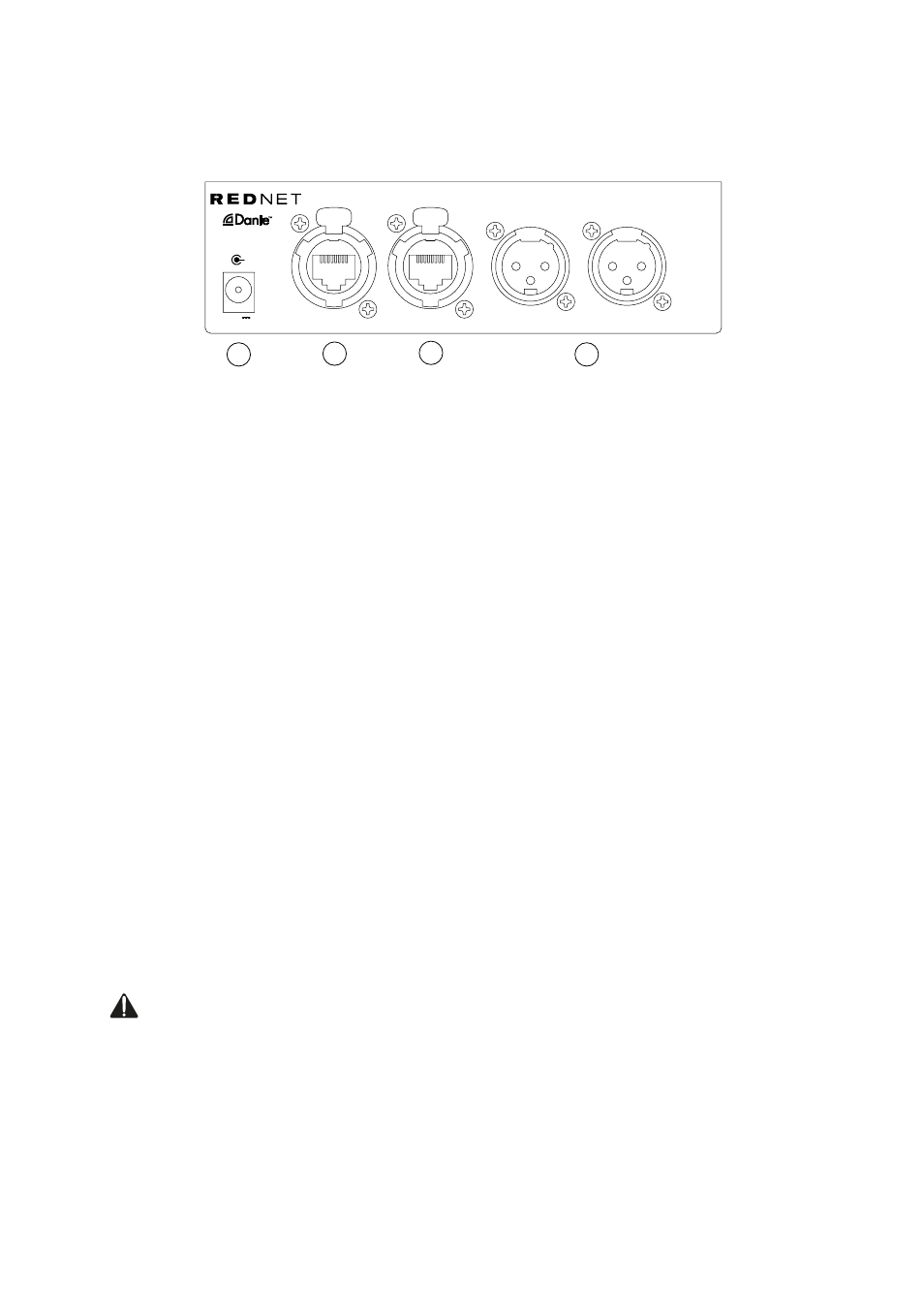

Rear Panel
1 . network Port 1 / Primary Power Input*
RJ45 [etherCON] connector for the Dante network. Use standard Cat 5e or Cat 6 network
cables to connect RedNet AM2 to an Ethernet network switch.
Power over Ethernet (PoE) can be used to power the RedNet AM2. Connect an appropriately
powered Ethernet cable to network port 1.
2 . network Port 2
Second RJ45 [etherCON] network port which can be used to daisy-chain additional devices.
This port does not accept PoE input and does not pass power out.
This port cannot be used as the secondary connection on redundant networks – network ports 1 and 2 always
function as a 2-port switch.
3 . secondary Power Input*
DC input for use where Power-over-Ethernet (PoE) is not available. Can be used in conjunction
with PoE.
When both power supplies are available, PoE will be the default supply.
4 . Line out xLRs
Two balanced output channels which can, for example, be used for monitor loudspeakers.
(Passive speakers will require external amplification.)
*For health and safety reasons, do not power-up RedNet AM2 while monitoring through headphones.
Refer to the Appendix on page 12 for connector pinouts.
NETWORK
PUSH PUSH I 2
LINE OUT
2 I
PoE I2V DC IA
- +
1 3 4 2
