Features (cont.)
14. USB/SD button – Use this button to toggle between the USB and SD inputs.
15. PREVIOUS button – Use this button to go to the previous track or scan through the current
track.
16. NEXT button – Use this button to go to the next track or scan through the current track.
17. RECORD button – Use this button to enter record mode and start recording. During
recording, this button can be used to pause playback. (see Operations section for instructions
on recording)
18. STOP button – Use this button to stop recording/playback.
19. PLAY/PAUSE button – Use this button to start and pause playback.
20. A/B OUTPUT switch – Use this switch to toggle side A, side B, and MIXED output to the MAIN
OUTPUT jacks. (see Getting Connected section for instruction on selecting output).
21. HEADPHONE jack (1/4”) – Connect headphones to this jack. Jack monitors the output set by
the A/B output switch.
22. HEADPHONE VOLUME control – Use this control to increase/decrease the volume to
connected headphones
3 4 5 6 7 8
9
12 20 13 14
10 11
1
2 15 16 17 18 19 21
22

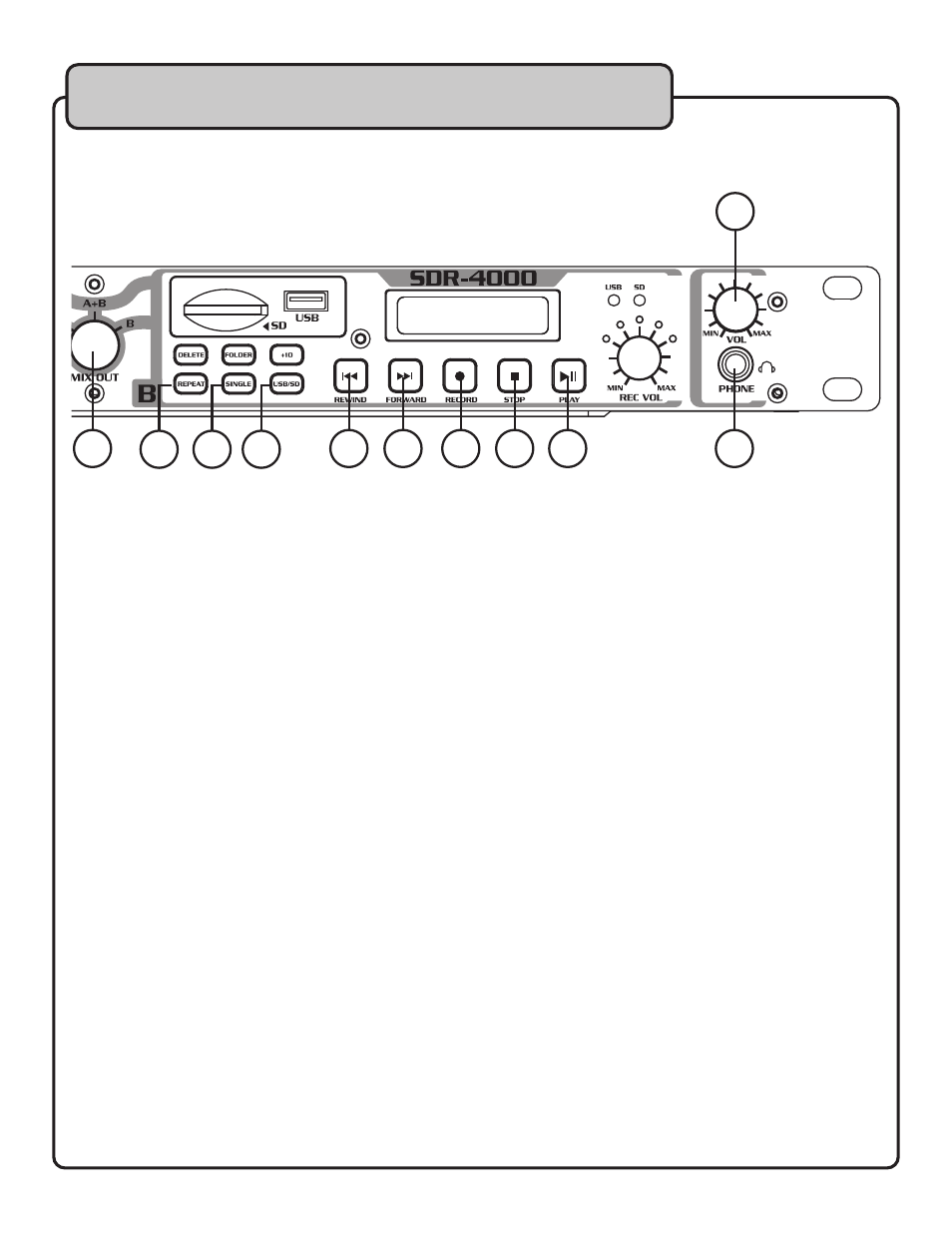

Front Panel:
