VIVOTEK
User's Manual - 133
■ Passive mode
Most firewalls do not accept new connections initiated from external requests. If the FTP server
supports passive mode, select this option to enable passive mode FTP and allow data transmission to
pass through the firewall.

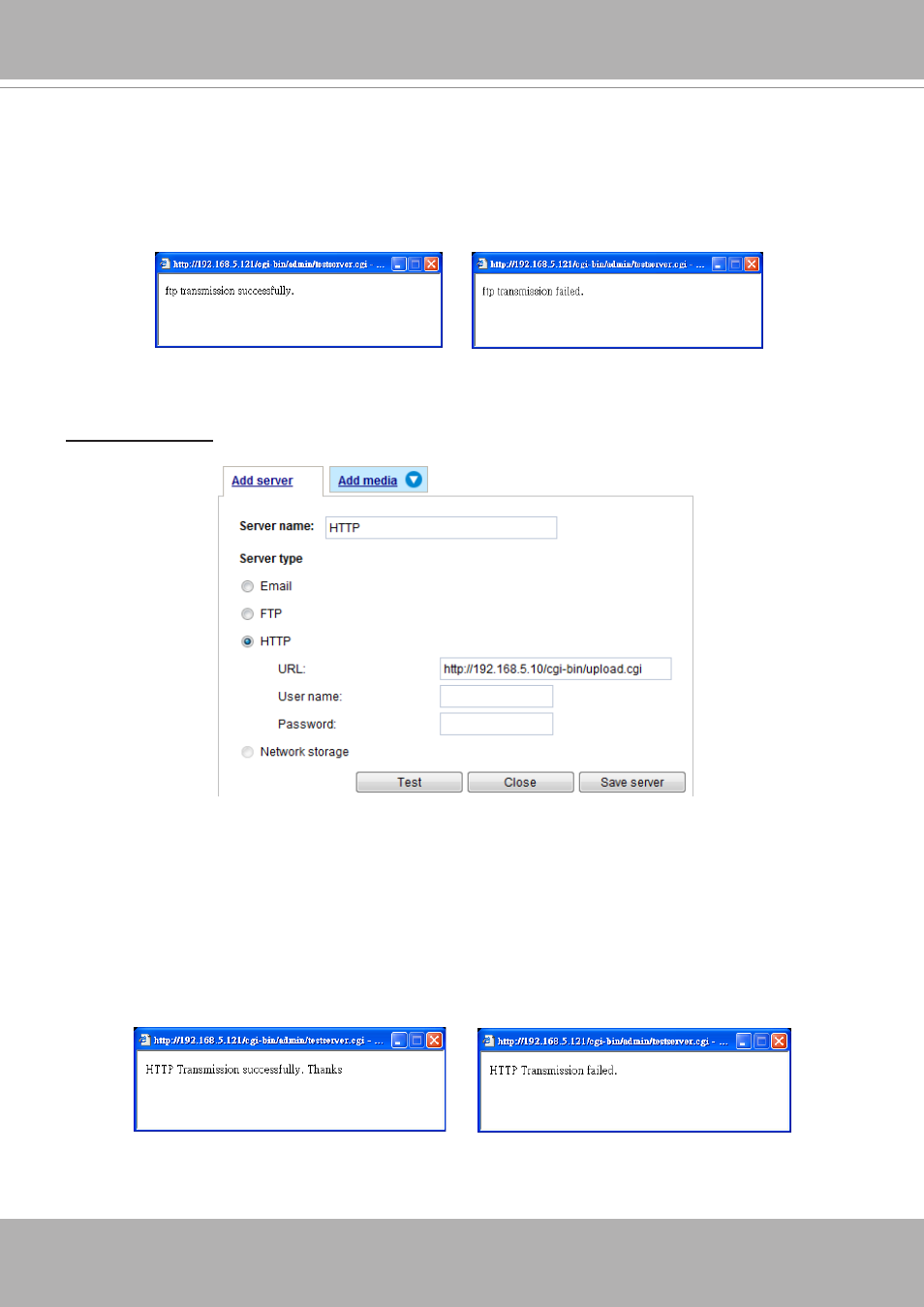

To verify if the FTP settings are correctly configured, click Test . The result will be shown in a pop-up
window as shown below. If successful, you will also receive a test.txt file on the FTP server.
Click Save server to enable the settings, then click Close to exit the Add server page.
Server type - HTTP
Select to send the media files to an HTTP server when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.
To verify if the HTTP settings are correctly configured, click Test . The result will be shown in a pop-up
window as below. If successful, you will receive a test.txt file on the HTTP server.
Click Save server to enable the settings and click Close to exit the Add server page.
